DIN2269 Steel Pin Gauges/pin Gages/pin Plug Gages

Yukai Precision Mold Co., Ltd. Verified Business License
DIN2269 Steel Pin Gauges/pin Gages/pin Plug Gages thumbnail-1
DIN2269 Steel Pin Gauges/pin Gages/pin Plug Gages thumbnail-2
DIN2269 Steel Pin Gauges/pin Gages/pin Plug Gages thumbnail-3
DIN2269 Steel Pin Gauges/pin Gages/pin Plug Gages thumbnail-4
DIN2269 Steel Pin Gauges/pin Gages/pin Plug Gages thumbnail-5
DIN2269 Steel Pin Gauges/pin Gages/pin Plug Gages thumbnail-6
DIN2269 Steel Pin Gauges/pin Gages/pin Plug Gages photo-1
DIN2269 Steel Pin Gauges/pin Gages/pin Plug Gages photo-2
DIN2269 Steel Pin Gauges/pin Gages/pin Plug Gages photo-3
DIN2269 Steel Pin Gauges/pin Gages/pin Plug Gages photo-4
DIN2269 Steel Pin Gauges/pin Gages/pin Plug Gages photo-5
DIN2269 Steel Pin Gauges/pin Gages/pin Plug Gages photo-6
US$ 2.5 - 10 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
DANNY, MLK
Model Number:
DIN2269, DIN2269
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name DANNY, MLK
Model Number DIN2269, DIN2269

pin plug gauges

Specifications

Size

(mm)

Step

(mm)

Length

(mm)

Tolerance

(µm)

Roundness/

Cylidricity

(µm)

 Hardness

(HV)



0.100~0.199



 0.01

40

±0.3

0.3

over

650





0.200~0.999



 0.01

40

±0.3

0.3

 over 650



1.000~7.000



 0.01

50

±0.3

0.3

 over 650



 7.001~7.010



 0.01

50

±0.3

0.3

 over 650



7.011~10.000



 0.01

50

±0.5

0.5

over

650







PIN GAUGE



1.Gauges:pin gauge




2.Material:steel , ceramic




3.Type:Various types



ceramic pin gauge.precision finishing. Good price with high quality.
Special steel, hardened and finely ground

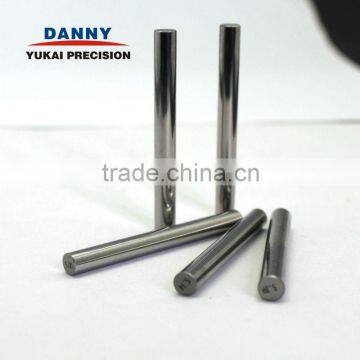

DIN2269 steel pin gauges/pin gages/pin plug gages



PIN GAUGE

Pin Gauge is used to check the position,size of hole, distance between two hole,and the deep of hole.
It is necessary instrument for checking precision cast.

Pin gauge is widespread used for electronic tablet, circuit board, mold, prescision mechine, and so on.


Measuring Pin Set



Special steel, hardened and finely ground


without Handle, DIN 2269


Contents: 41 Measuring Pins


Diameter-Range: 1,0 - 5,0 mm


Steps: 0,1 mm


Tolerance +/- 1 µm


Lenght: 70 mm



SIZE:Φ6.0*50mm



standard:DIN2269

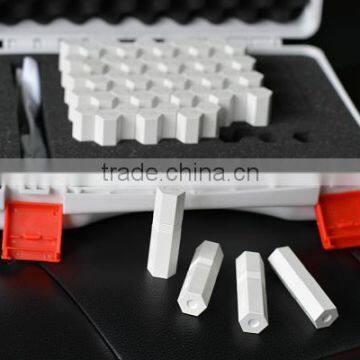

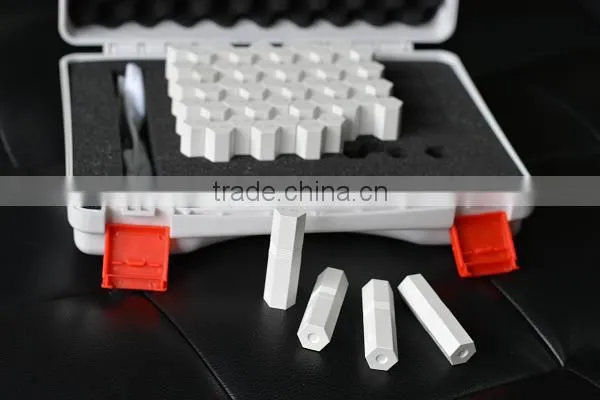

ceramic pin gages



Measuring Pin gauge set EH,EL,ER Japanese brand EISEN
Roundness: 0.3 micro meter

DIN2269 steel pin gauges/pin gages/pin plug gages



 Inspection



DIN2269 steel pin gauges/pin gages/pin plug gages





 Outer package of Pin Gauge



DIN2269 steel pin gauges/pin gages/pin plug gages



Teamwork of Yukai



DIN2269 steel pin gauges/pin gages/pin plug gages



DIN2269 steel pin gauges/pin gages/pin plug gages





Foreign customers



DIN2269 steel pin gauges/pin gages/pin plug gages



Certificate of Yukai



DIN2269 steel pin gauges/pin gages/pin plug gagesDIN2269 steel pin gauges/pin gages/pin plug gages
