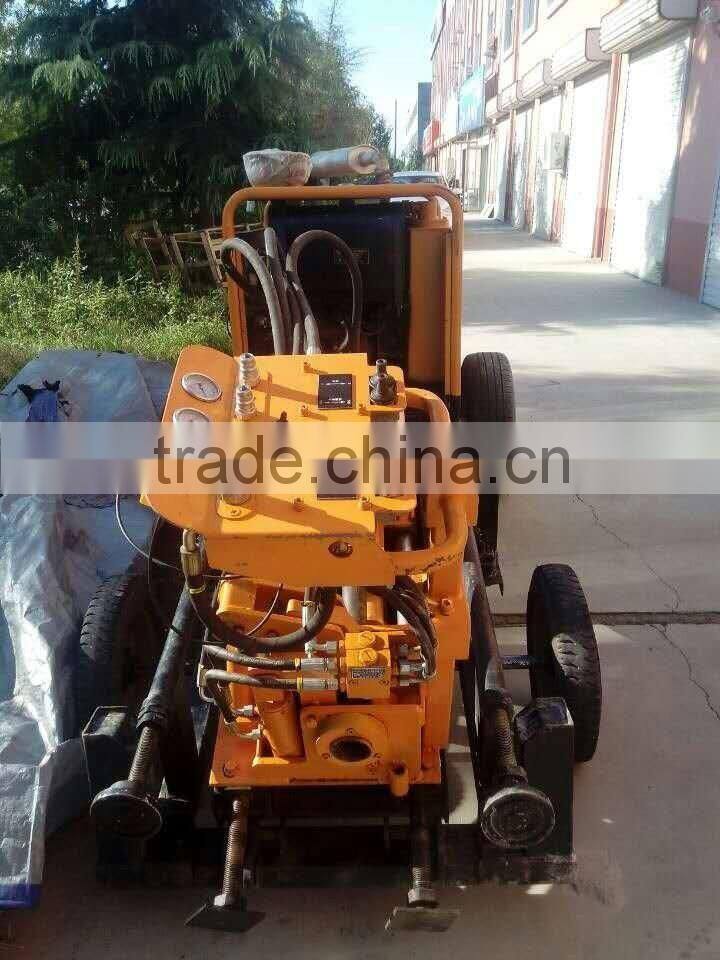

HDD machine DFM1504B for sale

FOB Price

USD $1 - $30,000 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Lian yun gang port
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:	Jiangsu, China	Brand Name:	zhongkai	Model Number:	DFM1504B
After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

50KN Underground cable laying HDD machine DFM1504B

TECHNICAL DATA

Engine power	KW/rpm	25.7/2350
Max. thrust force	KN	70
Max. pullback force	KN	50
Max. torque	N.M	1300
Max. rotary speed	rpm	100
Max. moving speed of power head	M/min	14.5
Length of drill rod	M	0.5
Diameter of drill rod	mm	Φ50
Incidence angle	°	0~10
Climbing capacity	°	N/A
Dimension (LWH)	mm	1240x960x1100 (with stand) 1180x470x970 (without stand)
Weight	T	1.4
Max. mud pump flow	L/min	40

50KN Underground cable laying HDD machine DFM1504B is special designed for the pipeline installation in the telecom wells.

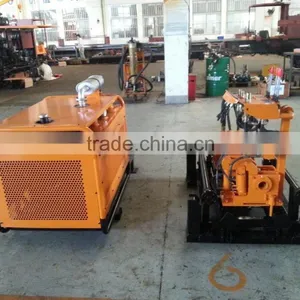

In order to suit for the narrow space, this machine is designed in three parts: main machine, power station and water pump.

It is the smallest horizontal directional machine in China.

In uniform or mixed earth, it could drill cross 80 meters long and 0.3 meter diameter pipeline.

Specialty

A.Main machine

50KN Underground cable laying HDD machine DFM1504B is designed as a mini HDD machine with a dimension of 1180*470*970mm

B.Power station

The power station equipped WUXI KAMA engine.This part is connected with the main machine through the pipelines for hydraulic oil.

C.The working table

The main machine is designed as seperatable.The operation table can work as another part on the ground which enable the operator operate the machine on the ground not in the well.

D.The pull push system

The pull push system equipped cylinder groups.The designation makes DFM1504B the smallest machine so that it can work in narrow space.

E.Mud pump

50KN Underground cable laying HDD machine DFM1504B
