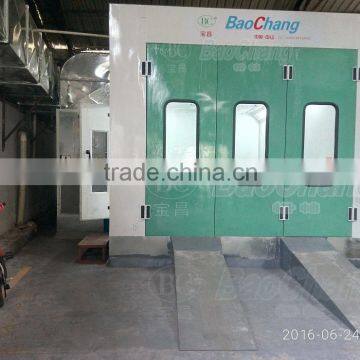

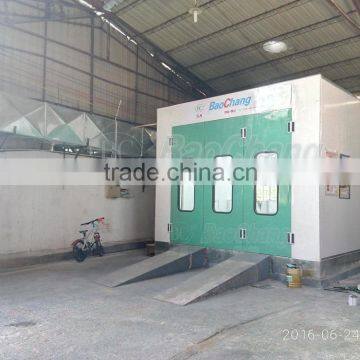

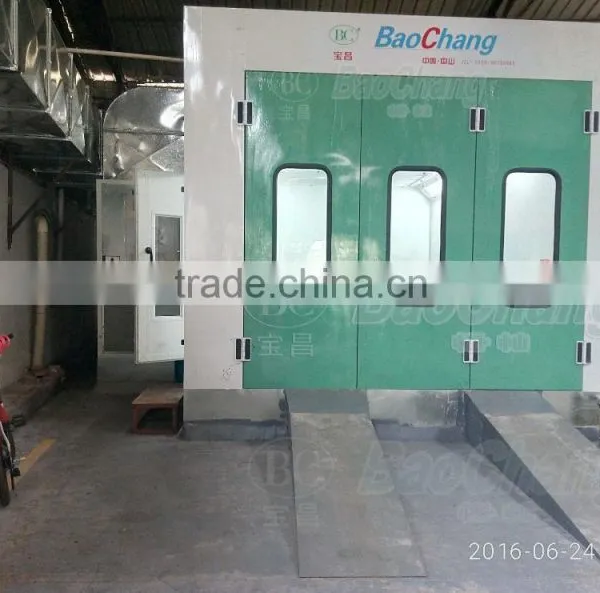

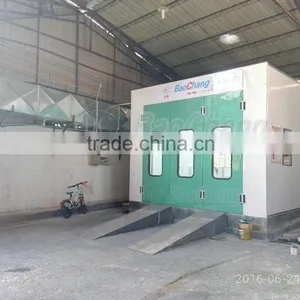

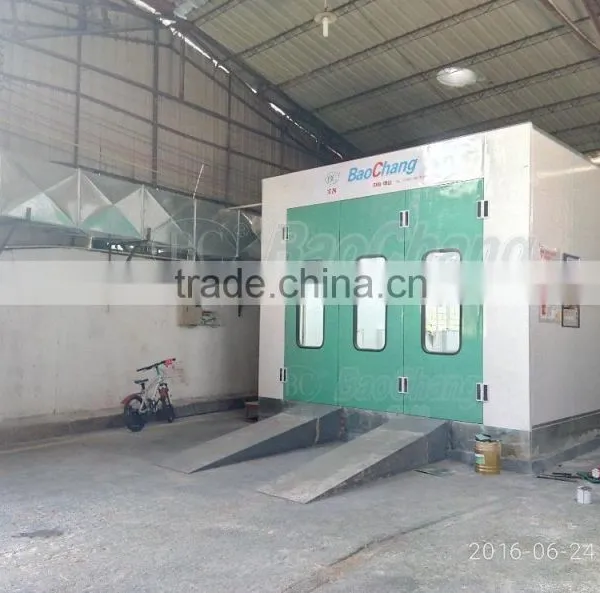

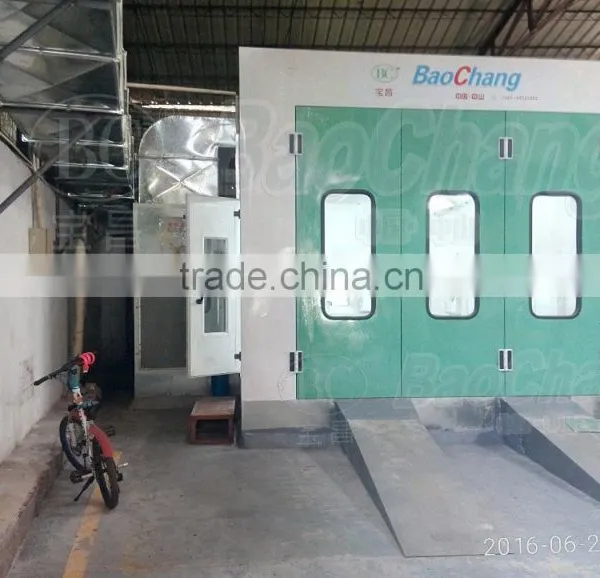

High quality low price car/furniture spray booth car paint booth baking booth C-11

FOB Price

USD $5,500 - $8,000 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port FOB ZHUHAI
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Power:	9KW	External Size:	705053003250mm	Internal Size:	690039002700 MM
Voltage:	380V/ 3PH/ 50HZ	Certification:	CE	Disc Dia.:	6.9--3.9--2.7
No Load Speed:	970RPM	Place of Origin:	Guangdong, China	Brand Name:	BaoChang
Model Number:	C-11

Product Description

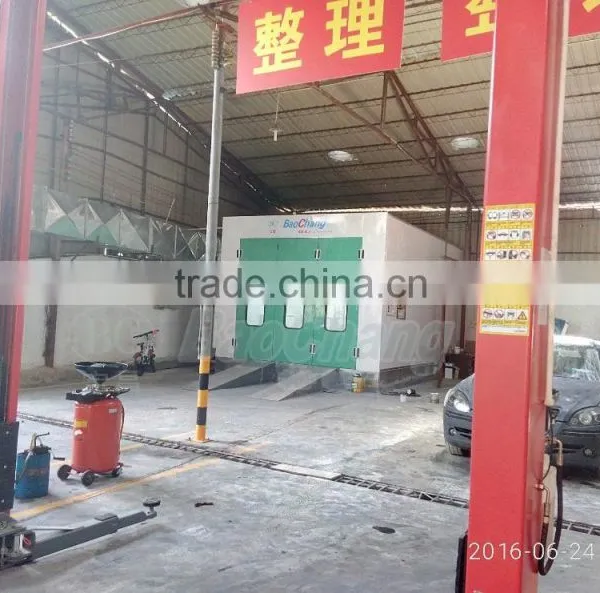

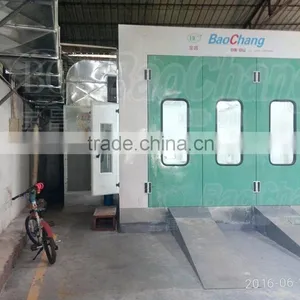

Spray booth used car spray booth car paint booth baking booth cabin spray room mixing room prep room

Packing size: 17CBM. 1*40HQ can load 4sets.
Production time: Within 10--20days.
Room body	Dimension	Inside Dimension:L7000×W(4000+1255)×H3505(MM) Outside Dimension:L6900×W3900×H2700(MM)
	Wall Panels	Total thickness of EPS and powder-painted steel plate wall is 50MM. Powder-painted steel plate is 0.376MM thickness.
	Basement and floor	Steel assemble, height 330MM, 2lines grills and 3lines indented/diamond plates.
	Driving ramp	2PCS diamond plate 600MM width for PC.
	Personal door	1-fold with sight window, pressure lock, size: 680×2000(W×H).

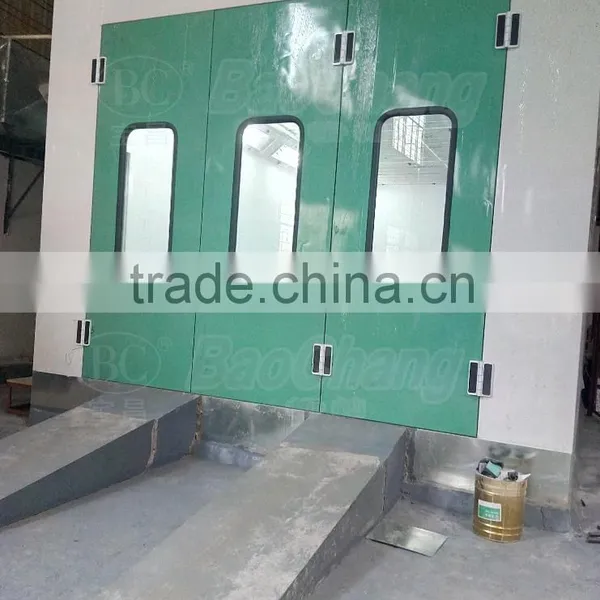

	Main door	3-fold with sight windows, door without aluminum frame, size:3000×2700 (W×H)
Heating system	Frame	Sheet metal forming with powder spray process,inside galvanized board and fire-resistance material,outside white color plate
	Intake fan	1set 7.5KW European type professional turbo fan, air capacity: 25000M³/H*2PCS, full pressure 800Pa, turning speed: 970RPM.
	Exhaust fan	Optional.
	Exhaust pipe	4M straight pipe with elbows.
	Exhaust vent control damper	1SET, manual VCD
	Smoke venting pipe	4M straight pipe with elbows.
	Air damper	Cylinder and connecting rod driving system to transfer spray to baking paint freely
	Burner	RIELLO/G20, Max Heating Productivity: 200000KCAL/H
	Heat exchanger	Heat-resistant stainless steel heat exchanger, steel thickness 2.0MM SUS304 good quality stainless steel, can automatically start fire or shup up according to spray booth inner set temperature, to make sure short time achieve temperature rising require, Maximum working temperature: 60~80℃
Filter system	Ceiling filter	6SETS filter; holding net installation model; Holder is made by section steel and with surface powder spray treatment. air filter efficiency:≥95%
	Floor filter	2SETS, installed horizontally
	Prefilter	2SETS.
Lighting system	Ceiling light	8UNITS×3PCS×28W=24PCS×28W, new technology T5 LED tube, every PC can be equip to a normal T8 60W PC lighting bright. Room illumination≥1000LUX.
Lighting system	Side light	Optional.
Control system	Electric cabinet	Main components imported are good quality; with overheat, overload, phase-absence protecting; timer, spraying, baking, emergency stop, failure warning, hour meter, motor starts directly.
	Constant temperature spraying	With constant temperature spraying paint function
	Main power	9KW, 3PH, 380V, 50Hz
