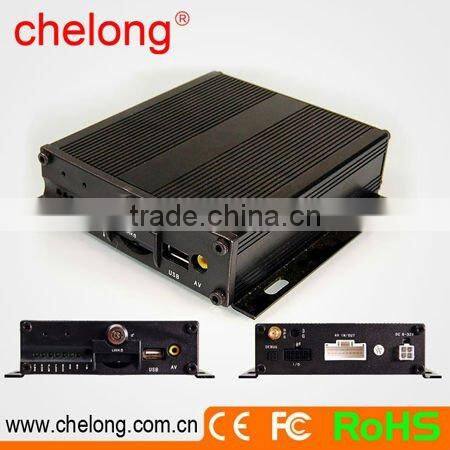

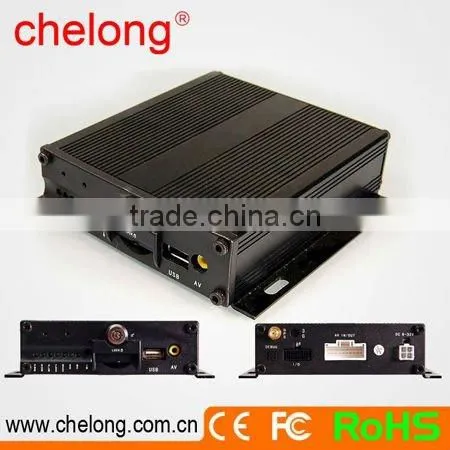

4 Channel car SD card recorder

Name: 4 Channel car SD card recorder
Brand: minieyes or your logo
Availability: InStock

FOB Price

USD $10 - $100 / Piece

10 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

1.car SD card recorder
2.GPS tracking H.264
3.Single/ four-picture view
4.CE FCC OEM ODM
5.ISO9001 1year warranty

4 Channel car SD card recorder
H.264 compression for high video quality.
Main Processor :	Hi3512
Operating System :	Embedded Linux operating system
System Resource :	4-channel real-time recording simultaneously
Video Standard :	PAL, NTSC
Image Compression :	H.264
Audio Compression :	ADPCM
Recording Mode :	Manual, timing, alarm, motion detection.
Video Search :	Time search, event search, channel search
Backup Mode :	USB backup
Video Input:	4ch aerial port
Video Output:	1ch aerial port, 1ch lotus port
Audio Input :	4ch aerial port
Audio Output :	1ch aerial port
Monitoring Quality :	PAL: 720x576(D1)NTSC: 720x480(D1)
Playback Quality :	PAL: 352x288(CIF)NTSC: 352x240(CIF)
Image Control :	6-level adjustable
Motion Detection :	396(22×18) detection areas and multi-level sensitivity can be set
Picture Display :	Single-picture view, four-picture view
Recording Rate :	PAL: 25fps/second (adjustable) NTSC: 30fps/second (adjustable)
Recording Storage :	SD card
Local Playback :	1 channel, 4 channel playback
Alarm Input :	4 switching value
Storage Port :	1 SD port
USB Port :	1 USB2.0 port
Ignition Signal :	1
Power Supply :	DC 6V~36V
GPS tracking function	yes
