Home > Products > Reference Standard Meters > MDP2000A Reference standard meters (wide range)

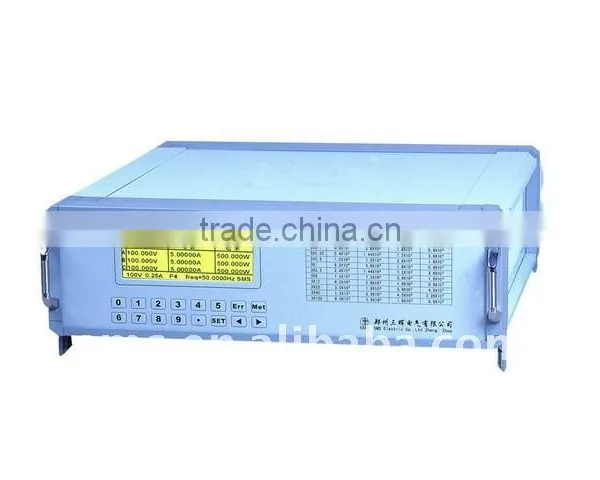

MDP2000A Reference standard meters (wide range)
- 10 Set / Sets per Month
- As per your request
- T/T
You May Like
Product Details
| Place of Origin | Henan, China | Brand Name | SMS | |
| Model Number | MDP2000A | Display Type | Digital Only | |
| Phase | Three Phase | Measuring Energy Range | 0.1-120A | |
| Accuracy Class | 0.02,0.05 |
Product Description
Specifications
1.Certificate: ISO 9001;2. Accuracy class: 0.02;
3. Wide current range:0.1--100A auto shift range
4. High stability
Three phase reference standard meter
1.Accuracy:0.02,0.05
2.Adopts latest DSP technology,intelligent processing
3.Complete digital technology,four quadrant reactive/active measurement.
4. With LCD display and error calculator
5.Three phase energy,voltage,current, power measurement and frequency,power factor,error
calculation etc functions.
6.RS232 communication port,PC software is available for more functions.
7. Phase measurement:0-359.99deg, adjusting resolution 0.01deg,accuracy class 0.05deg
8.Frequency measurement:45-65HZ resolution:0.01HZ
9.Voltage ranges:3*60V,3*100V,3*200V,3*400V, current ranges:0.1A,0.25A,0.5A,1.0A,2.5A,5A,10A,20A,40A,100A
10.Power consumption:less than 45w
11.Power supply:AC220V+/-10%,50+/-10%HZ
nnect mode: 1P2W,3P3W( active,reactive-true,reactive-accross,reactive-accross60/90),3P4W(active, reactive-true)
