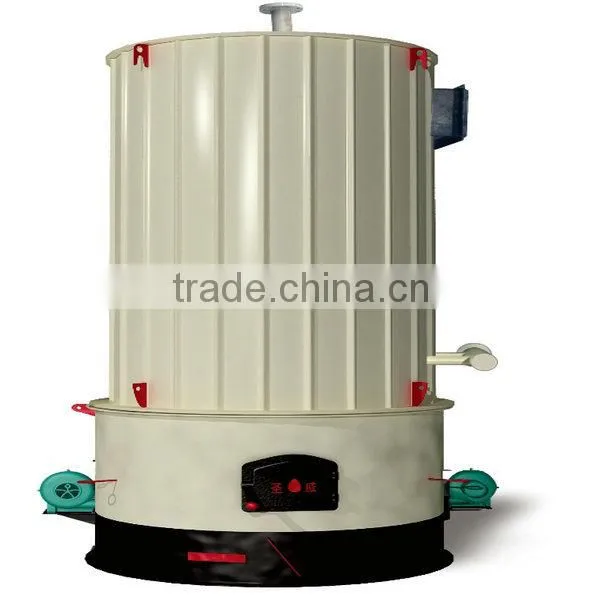

0.6M Kcal Thermal oil boiler
USD $10,000 - $35,000
/ Set
1 Set(Min.Order)
- 1200 Set / Sets per Month
- QINGDAO/SHANGHAI/TIANJIN
- T/T
You May Like
Product Details
| Condition: | New | Type: | Other, Force circulation | Usage: | Industrial |
| Structure: | Water Tube | Pressure: | Other, Low Pressure, 1.0MPa | Style: | Horizontal |
| Fuel: | Other, Coal-fired, Gas/Oil/Coal/Biomass | Place of Origin: | Shandong, China | Brand Name: | SW |
| Model Number: | YGL-0.7 | Output: | Other, Hot oil | Dimension(L*W*H): | 2090*4400 |
| Weight: | 6607KG | Certification: | ASME | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Organic Heat Transfer Material Heaters
Product Features
1.Higher working temperature shall be obtained under lower operating pressure.
2.Steady heating and accurate temperature adjustment shall be performed
3.Under each grade loading,the thermal efficiency shall remain in a high level
4.The boiler shall save power,water,as well as investment
Main Parameter List
| Boiler type | YGL0.24 | YGL0.35 | YGL0.45 | YGL0.7 | YGL0.95 | YGL1.2 | YGL1.4 | YGL1.8 | ||
| Capacity(104Kcal) | 20 | 30 | 40 | 60 | 80 | 100 | 120 | 160 | ||
| Thermal efficiency(%) | 83 | 83 | 83 | 83 | 83 | 83 | 83 | 83 | ||
| Working pressure(MPa) | 1 | 1 | 1 | 1 | 0.7 | 0.7 | 1 | 1 | ||
| Coal consumption(kg/h) | 53 | 61.2 | 82.9 | 145 | 228.8 | 315 | 320 | 380 | ||
| Heat surface area(m2) | 23 | 48.28 | 55 | 63 | 74.3 | 74.3 | 86.4 | 97 | ||
| Working temperature(°c) | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | ||
| Oil capacity in furnace(m3) | 0.25 | 0.38 | 0.60 | 0.80 | 0.86 | 0.90 | 0.95 | 1.26 | ||
| Circulate oil volume(m3) | 16.7 | 23.8 | 40 | 51.9 | 55.3 | 69.89 | 81.5 | 106 | ||
| Size(mm) | &1770*2760 | &1950*3360 | &2090*3790 | &2090*4440 | &2340*5050 | &2340*5080 | &2470*5340 | &2450*6080 | ||
| Total power(KW) | 6.6 | 10.25 | 15 | 23.6 | 26.25 | 41.25 | 43.95 | 46.5 | ||
| Connect pipe(MM) | 50 | 80 | 80 | 100 | 125 | 125 | 125 | 125 | ||
| Total weight(Kg) | 3630 | 4860 | 6305 | 6607 | 9165 | 9235 | 10212 | 11655 |
