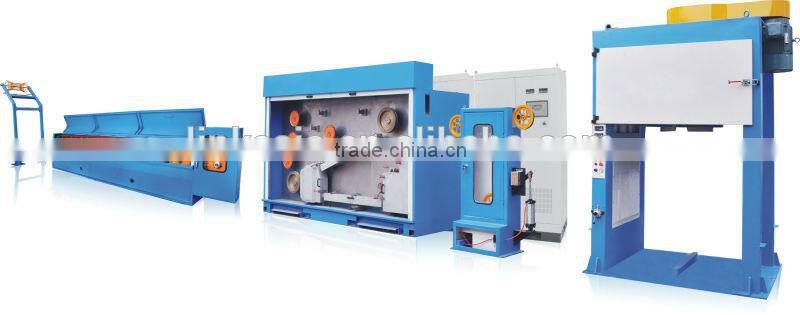

Copper/Aluminium Wire Drawing machine
With Online Annealer
Main technical parameter
| Name | DLT400/11D |
| Max.inlet diameter(mm) | 8.0mm |
| Oulet diameter range (mm) | 3.5-1.6mm |
| Max.number of dies | 11/Max |
| chanical speed(m/min) | 1200M/min |
| Main motor power(kw) | 185kw |
| Capstan motor power | 55kw |
| Gear and bearing lubrication way | the oil pump forces to give the oil |
| Mechanical elongation | 10%-40% |
| Annealing wheel diameter | 400mm |
| Annealing wheel number | **** |
| Max Annealing current | 5000A |
| Max Annealing volt | 60V |
| Annealing capacity | 400KVA |
| Omni installed power | 650KVA |
| The power source | 380V,50HZ |
| Overall size of produce line | 16000x7000x4000mm |
| Brake Method | Air Disc type |
| Dies ChangingMethod | Fast type |
We choose the best domestic delivery and handle goods carefully, using necessary protections to keep the machines away from unexpected damages. We ensure that clients will get their satisfying machines.
In order to guarantee the customers are able fully to operate the machine, if the customer need, we can help customer training, includes:
(1) Correct operating mode
(2) Correct maintenance way
(3) Remove simple problem
All the products of our company have already been widely used in metal products area.

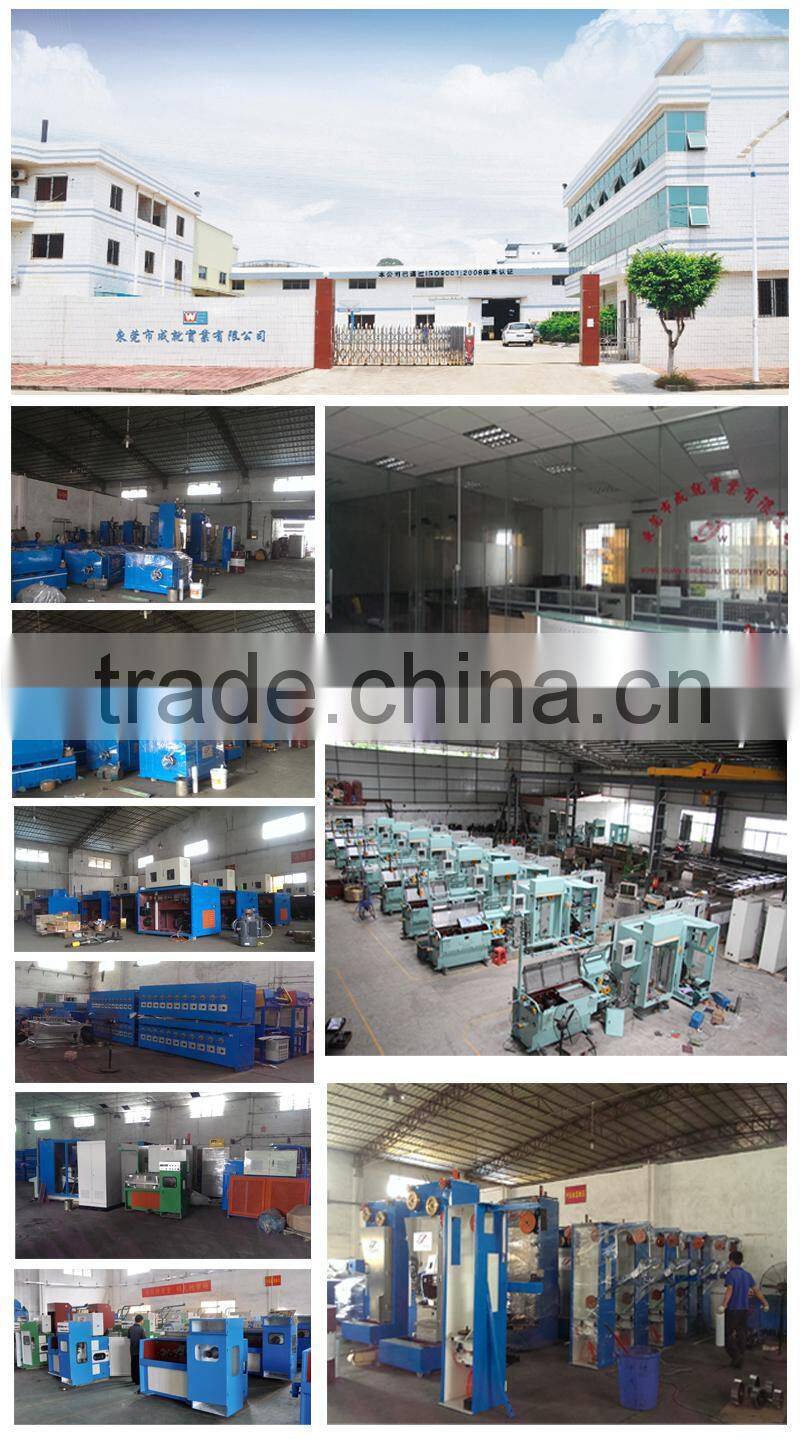

Our company is located in Humen, Dongguan, Guangdong province.
In wire drawing and annealing area, based on practical experience, modern technical, united management, perfect service after sale and good reputation, especially founded public’s praise and brand image in stainless steel drawing industry.
The company focuses on developing and designing wire drawing and annealing equipment. Improving the quality of the final products. Novel design and complete functions can offer various type on basis of wire Dia. for choice to meet customers’ needs and create more convenience and economic benefit.
In wire drawing manufacturer technique, our company break the traditional opinion, use corresponding machine to produce different martial wire instead of one machine drawing various material wire, achieve one martial, one dedicated machine. The drawing technique changed also depend on wire material. Meanwhile, in the wire annealing to increase efficient, combine the wire material requirement, formulate the new technique differ from previous to make the energy substantial drop. Our wire drawing machines and accessories sells to the Far East Asia, Middle East, Africa, India and Egypt.
At 2012 SHANGHAI WIRE & TUBE EXHIBITION
