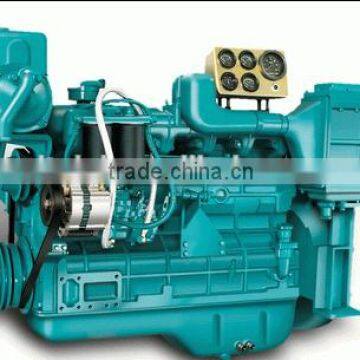

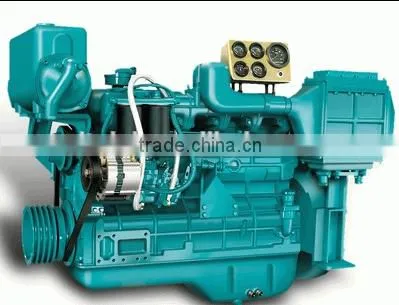

hot sale ! yuchai marine diesel engines YC6B/YC6J

Name: hot sale ! yuchai marine diesel engines YC6B/YC6J
Brand: yuchai
Availability: InStock

FOB Price

USD $200 - $13,000 / Set

1 Set(Min.Order)

Supply Ability 300 Set / Sets per Month
Port XIAMEN/SHANGHAI Port
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:	Fujian, China	Brand Name:	yuchai	Model Number:	hot sale ! yuchai marine diesel engines YC6B/YC6J
Output Type:	AC Three Phase	Speed:	1500/1800 r/min	Frequency:	50/60Hz
Rated Power:	3-40/50-300KW	Rated Voltage:	400V/230	Rated Current:	5.4-135.3/90.2-541.5A

Product Description

hot sale ! yuchai marine diesel engines YC6B/YC6J !

Features & Benefits

ω-type combustion chamber technology and low inertia mini aperture injector improve fuel efficiency
Yuchai sealing technology in piston ring and valve oil seal reduces the lube oil consumption
High fuel efficiency and low maintenance cost
Compact size facilitates installation, maintenance and repair
Operator and nature friendly with low noise, rapid start ability and low emissions
Major overhaul period is more than 10000 hours
Good for medium size cargo ships and fishing vessels.

Techincal Specifications

Model	YC6B165C	YC6B165L-C20	YC6B150C	YC6B165L-C22	YC6B155C	YC6108ZLCA	YC6108ZCA	YC6108ZC	YC6108CA1	YC6B100-C20	YC6108CA
Type	Vertical, in-line, water-cooled, four stroke			Vertical, in-line, water-cooled, four stroke			Vertical, in-line, water-cooled, four stroke		Vertical, in-line, water-cooled, four stroke
Intake way	Turbo charging& inter-cooled			Turbo charging& inter-cooled			Turbo charged		Natural aspirated
No. of cylinders - Bore × Stroke (mm)	6-108×125			6-108×125			6-108×125		6-108×125
Displacement (L)	6.871			6.871			6.871		6.871
Compression ratio	17.5:1			17.5:1			17.5:1		17.5:1
Continuous power /speed (kW (Ps)/r/min)	120 (165)/2300	120 (165)/1800	110 (150)/1800	120 (165)/1500	112 (155)/1500	90 (123)/1500	103 (140)/2300	80 (109)/1500	82 (112)/2000	74 (100)/1800	63 (86)/1500
One-hour power/speed (kW (Ps)/r/min)	132 (180)/2374	132 (180)/1858	121 (165)/1858	132 (180)/1500	123.2 (170)/1500	99 (135)/1548	113.3 (155)/2374	88 (120)/1548	90.2 (125)/2065	81.4 (110)/1858	69.3 (95)/1548
Min. specific fuel consumption (g/kW·h)	≤198			≤198			≤198		≤200
Specific oil consumption (g/kW·h)	≤0.8			≤0.8			≤0.8		≤0.8
Crankshaft rotation direction (seen from power output end)	Anticlockwise			Anticlockwise			Anticlockwise		Anticlockwise
Starting way	Electrical			Electrical			Electrical		Electrical
Net weight (kg)	750			750			720		700
Overall dimensions (LxWxH) (mm)	1420×810×1020			1420×810×1020			1293×780×1198		1252×780×1075
Certificate	ZC,CCS			ZC,CCS			ZC,CCS		ZC,CCS
