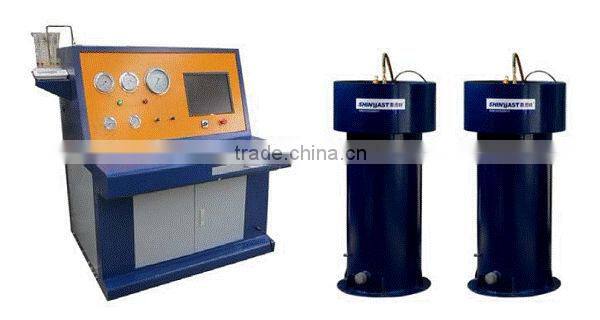

Hydrostatic Pressure Test Equipment for Gas Cylinder Supplier's Choice

Specifications

Hydraulic tester for seamless gas cylinder
external measurement
gas cylinder inspection machine
Certificate:ISO9001

Hydraulic tester for seamless gas cylinder (external measurement)



Main technical parameter:

Pump model	G64WL
Max pressure	48Mpa
Electronic balance	0-1500g (accuracy 0.1g)
Pressure sensor	0-70Mpa (accuracy 0.1g)
Test pressure	≤40Mpa
Air pressure	0.6-1.0Mpa
Work power	AC220V/50HZ
Control mode	PC/Manual
Applicable medium	Water
Flow	3L/Min



The machine is mainly used for cylinder pressure test and achievement of gas cylinder volume residual deformation rate.



Working principle: put the cylinder into a water jacket and boost the cylinder by high pressure pump. It will automatically dwell at set pressure and do pressure test on the cylinder. At the same time, the cylinder valume expands under test pressure and squeezed some water from water jacket into the measuring cup, and it is test cylinder volume deformation. The water is transferred to PC by water collection system, the elastic deformation disappears after cylinder relief of pressure, then the water flows back from measuring cup to water jacket.However, the remainning water in the measuring cup is still more than that before boosting the cylinder. The extra water volume is the test gas cylinder volume residual deformation. While the gas cylinder volume residual deformation rate is the ratio of the test gas cylinder volume residual deformation and all deformation.



Note:

ing pressure: 48Mpa,

The actual test pressure control accuracy:no less than 10 psig

The actual water level measurement accuracy: no less than 0.4.
