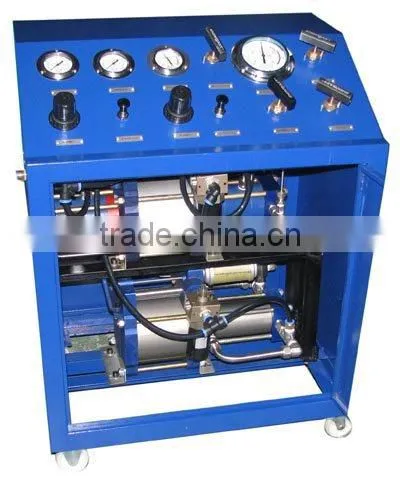

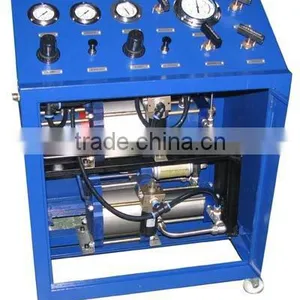

LBS170 Hydraulic Power Pack-SHINEEAST

Specifications

Power source:compressed air
Max.output pressure:170Mpa
Medium:oil,water,corrosive liquids
Certificate:ISO9001

                                                                   LBS170 Hydraulic Power Pack-SHINEEAST

• Hydraulic Power Packs include LBS130WL Model are complete hydraulic units ready for connection which are provided for generating operating pressures up to 100MPa.It is suitable for powering a variety of medium,such as oil, water or corrosive liquids.
• As the pressure will be generated by means of a pneumatically operated pump.The electric connection will not be necessary.
• To operate this system, the air driven liquid pump have to be equipped with the air control unit combined filter and water seperator, pressure-regulating valve,pressure control gauge as well as manual relieve valve.In this operation,the pump will be mounted to the stainless steel tank in the closed cabinet in a compact and space saving manner.Pressure gauges, valves and pressure regulators will be fitted on panel.
• The desired operating pressure can be attained by adjusting the driving air pressure.When the driving air pressure and the output pressure reach the balance,the pump stops filling pressure and the output pressure stays at the preset value.
• This hydraulic unit can be used for all kinds of pressure testing and test tools for research and test institutes or for other functions requiring a determined pressure.



Key features

• Compact and rugged construction
• Not electromotive, but pneumatically powered- intrinsically safe operation and ex-proof
• Pneumatically powered of oil free compression and clean air .No contamination possible
• Simple controlling and regulating processes because of the compressed-air drive.
• High quality seal material , long seal life available
• Robust and reliable operation in hardest operating enviroment.For example,

the power pack will not be damaged through moist rooms, dust or higher temperatures

• No energy consumption after having reached the set final pressure
• Low cost of installation as simple design of components are reduced to a minimum



Applications

• Hydrostatic and pressure tests for valves, pipe and tubes, pressure vessles, pressure switches,tanks, hoses, pipes and tubing, pressure gauges, cylinders and etc.
• Hydrostatic and dynamic tests for aircraft components
• Calibration of pressure gauges and transducers
• Pressurization of pressure vessels for testing various components
• Emergency shutdown systems for oil and gas wells



Technical parameters



Type	LBS170WL
Air drive pressure	3-8bar
Max. outlet pressure (at air drive pressure of 8bar)	100Mpa
Generation of pressure	SHINEEAST air drive liquid pump
Pressure ratio	170:1
Air consumption	0.5-1.0 m3/min
Operating medium	Oil, water, non-corrosive liquids
Driving medium	Compressed air
Gas tank capacity	40L
Dimensions (W x D x H)	700x500x900mm
