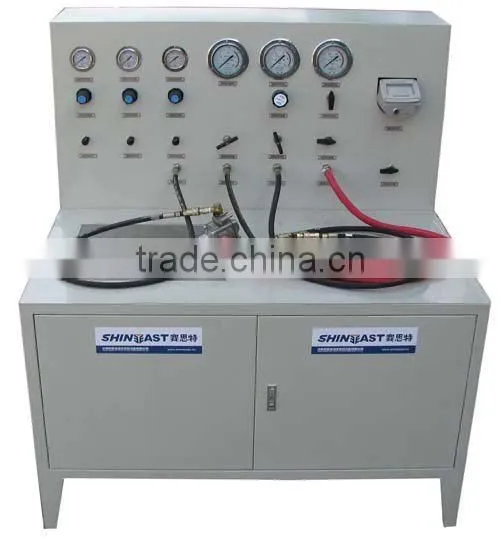

SPT05-40-AL Type Reducing Valve Test Bench

Specifications

Reducing Valve Test Bench
Compact,rugged
Fully pneumatic control
multifuntional tests available
Max. test pressure:32Mpa

• Pressure Reducing Valve test equipments involve Model SPT05-40-AL are specialized test rigs for pressure and flow tests upon CNG vehicle reducing valves.They feature compact and rugged construction.
• They use the compressed air ranges from 0.3 to 0.8MPa as the power source and the air driven gas boosters as the booster system and the whole system is provided with test pressures up to 32Mpa.
• They are available for multifunctional tests on leakage,pressure reducing stability,safety as well as outlet flowrate performances. The test bench can be fitted with flowmeter with digital Led display or connected to PC for curves printout.
• To operate this system, two gas boosters which pressure ratio of 40:1 with air reservoir and all accessories have to be connected.
• They are capable of ultimate output pressure by means of the manual pressure regulator valve.



Key feature and advantages

• Compact and rugged construction
• No electrical power and installations are required
• Simple design of components are reduced to a minimum
• Easy and reliable operation and  maintainance
• Low pressure pulsation rates with air reservoir
• Any air consumption peaks are compensated by the air reservoir
• Stable output pressure and continous flow available with air reservoir equipped
• Multifunctional test of leakage,pressure reducing stability,safety and outlet flowrate performances
• Widely used in vehicle industries in China



Technical parameters

Type	SPT05-40-AL
Air drive pressure	0.3-0.8MPa
Gas inlet pressure	0.1-1.0MPa
Max. gas outlet pressure	32MPa
Max. flow:  (at gas inlet pressure of 8bar)	248L/min
Air consumption	≥1.5 m3/min
Connection: Gas inlet	ZG1/4
Connection: Gas outlet	ZG1/4
Relief valve connection	High-pressure quick-connector
Pressure ratio	40:1
Generation of pressure	Gas boosters
Air reservoir capacity	12L
Driving medium	Compressed air
Outline dimension (W x D x H)	1300X1000X1450mm
