Burst Test Stand--Jinan, Shandong, CHINA

Specifications

Burst Test Bench
PC Control,on-time monitoring
Large applications available
Good quality,best price
ISO9001

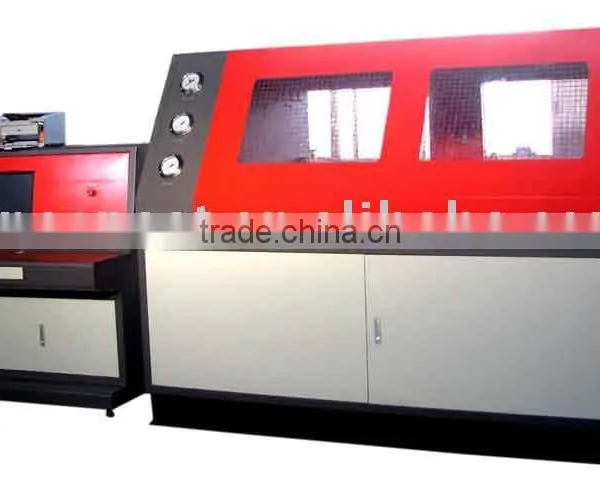

Burst Pressure Test Benches involves SBT175 Model are specialized test rigs to provide pressure and bursting testing for various hydraulic hoses, valves,vessels,tubes and other hydraulic products.They are powered by hydraulic pump motor and use Shineeast hydraulic pump for oil pressurization.Test pressure up to maximally 400Mpa.Test medium of Hydraulic oil ISO VG46 or ISO VG32.





                                                          Data  set  and  display  picture



Applications

• Pressure and burst testing of pressure, high pressure and ultra-high pressure hoses, hydraulic pressure hoses, expansion, radiator and steering booster hoses, aeronautic hoses and tubes/pipes, high pressure tubes/pipes
• leak and length variation testing of above components
• Burst pressure and leak testing of various pressure vessles

• Burst pressure testing of automobile pumpbrake system or components,power steering etc.



                                                 Real-time pressure-time curve picture



Key features and advantages

• Separate testing and driven system. Available for easily temperature control as well as powering a variety of mediums,such as oil,water or non-corrosive liquids
• Control units with PC, IPC and PLC
• Real-time monitoring as well as data recorded on high-speed sampling cards and also curves printing
• Alarming at due time bursting and due point recording
• A variety of tooling fixtures meeting with different mounting method requirements
• Non-welded pipeline system
• Industrial control configuration software or on LABVIEW
• Leakage and length variation ctional tests available



Technical parameters

Type	SBT175
Maximum burst pressure	320Mpa
Number of the test pieces	1 pressure port
Pressure source	SHINEEAST hydraulic oil pump
Power source	Hydraulic pump motor
Test medium	Hydraulic oil ISO VG46 or ISO VG32
Control unit	IPC and PLC
Energy demand(Power supply)	220V
Dimensions of the test chamber (width x depth x height) approx.	1850 X1200X840mm
