5-50 kg Cheap solution fertilizer bagging machine
- 0 per Month
- Shanghai
- T/T
- Ecomonic Type 5-50kg semi-automatic bagging machine for sale
- T Semi-automatic Weighing & Packing Machine
- 2.5 KW New style Rotary Type full automatic bag juice filling machine
- CE Approval Rotary Type Automatic Premade popular pouch spout filling machine
- Multi-Function CE Approval Rotary Type Automatic premade doypack filling machine
- New style Rotary Type Automatic fruit shape juice pouch filling sealing packing machine
Product Details
Condition: | New | Application: | Chemical, Commodity, Food, Medical | Packaging Type: | Bags |
Packaging Material: | Paper, Plastic | Automatic Grade: | Semi-Automatic | Driven Type: | Electric |
Voltage: | AC 208-415V 50/60HZ | Power: | 2.25KW | Place of Origin: | China |
Brand Name: | Gloex Selected | Model Number: | C-812-PP108-BG-07 | Weight: | 600KG |
Dimension(L*W*H): | 4500*1500*2500 | Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Dear Valuable Customer

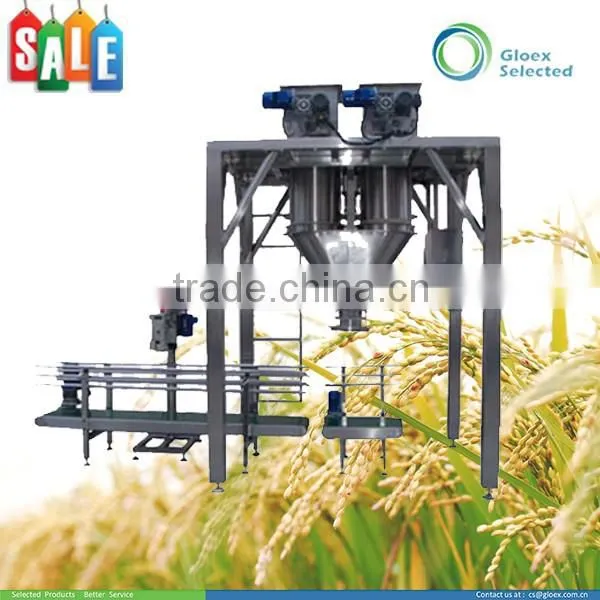

Sincerely thanks for browsing our products, we are supplying this Fertilizer Bagging Machine , it is also suiable for pack power or granule in a bag , from 5 kg to 50 kg . and with 3-12 bags packing speed.
Different from others , we are focusing to provide you cost and performance balance products, with proven technology and projects .
If you need other solutions like : you want to pack in a smaller volume, in a different container.Cilck the following links for more detail information
Powder & Granule Packing Solutions- Developed by Gloex Selected
Sachet Packing Solutions - Developed by Gloex Selected
What the machine can do ?
• Suitable for powder and granule weighing and filling. Such as rice, legume, milk powder, plastic granule, and other chemical raw materials etc.
What is the advantage of this machine ?
• Applying PLC controlled weighing and feeding devices, ensure the accuracy and stability
• Whole machine is made of stainless steel 304, except the structure, hence, suitable for chemical materials with corrosive characteristic.
• Changeable pneumatic bag clamming devices to adapt different bag size.
• Touch screen enable easy operation parameter setting up and error indicating.
How this machine to achieve high speed packing
• Optionally material feeding methods, double screw, double vibrating and double speed free dropping.
How to form a production line?
• Configure with conveyor , sewer or heat sealing machine etc can become complete packing line.
Following are the typical applications for this Weighing & Packing Machine.
Issue | Application Description |
Applicable Materials to be Packed | Suitable for powder and granule weighing and filling. Such as rice, legume, milk powder, plastic granule, and other chemical raw materials etc. |
Applicable Containers | Open mouth bags |
In order to ensure the quality of this Fertilizer Bagging Machine, we believe that the key components determine the preformance, therefore , we only select internation reputable components with the short list as below
No | Components | Material / Short List |
1 | Products Touching Parts | Stainless Steel 304 as the standard, Stainless Steel 316,316L at the Buyer’s option |
2 | Structure / Support | Carbon Steel or High Class Aluminum |
3 | Main Surface | Stainless Steel 304 |
4 | Programmable Logic Controller | Delta, Siemens, Mitsubishi, Panosonic |
5 | Touch Screen | Weinview, Siemens,Delta,Kinco, Panosonic |
6 | Stepper/Servo Motor | Teco, Delta, Panosonic,Leadshine |
7 | Frequency Convertor | Delta,Schneider,Leadshine |
8 | Key Electric Components | Schneider,Chint, Ls, Ark |
9 | Key Protection & Relay | Schneider |
10 | Cylinder, Filter | Airtac , SMC |
11 | Photocell Sensor | Autonics , Keyence,Leuze, Panosonic,Datalogic |
12 | Vacuum Sucker | Airtac, Sunx |
13 | Temperature Controller | Omoron |
Catalogue/1D-xxxxx | 1C-1 | 1C-2 | 1C-3 |
Weighing Method | Gross Weighing | Net Weighting | Net Weight |
Number of Weighing Hopper | 1 | 1 | 2 |
Filling Range ‘kg | 5-25/10-50 | 5-25/10-50 | 5-25/10-50 |
Filling Accuracy | 1) <25kg +/-50g 2) 25-50kg +/- 100g | 1) <25kg +/-50g 2) 25-50kg +/- 100g | 1) <25kg +/-50g 2) 25-50kg +/- 100g |
Filling Speed -bags/min | >=3 | >=6 | >=12 |
Power Requirement | AC208-415V 50/60Hz | AC208-415V 50/60Hz | AC208-415V 50/60Hz |
Power Consumption-KW | 2.25 | 2.5 | 3.1 |
Compress Air Required-Bar | 6 | 6 | 6 |
Compress Air Consumption-m3/min | 0.2 | 0.3 | 0.5 |
Approximate Weight -kg | 600 | 800 | 1300 |
Dimension ( ‘mm ) | 4500*1500*2500 | 4800*1500*3000 | 5300*2000*3800 |
Following documents are available, but not limited, to be provided upon the stage of purchasing
No | Document | Code | Description |
1 | Products Selection Guide | SG | To select or customize the suitable products for the clients upon the feedback of Selection Guide, which include project background, parameters and other client’s requirement |
2 | Products Profile | PP | To enable the clients understand the overview of the products, Covers sections of Basic Features, Application, Construction, Typical Products, Approvals, and Optional Features |
3 | Installation Instruction | IN | To explain the step of installation of the equipment, and include commissioning instruction as well |
4 | User Manual | UM | To cover the content of Operation & Maintenance and Trouble Shooting |
Customization Philosophy
The above Semi-automatic Fertilizer Bagging Machine demonstrating may not perfectly meet your requirements, our philosophy is to customize your real need, To minimizing idle capacity and function. To supply you performance and cost balanced products. Following are the factors shall be taken into account during customization:
• Automatic material loading;
• Automatic products conveying after filling
• Bag sewing or heating sealing devices
Selection Guide
Selection Guides are available for circulation, contact us to get products selection and customization support.
Statement
- The pictures demonstrating in this profile represent products of range, and subject to the newest or customized design
- Due to the huge number of documentation updating, the data indicated in this profile may not be updated timely, Please contact with our customer service for newest version.
- The features or functions appear in this profile subject to the additional description of quotation
