LDK Brand Ball Bearing UE series

Specifications

1)Can be assembled into the various housings
2)Material:Cast iron and stainless steel
3)Series:UE200,SUE00,UER200,SUER200

1.Spherical Bearing UC/NA Series

--UE204-212,

 --SUE204-212,

 --UER204-212,

--SUER204-212

 .



2.Special features

1) Material for chrome steel and stainless steel available

2)Low noise and high speed

3)Large load capacity

4)High quality and long life

5)OEM welcome



3.More details

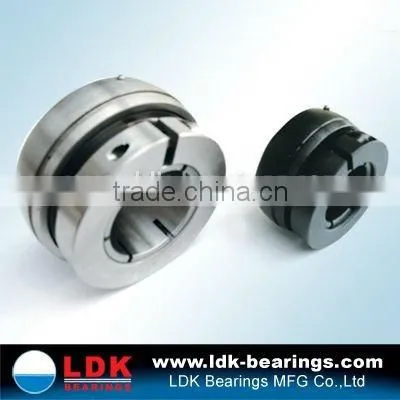

LDK’s ACCU-GRIP Concentric locking Insert Bearings.Designed for a quieter ,smoother and more efficient running under high radial loads and a true center line.

True Centerline

The inner race closes down on the shaft from 360 degrees all sides creating a true centerline resulting in even and constant balance, thus results in better operation and longer life..



reduce noise and vaibration

The uniform grip of the inner race to the shafts results in lower noise and vibration levels at high speeds



Qucik and Easy Installation

One step installation - only a single standard hex head cap screw - in one position.



Shaft protection
The concentric locking significantly reduces the chance of marring or damaging the shaft thus significantly reduce fretting corrosion. Especially for stainless ACCU-GRIP series, due to this feature, it will significantly reduce bacteria and thus a better choice for food & beverage etc industry which requires high Hygeia requirement.



More efficient fan balancing
Because the ACCU-GRIP Ball Bearing is totally concentric with the shaft, it will not induce vibration into the fan/blower system and will reduce the fan OEM*s trim balancing time for high speed applications. No 1 choice for HVAC industry.



Reduced shafting costs

The ACCU-GRIP Ball Bearing only requires commercial grade shafting tolerances. This can save approximately 40% in shafting costs versus turned, ground and polished shafting.

UE SERIES INSERT BEARINGS ARE INTERCHANGEABLE WITH SETSCREW AND ECCENTRIC LOCKING COLLAR TYPE INSERTS.

BEARING TYPE	LOCKING BY	DISADVANTAGE COMPARED TO UE TYPE
UC	SETSCREW	DAMAGE TO SHAFT,UN-UNIFORM LOCKING,NOT SUITABLE FOR HIGH SPEED ROTATION
NA	ECCENTRIC LOCKING COLLAR	NOT SUITABLE FOR HIGH SPEED AND REVERSE ROTATION
UK	ADAPTER SLEEVE	NEED TO SELECT A LARGER BORE SIZE BEARING AND NEED A SPANNER FOR FIXING.
UE SERIES INSERT BEARINGS COULD BE USED WITH BERAING HOUSING MADE OF CAST IRON,PRESSED STEEL,ALL STAINLESS AND THERMOPLASTIC





4.Company Introduction

1) Enterprise group combines industry with International trade

2) The 10th Year's Gold Supplier in Alibaba
3) Strict quality controll system with perfect facilities

4) Advanced production facilities

5) The abundant capability of R&D

6) High&New Tech enterprise,low carbon omission and environment friendly





5. For more details of our products,please visit:
