DPP-250H AL/PL Blister Packing Machine

FOB Price

USD $1 - $11,300 / Set

1 Set(Min.Order)

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

This machine is applied to Al-Pl, hard Al blister packing, such as capsules and tablets, sugar-coated tablets, small hard wares.

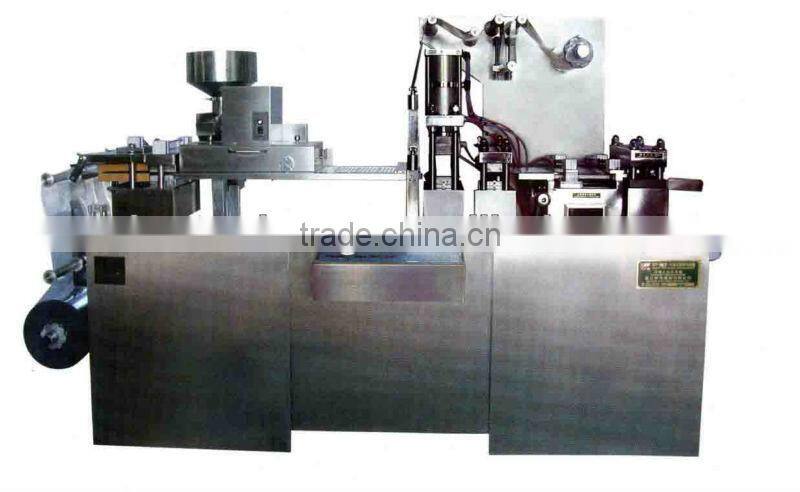

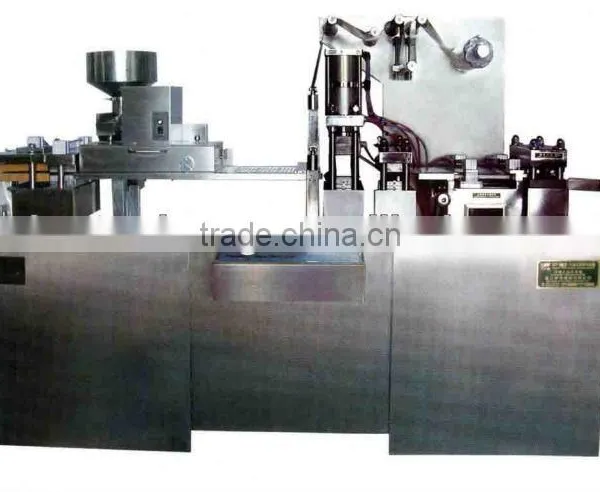

DPP-250H AL/PL Blister Packing Machine

Performance and Characters:

Variable Frequency Speed Regulating, PC Circuit Control Panel.

Adjustable travel adopts manipulation grip equipped with inching device, which has a accurate synchronization.

Vibrating-type feeder with full-automatic blanking process.

Mould spout location is convenient for replacing mould.

With air cushion heat-sealing; the upper and lower checkers endure the effect of heat sealing.

Main Technical Specifications:

Blanking Frequency	20-60times/min
Blanking Plate	4plates/time
Adjustable Scope of Travel	30-120mm
Packing Efficiency	4800-9600plates/hour up to 350,000-450,000Tablet/hour up to 300,000-450,000Capsule
Max Forming Area and Depth	24511218mm
Total Power Electric Source	Three-phrase Four wires
Total Power Electric Source	380v 50Hz 5.5kw
Specifications of Packing Material Medical	DVC 250*0.25(0.15-0.50)mm
Specifications of Packing Material Medical	PTD 250*0.025mm
Air-compressor	>=0.22m3/min (self-prepared)
Pressure	0.5-0.7MPa
Dimensions:	28008001900mm
Weight	1500Kg
