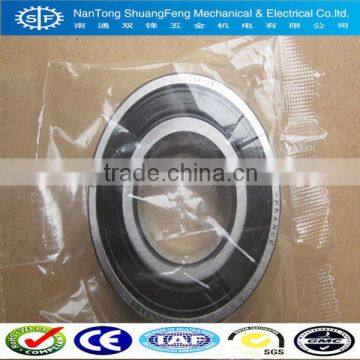

rear wheel hub bearing Ball Bearing 6306
- 50000 Piece / Pieces per Month
- shanghai or ningbo or qingdao
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Brand Name | NACHI | Bore Size | 30, | |
| Outside Diameter | 72, | Model Number | 6306 | |
| Precision Rating | p0 p6 p5 p4 | Seals Type | open | |
| Number of Row | Single Row | Place of Origin | Shanghai, China |
Product Description
Specifications
NACHI Bearing 63061.certification:CE/IAF/SGS
2.GMC supplier
3.more quality high-speed lower prices
4.Offer free samples
Deep Groove ball bearings are the most popular of all the ball bearing types because they are available in a wide variety of seal, shield and snap-ring arrangements.The bearing ring grooves are circular arcs made slightly larger than the radius of the ball.
| Bearing NO. | I.D | O.D | W | Load Rating (KN) | Steel Ball Parameter | Max Speed | ||||||
| d | D | B | Dynamic | Static | NO. | Size | Grease | Oil | ||||
| mm inch | mm inch | mm inch | Cr | Cor | mm | r/min | r/min | |||||
| 6300 | 10 | 0.3937 | 35 | 1.378 | 11 | 0.43307 | 8.2 | 3.5 | 11 | 2.381 | 23000 | 27000 |
| 6301 | 12 | 0.4724 | 37 | 1.45669 | 12 | 0.47244 | 9.7 | 4.2 | 12 | 2.381 | 19000 | / |
| 6302 | 15 | 0.5906 | 42 | 1.65354 | 13 | 0.51181 | 11.4 | 5.45 | 14 | 2.381 | 17000 | 21000 |
| 6303 | 17 | 0.6693 | 47 | 1.85039 | 14 | 0.55118 | 13.5 | 6.55 | 16 | 2.381 | 16000 | 19000 |
| 6304 | 20 | 0.7874 | 52 | 2.0424 | 15 | 0.59055 | 15.9 | 7.9 | 14 | 3.175 | 14000 | 17000 |
| 6305 | 25 | 0.9843 | 62 | 2.44094 | 17 | 0.62992 | 21.2 | 10.9 | 15 | 3.500 | 12000 | 14000 |
| 6306 | 30 | 1.1811 | 72 | 2.83464 | 19 | 0.74803 | 26.7 | 15 | 18 | 3.500 | 10000 | 12000 |
| 6307 | 35 | 1.378 | 80 | 3.1496 | 21 | 0.82677 | 33.5 | 19.1 | 15.3 | 3.500 | 8800 | 10000 |
| 6308 | 40 | 1.5748 | 90 | 3.5433 | 23 | 0.90551 | 40.5 | 24 | 22 | 3.500 | 6400 | / |
| 6309 | 45 | 1.7716 | 100 | 3.937 | 25 | 0.8425 | 53 | 32 | 22 | 3.969 | 7000 | 8200 |
| 6310 | 50 | 1.9685 | 110 | 4.3307 | 27 | 1.06299 | 62 | 38.5 | 24 | 3.969 | 5000 | / |
| 6311 | 55 | 2.16535 | 120 | 4.7244 | 29 | 1.14173 | 71.5 | 45 | / | / | 5800 | 6800 |
| 6312 | 60 | 2.3622 | 130 | 5.1181 | 31 | 1.22047 | 82 | 52 | / | / | 5400 | 6300 |
| 6313 | 65 | 2.55905 | 140 | 5.5118 | 33 | 1.29921 | 92.5 | 60 | / | / | 4900 | 5800 |
| 6314 | 70 | 2.7559 | 150 | 5.9055 | 35 | 1.37795 | 104 | 68 | / | / | 4600 | 5400 |
| 6315 | 75 | 2.95275 | 160 | 6.2992 | 37 | 1.45669 | 113 | 77 | / | / | 4300 | 5000 |
| 6316 | 80 | 3.1496 | 170 | 6.6929 | 39 | 1.53543 | 123 | 86.5 | / | / | 4000 | 4700 |
| 6317 | 85 | 3.34645 | 180 | 7.0866 | 41 | 1.61417 | 133 | 97 | / | / | 3800 | 4500 |
| 6318 | 90 | 3.5433 | 190 | 7.4803 | 43 | 1.69291 | 143 | 107 | / | / | 3600 | 4200 |
| 6319 | 95 | 3.74015 | 200 | 7.874 | 45 | 1.77165 | 153 | 119 | / | / | 3300 | 3900 |
| 6320 | 100 | 3.937 | 215 | 8.46455 | 47 | 1.85039 | 173 | 141 | / | / | 3200 | 3700 |
Payment terms:
1. 30% T/T In Advance, 70% T/T Against The Copy Of B/L
2. 100% L/C At Sight
3.as requested
