AC Dual sh Capacitor capacitor 50uf 450vac CE approval

FOB Price

USD $0.1 - $3 / Piece

1000 Pieces(Min.Order)

Supply Ability 120000 Piece / Pieces per Month
Port NINGBO OR SHANGHAI
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	JKCN
Model Number	CBB65-3B	Type	Aluminum Electrolytic Capacitor
Application	Air Conditioner	Package Type	Surface Mount
Capacitance	2uf-100uf	Rated Voltage	250vac-450vac
Operating Temperature	40/70/21

Product Description

Why Choose US ?

1. With more than 21 years' experience in manufacture, the quality of our products is always reliable.

2. Our products have been exported to many countries , enjoy a good reputation and wide popularity.

3. Every business is very vital to us, and we focus on providing our customers with best service.

4. Professional and energetic technical and sales team, aiming at providing a full suit of serices.

5. Advanced equipments, and a good , safe production environment.

Product Description

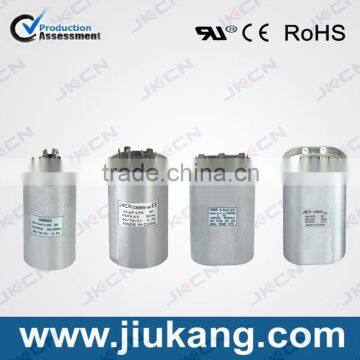

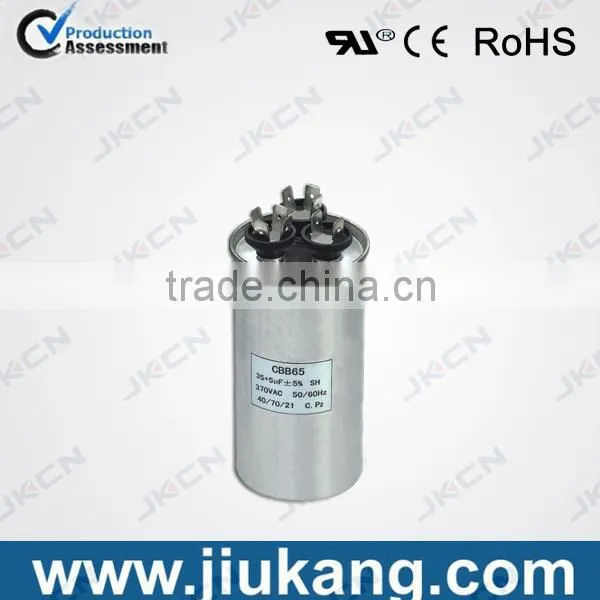

Product Character of AC Dual sh Capacitor capacitor 50uf 450vac CE approval

This product uses thickened metalized polypropylene film as a dielectric,

coiled by high speed winding machine, encapsulated with Aluminum body, mainly applied to air conditioner.

CBB65 air condirioner capacitor ( capacitor for air conditioner ) is

treated by using refined castor oil as impregnant in the high temperature

and vacuum environment to make the capacitor more stable with long working life.

Mean while based on the principle of safety and proof-explosion,this kind of capacitor has been used the second generation mechanical

explosion proof design to strengthen the reliability.

Features of AC Dual sh Capacitor capacitor 50uf 450vac CE approval
1. CBB65 aircondeitiner capacitor is soaked by special oil, thus it possesses stable electric performance and explosion preventing function.
2. The radiating performance of capacitor for air conditioner is good, the temperature rise is low and the life is long.
3. Single product could be made into quite high voltage and capacity.

Service Condition of AC Dual sh Capacitor capacitor 50uf 450vac CE approval

1.Altitude:Applied in the area under 2000 meters.

2.Service temperature:The environment temperature is -25~+70 degree centigrade

3.Relative humidity:Below95%

4.Dirtiness:There's no conducting dust and corrosive gas in the service area.

5.Residual voltage in service:Under10% of rated voltage.

Technical indicators of AC Dual sh Capacitor capacitor 50uf 450vac CE approval

1.Rated voltage: 200V,250V,400V,450V,500V

2.Rated frequency:50/60Hz

3.Operation mode:Continuous
4.Tangent of loss angle: ≤ 0.2%

5.Capacitor deviation:±5%,±10%

6.Top allowable overvoltage:1.1Un

7.Top allowable overcurrent:1.3In

8.Insulation:Between terminal:2Un.2seconds;None permanent arcover.Between pole and shell:3KV.2seconds;None arc over

Technical Data of AC Dual sh Capacitor capacitor 50uf 450vac CE approval

Climate type	40/70/21
Capacitance tolerance	+/-5%
Test voltage	T-T: 2Un T: 2s T-C: 2Un+1000V≥2000V T: 10s
Insulation resistance	≥3000MΩ
Loss tangent	tgδ ≤0.002(50/100Hz )

Dimensions(mm) of cbb65 motor run capacitor for air conditioner

Capacitance (uF)	250V- 450V
Capacitance (uF)	D×H(mm)
2	40×70
3
4
5
6
7
8
10
12
15	45*90
20	45*90
25	45*90
30	45×90
35	50×110
40	50×110
45	50×110
50	50×110
55	60×110
60	60*110
70	60*110
80	60×150
100	60×150

We could design and manufacture as customer's specified specs and dimensions. We can products with any

voltage,capacity,outlet line structure and installing requirements.

Application of motor run capacitor for air conditioner

This capacitor widely used for air-conditioners ,refrigerators,generators,illuminating lamps etc.

We accept OEM.

Packaging

Every product is well packed to ensure the safety !

Company Profile

Established in 1993, Zhejiang Jiukang Electric Co.,Ltd now occupied factory area 168000sq.m. Main products cover CBB60 series Motor Running capacitor, CBB61 fan capacitor , CBB65 Air conditioner capacitor , Cd60 motor start capacitor, AC contactors , AC controller, Float Switch , TBB series Power Factor Correction unit etc. Our company has already passed the ISO9001 Quality Management System Certification, ISO 14000 Environment Management System etc.

Workshop of cbb65 airconditioner capacitor

1. Germany exported machines( professional rolling , film-cutting machines )& dust-free worshop.

2. Profeesional workers to deal with the film , to ensure the good performance of film .

3. Strict test on each capacitor .

Certifications

Certifications of Our Products

FAQ

Q 1. How's the delivery time ?
A. Depend on your quantity ,usually within 15days after receive your payment in advance.

Q 2.Would you accept to use our logo ?
A. If you have good quantity,it absolute no problem to do OEM.

Q3. Would you offer free sample?

A. We will offer you free sample for the motor capacitors. for power capacitor will not be free.

Q4 What's your guaranty time?

A. One year,if meet quality problem duing this time, we will take charge of it.

Q5 What's your payment term?

A. TT LC West Union.

Our Services

. Professional Sales & Engineers Teams

We have professional engineers& sales team, aiming at providing a full set service. All members of our sales team are enthusiastic, energetic , with good sense of responsibility. And our engineers have great enterprise and creativity. We will use the best attitude to provide you with our best service .

2. Timely Follow-up On Production Process & Delivery

After you place your order , we will report the production process timely. And after your goods is ready, we will inform you and report the news about the delivery timely.

3. Your Feedbacks and Suggestions Are Valued

Any feedbacks and suggestions are welcomed . Your problem , we will pay great attention and try our best to solve it.

SO...........................What are you waiting for ?
