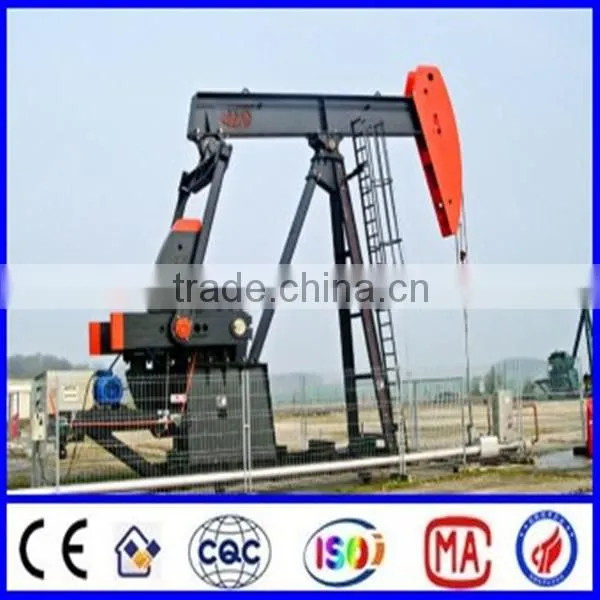

API Alien (double horse head) Beam Pumping Unit CYJS10-4.2-37HB oilfield

FOB Price

USD $10,000 - $50,000 / Set

1 Set(Min.Order)

Supply Ability 10 Set / Sets per Month
Port Qingdao Tianjin
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Condition:	New	Place of Origin:	Shandong, China	Brand Name:	Hongsheng Oil
Model Number:	CYJS10-4.2-37HB	Certification:	ISO API	Warranty:	1 year
After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

Specifications

Meets API Spec 11E or Q / SL 1361 - 2002 standards, with the characteristic of a stroke length, small dynamic load,etc.

Product Features
Alien (double horse head) beam pumping unit using adjustable arc-shaped beam rear arm, between the beam and the beam connecting the special structure of the flexible member, the production strictly according to API Spec 11E or Q / SL 1361 - 2002 standards, with a stroke length, dynamic load is small, small torque fluctuations, high efficiency, low energy consumption, smooth, easy to start and so on. The aircraft is equipped with multi-function electrical cabinets, with short circuit and overload voltage protection, reactive power compensation, restoration from the start, the motor speed and other functions, low-powered devices are equipped with investment, easy maintenance and management. Saving 20-60% than conventional machines, installed power reduced by about 50%, and can save power system investment.
Mainly used for mining low-viscosity crude oil and high water content can also be mined for viscous crude oil.

Technical Parameters

Model	Rated rod load	Reducer rated torque	Red times	Stroke	Motor Power	Total Weight
	(kN)	(kN.m)	(min-1)	(m)	(kW)	(kg)
CYJS6-3-18HB	60	18	3,2.5,2	5,7,9	15	14000
CYJS6-3-26HB	60	26	3,2.5,2	5,7,9	18.5	18000
CYJS8-3-26HB	80	26	3,2.5,2	5,7,9	18.5	18000
CYJS8-3-37HB	80	37	3,2.5,2	4,6,8	18.5	19000
CYJS10-3-37HB	100	37	3,2.5,2	4,6,8	18.5	20000
CYJS10-4.2-37HB	100	37	4.2,3.6,3	4,5 ,6	18.5	21000
CYJS10-4.2-53HB	100	37	4.2,3.6,3	4,5 ,6	18.5	21500
CYJS10-5-37HB	100	37	5,4.2,3.6,3	4,5 ,6	18.5	22000
CYJS10-5-48HB	100	48	5,4.2,3.6,3	4,5 ,6	22	23000
CYJS10-5-73HB	100	48	5,4.2,3.6,3	4,5 ,6	22	24000
CYJS12-5-48HB	120	48	5,4.2,3.6,3	4,5 ,6	22	25000
CYJS12-5-53HB	120	53	5,4.2,3.6,3	4,5 ,6	30	27000
CYJS12-5-73HB	120	73	5,4.2,3.6,3	4,5 ,6	37	28000
