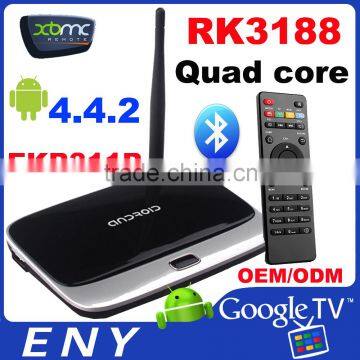

R&D Factory Rockchip3188T 1GB/8GB Quad Core Mali-400 1.6GHz SPDIF Bluetooth4.0 Android Ott Tv Box

Hardware Spec:

Operation System

Android4.4.2/ Android 4.2.2 optional

Language

Chinese, English...Multi-Language support

Chipset

RK3188 28nm Cortex-A9 Quad core.

GPU

Embedded 3D GPU Mali 400, High frequency 500Mhz, Support OpenGL ES 1.1/2.0 and OpenVG 1.1.

SDRAM

DDR3 2GB   (Optional:1GB)

Nand Flash

8GB Nand Flash. (Optional:4GB/8G/16G/32G)

Storage Extension

Support MicroSD(TF) ,Up to 32GB

Bluetooth

Blutooth 4.0 (optional)

Network

2.4GHZ WiFi 802.11 b/g/n, LAN 10/100M Base-T

Power Supply

 DC 5V/2A

Interface:

HDMI Out

1xHDMI(A type Male),HDMI1.3 Full HD 1920x1080P

USB Port

2XUSB Host

Data Output

1xSPDIF

Card Readere

1X Micro SD card (TF card) reader

AV Out

1x3.5mm Headphone Jack

Network

1xRJ45 LAN Port

Power Supply

1xDC Jack(2.1mm)

Antenna

External WiFi antenna

Media Parameter:

Audio Container

Support MP1,MP2,MP3,WMA,WAV,OGG,OGA,APE,FLAC,AAC,M4A,3GPP…etc Audio formats.Muliti -EQ mode,Support Synchronized lyrics and full-page lyric display.

Audio Out

HDMI Data Output

Video Decoder

MPEG-1, MPEG-2, MPEG-4,H.263, H.264, AVS, VC-1,
RV, VP6/VP8, Sorenson Spark, MVC 1920x1080P 60FPS

Video Encoder

H.264,VP8,MVC(1080P)

Resolution

Full HD1080P@30fps

H.264 Data Rate:

Up to 60Mbps

Image browser

Support JPG,JPEG,BMP,GIF,PNG,JFIF…etc photo format. Maximum resolution up to 8192x8192.

Text-Reading

Support TXT,LRC,PDF,Html,Htm,EPUB…etc formats(Depends on APK install).

Software Extension

Support Google Play & APK install.

DLNA,Wimo Protocol

Support DLNA,Wimo Protocol

Remote Control

Support Smart phone remote control,2.4GHZ wireless air mouse/Remote controller.

IM Software

Support Skype/QQ/MSN/GTALK (Depends on APK install)

Offic Software

WORD/EXCEL/PDF(Depends on APK install)

Others Parameters

Operationg Temperature:

-10~40°C

Storage Temperature:

-20~50°C

Humidity environment

5%-90%(No condensation)

Certification

CCC,CE,EMC,FCC,Wi-Fi

Package

Dimension

142x95x21mm

Net Weight

TBD

Carton Box Size

L412*W362*H294mm

Gift Box Size

L172*W130*H78mm

Accessory List

1.Standard Package: 1xQSG,1xAdapter(DC 5V/2A), 1xHDMI Cable,1x3.5mm AV Cable,1x IR Remote Controller
2.Optional Package: 2.4G Wireless Air Mouse, 2.4G  Wireless mouse and keyboard,USB Cable
