ZL16f wheel loader with log clamp trailer

Name: ZL16f wheel loader with log clamp trailer
Brand: WOLF
Availability: InStock

FOB Price

USD $10,000 - $12,000 / Set

1 Set(Min.Order)

Supply Ability 1000 Set / Sets per Month
Port Qingdao
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Condition:	New	Brand Name:	WOLF	Model Number:	WL160 ZL16
Place of Origin:	Shandong, China	Type:	Front Loader	Moving Type:	Wheel Loader
Dimension(Long * Breadth * High):	5280x1680x2560mm	Rated Load:	1600kg	Certification:	CE TUV EPA
Warranty:	1 year	After-sales Service Provided:	Overseas service center available

Product Description

ZL16f wheel loader with log clamp trailer

1. Engine: Xinchai A498BT1 Euro III engine

2. Rated load: 1600kg

3. Overall weight: 4000kg

4. Rated bucket capacity: 0.8cbm

5. Overall dimension: 5280x1680x2560mm

6. Standard tire: 20.5/70-16

Standard Configuration:

Xinchai 498 Euro III engine, 36.8kw(50hp), joystick, quick hitch, 20.5/70-16 tires, rear video camera, manual floating function, 2 LED lights, Varta battery,heater and fan in the cabin, air over disc brake on 4 wheels, bucket can be level automatic, back sound, radio, USB, hand brake, extinguisher, window hammer, engine preheat, warning light

Optional Engine:

Changchai 490 engine,38kw

Xichai 490 engine, 37kw

Xinchai490 Euro III engine, 36.8kw

Optional tire:

23.5/70-16 tires

23.5-16 Agricultural Tire

Detailed Specification of WL160, ZL16F loader

Performance	Rated loading	1600kg
	Overall weight	4000kg
	Rated bucket capacity	0.9m³
	Maximum dump height	2330mm
	Overall dimension (LXWXH)	5280X1680X2560mm
Engine	Model	Xinchai A498BT1(Euro III)
	Type	Vertical, in-line, water cooled, 4-stroke diesel engine
	No. of cylinder-bore/stroke	4—100×125mm
	Rated power	36.8kw—2200r/min
Transmission system	Torque converter	YJ1—26501
	Gearbox mode	Countershaft power-shift
	Gear shift	2 forward shift 2 reverse shift
	Maximum speed	24km/h
Drive axles	Main reducing spiral	Circular Arc Bevel gear, single stage
Drive axles	Decelerating mode	Single stage planetary type
Brake system	Service brake	Air assist disc brake on 4 wheels
Brake system	Parking brake	Flexible shaft operated external drum
Tyre	Type specification	20.5/70-16
Tyre	Optional tyres	23.5-16 agricultural tires

Optional Attachments:

Rear Video Camera	Change cabin normal light to be LED light
Hydraulic Line(per one more)	Electronic control on joystick
Quick hitch	4 in 1 bucket
Pallet fork	Hydraulic adjustable pallet fork
Snow bucket	Snow blade
V Blade	Snow blower
Sweeper(for 08 hydrostatic)	Closed street sweeper
Dustpan bucket	Screening bucket
Drum clamp	Backhoe
Bale grab	Mixing bucket
Grass fork	Grass bucket
Bale spear (2 or 3 teeth)	Pitch fork
New European grass fork	Log clamp – A&H& 3 teeth

With different kinds of attachments, she can do different jobs for you.

Packaging & Shipping

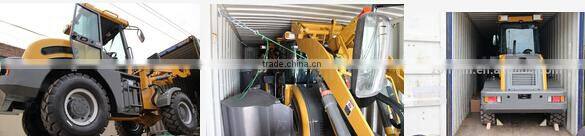

1 set in a 20GP and 3sets in a 40HQ. Triangle wood and 10mm wire fixed.

Company Information

As a professional manufacturer and trading enterprise, specialized in the export of wheel loader, backhoe loader,forklift and all kinds of attachments, around10 years of experiences, professional and constantly innovation, professional producing line, every serious careful assembly workers,we ensure every wheel loader that we produce has very reliable quality and stability.

Now, you can see "WOLF" series construction machines working in Africa, Europe, South America, central Asia more than thirty-two countries.

Sincerely looking forward to provide you with the most comprehensive field solutions and the most perfect products and services in the most crucial time.

Our Services

We have 1 year warranty from the date of receiving the loaders.

During Warranty, if there is any part broken because of quality problem(except easy-damaged parts), send us detailed pictures, then we will send good/ new parts for your replacements.

We will always online, if you met some situation in a hurry, then contact with us anytime as you like, we will solve it as soon as possible.

Choose WOLF, and then better after-service will be guaranteed.
