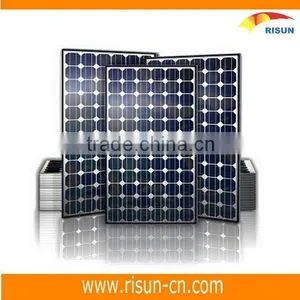

High quality poly 200W Solar Panel with high quality and competitive price

Specifications

200W Poly Solar Panel Specification:
1. A grade solar cells.
2. TUV/IEC/CE/CEC
3. Fast shipment
4. 25 years guarantee

                                           200W Poly Solar Panel Specifications



1.A grade soar cell
2.OEM service
3.CE/TUV certificate
4.packing:carton and pallet



200w poly solar panel, solar module, solar panel :





Features:
1. High cell efficiency with quality silicon materials for long term output stability and reliability.
2. High transmittance low iron tempered glass with enhanced stiffness and impact resistance



3. Unique frame design with high mechanical strength for easy Installation.
4 Advanced encapsulation material with multiplayer sheet lamination to provide efficient protection from the severest environmental conditions
6. Outstanding electrical performance under high temperature and low irradiance conditons




Solar cells applications:
1. Any large or small on-grid or off-grid solar power stations.
2. Commercial and industrial building roof-top systems
3. Residential roof-top systems
4. Any commercial or industrial ground mount systems
5. Other industrial or commercial applications




Solar panel quality and warranty:
1. Peak power of single module in guaranteed in +-3%power tolerance.
2. Average power of modules in single order is guaranteed not less than the peak power
3. Rigorous quality control meets the highest international standard
5.5 years limited warranty on material and workmanship
6.10 years and 20 years limited warranty for minimum power output







poly 200W solar panel Temperature Coefficients
NOCT	45+/-2°C
VOltage temperature coefficients	-0.36%/°C
Current temperature coefficients	+0.033%/°C
Power temperature coefficients	-0.44%/°C
Minimum power tolerance	+/-3%
Mechanical Data
Solar Cell	54(6×9)Poly-crystalline 156×156mm
Front Glass	3.2mm tempered
Junction Box	IP65 rated
Output cables	900mm lenght cable
Frame	Anodized aluminium
poly 200W solar panel  Electrical Data
Module type	RSM54-156P/200W
Nominal peak power(Wp)	200W
Nominal voltage(Vmp)	26.26V
Nominal current(Imp)	7.63A
Open-circuit voltage(Voc)	33.6V
Short-circuit voltage(Isc)	8.11A
Module efficiency	14%
Operating temperature	-40°C to +85°C
Maximum system voltage	1000V DC
Weight	18kg
Dimension	1488×990×40mm
