air source heat pump water heater

Specifications

Air source heat pump water heater
1. -20 DC low temp. use
2.floor heating,radiation
3. COP4.5, R410a
4. CE approved

Air source heat pump water heater  Parameters



Model	MAHRW040ZB/(P)
Heating Capacity	14KW   48300  Btu/h
Heating Power Input	4.09KW
Heat recovery output water	300L/h
Running current	18.6A
Power Supply	220/1/50V/Ph/Hz
Compressor	SCROLL
Compressor Qty.	1
Fan Qty.	1
Fan Power Input	80W
Fan Rotate Speed	830RPM
Noise	53dB(A)
Refrigerant gas type	R134A/410A
Water Pump Input	0.2KW
Water Pump Perssure	8m
Water Connection	1inch
Water Flow Volume	1.3 m³/h
Water Pressure Drop	17kpa
Capacity Of Water Storage	23L
Fan direction	SIDE fan
Appearance size(L/W/H)	660/660/860mm
Packaging size(L/W/H	750/820/1010mm
Net Weight	85kg
Gross Weight	100kg

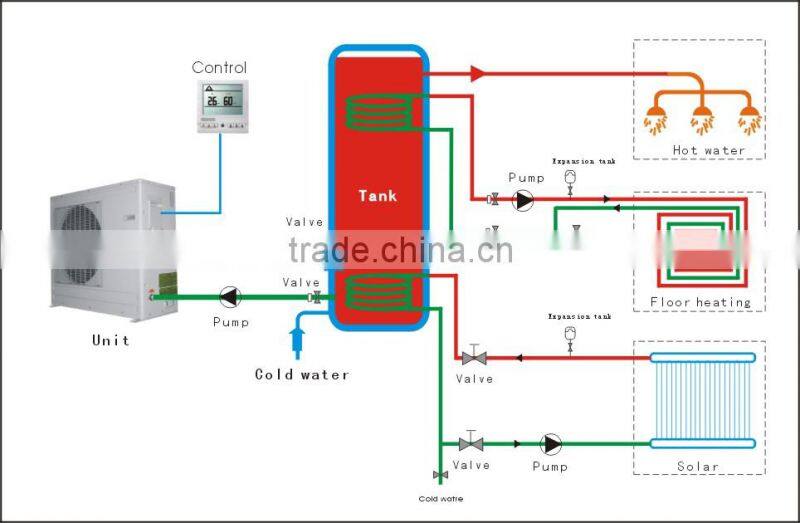

Air source heat pump water heater working principle:

Heat pump water heater is a device which can efficiently collector and transfer heat.

Its function is to absorb the heat from the air or low-temperature water as well as to convert its own operating electric power into heat, then to transfer the heat to high-temperature environment.





1.water chiller & hot waterthe cop is more than 6.0, heat the water directly to 60d

2.the water temperature set freely

outlet water temperature constant, advanced water control system, heat the water to 60d diretly. Adjustable outlet water temperature.Adjust the water temperature(45-60)according to the need.

3.once adjusted, the unit outlet water temperature would be fixed on the set temperature.

4.the unit runs more stable, reliable without EHV(exceed high voltage).

5.water tank volume seleted freely, more practical

6.water and electricity system is completely separated, assure using safely

7.Intelligent control

 With automatic filling water,water level control,defrost, power-fail memory,charge adjustment system,with booking timed heating,LCD display remote control and clock.

circulating

1:the cop is more than 4.0, more efficient

2.Meet a large consumption,stable and reliable hotwater output and performance,high energy efficiency ratio,constant water tank temperature to ensure comfortable use.

3. the unit runs more stable, reliable without EHV(exceed high voltage)

  Debase efficiently the attenuation of the heat exchange rate,assure hot water capacity.Adopting high efficient tube heat exchanger, waster rate is greatly reduced, long-term and stable operation.

4.water tank volume seleted freely, more practical

5.water and electricity system is completely separated, assure using safely

6.Intelligent control

 With automatic filling water,water level control,defrost, power-fail memory,charge adjustment system,with booking timed heating,LCD display remote control and clock.
