Home > Products > Thrust roller and cage assemblies > AXK 1528 Changzhou factory Axial needle roller bearings AXK1528
AXK 1528 Changzhou factory Axial needle roller bearings AXK1528
- 20000000 Piece / Pieces per Month
- SHANGHAI / NINGBO / QINGDAO / DALIAN / SHENZHEN
- T/T L/C D/P D/A Credit Card PayPal
-
AXK 1226 Changzhou factory Axial needle roller bearings AXK1226
-
AXK 1024 Changzhou factory Axial needle roller bearings AXK1024
-
AXK0821-TN Changzhou factory Axial needle roller bearings AXK0821-TV AXK0821 TN
-
AXK0619-TN Changzhou factory Axial needle roller bearings AXK0619-TV AXK0619 TN
-
Needle and cylindrical roller types, Thrust Roller And Cage Assemblies AXK0515 TN
-
Needle and cylindrical roller types, Thrust Roller And Cage Assemblies AXK0414 TN
Product Details
| Brand Name: | UBT BRAND Axial needle roller bearings | Bore Size: | 15, | Outside Diameter: | 28, |
| Model Number: | AXK1528 | Precision Rating: | P0 P6 P5 P4 P2 | Seals Type: | Open |
| Number of Row: | Single Row | Place of Origin: | Jiangsu, China |
Product Description
AXK 1528-TN Changzhou factory Axial needle roller bearings AXK1528

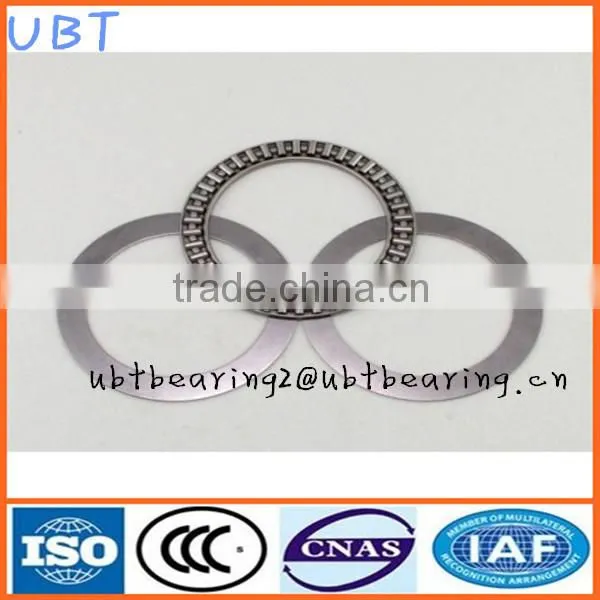

Thrust roller and cage assemblies comprise plastic or metal axial cages with integrated needle rollers and have a very small axial section height. They can support high axial forces in one direction. Radial loads must be supported by separate means. Axial needle roller and cage assemblies require hardened and ground axial running surfaces for use as raceways.
CHANGZHOU UBT AXIAL NEEDLE ROLLER BEARINGS DESCRIPTION
| For shaft diameter in mm | Features | |
| AXK | 4 – 160 | single direction, to DIN 5405-2 |
| AXW | 10 – 50 | single direction, AXK with axial bearing washer |
| TC | 1/4 ” – 4 1/8 “ | single direction, to ABMA 21.2 – 1988, suitable for combination with axial bearing washers TWA, inch sizes |
| Dc1 mm | Dc mm | Dw mm | |
|---|---|---|---|
| AXK0414 TN | 4 mm | 14 mm | 2 mm |
| AXK0515 TN | 5 mm | 15 mm | 2 mm |
| AXK0619 TN | 6 mm | 19 mm | 2 mm |
| AXK0821 TN | 8 mm | 21 mm | 2 mm |
| AXK1024 | 10 mm | 24 mm | 2 mm |
| AXK1226 | 12 mm | 26 mm | 2 mm |
| AXK1528 | 15 mm | 28 mm | 2 mm |
| AXK1730 | 17 mm | 30 mm | 2 mm |
| AXK2035 | 20 mm | 35 mm | 2 mm |
| AXK2542 | 25 mm | 42 mm | 2 mm |
| AXK3047 | 30 mm | 47 mm | 2 mm |
| AXK3552 | 35 mm | 52 mm | 2 mm |
| AXK4060 | 40 mm | 60 mm | 3 mm |
| AXK4565 | 45 mm | 65 mm | 3 mm |
| AXK5070 | 50 mm | 70 mm | 3 mm |
| AXK5578 | 55 mm | 78 mm | 3 mm |
| AXK6085 | 60 mm | 85 mm | 3 mm |
| AXK6590 | 65 mm | 90 mm | 3 mm |
| AXK7095 | 70 mm | 95 mm | 4 mm |
| AXK75100 | 75 mm | 100 mm | 4 mm |
| AXK80105 | 80 mm | 105 mm | 4 mm |
| AXK85110 | 85 mm | 110 mm | 4 mm |
| AXK90120 | 90 mm | 120 mm | 4 mm |
| AXK100135 | 100 mm | 135 mm | 4 mm |
| AXK110145 | 110 mm | 145 mm | 4 mm |
| AXK120155 | 120 mm | 155 mm | 4 mm |
| AXK130170 | 130 mm | 170 mm | 5 mm |
| AXK140180 | 140 mm | 180 mm | 5 mm |
| AXK150190 | 150 mm | 190 mm | 5 mm |
| AXK160200 | 160 mm | 200 mm | 5 mm |
CHANGZHOU UBT AXIAL NEEDLE ROLLER BEARINGS
CHANGZHOU UBT AXIAL NEEDLE ROLLER BEARINGS
1.Neutral packing (neutral plastic bag+ neutral carton+ Plywood/Iron pallets)
2.Custom packing (with logo or barcode according to clients’ requirement)
CHANGZHOU UBT AXIAL NEEDLE ROLLER BEARINGS
Q: I have a urgent order , and want to find a good supplier in short time ,what should i do ?A: Please send your inquiry to me ,and tell me ,the model ,quantity ,material ,package ,precision ,you need ,i will give you a quick response.
Q: How can i get a price with a discount ?A: Discount according to orders .Bigger order ,less money every bearing will cost ,then discount will be bigger .
Q: I have a trial order ,the quantity is little ,could you manufacturing it for me ?A: Please contact me ,i will tell you the MOQ.If you also need we design the single box for you ,we could make it for you ,and the extra cost of the order will return you by next official order.
Q: I don’t know your factory before ,could you tell me which company you are cooperating now ? I want to get to know more about your factory?A: Sorry ,this is our company regulation :we should not let the information of our customer out ,in the same time ,we also keep your information confidential.If you want to know more information ,you could get some free sample from our factory or visit factory if you have the time .
Q: Does your company could accept D/P or D/A payment terms?A: The payment terms of our company is :30% deposit by T/T or West Union ,70 % balance against the copy of B/L.
Q:Now i have a important order ,the quality must be good ,and my customer will test the goods when receive it ,the quality must be good ,can i trust you ?
A:Our manufacturing factory was founded over 10 years. With so many year professional experience, if you need some certificate to show for your customer, pls inform us. We belive could help u to enlarge your market!
CHANGZHOU UBT AXIAL NEEDLE ROLLER BEARINGS
CHANGZHOU UBT AXIAL NEEDLE ROLLER BEARINGS
