Home > Products > Pressurized Solar Water Heater > Pressurized Solar Water Heater System

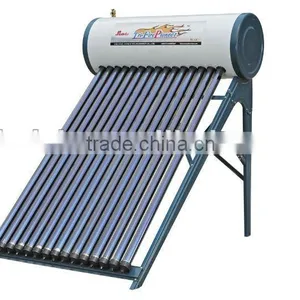

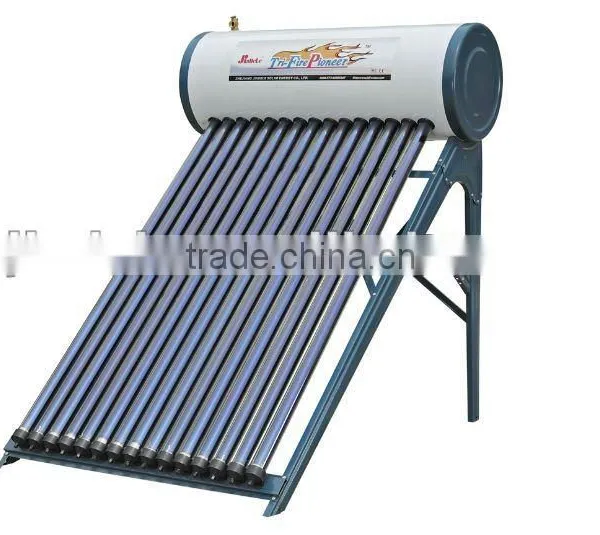

Pressurized Solar Water Heater System
- 1000 Set / Sets per Month
- shanghai
Product Details
| Type: | Other, Evacuated Tube, Evacuated Tube | Pressure: | Other, Pressurized, Pressurized | Circulation Type: | Direct / Open Loop (Active) |
| Heating System: | Other, Batch / ICS (Passive), pressurized system | Connection Type: | Direct-Plug | Installation: | Freestanding |
| Housing Material: | Other, Stainless Steel, Galvanized steel/ Stainless steel/Colour steel | Certification: | CE, Other, CE, CCC, ISO9001 | Capacity: | 300, 150200300 |
| Place of Origin: | Zhejiang, China | Brand Name: | JIADELE | Model Number: | JDL-HP30-58/1.8 |
Product Description
Specifications
Pressurized Solar Water Heater SystemWork with high pressure.
inner tank: SUS 304-2B-1.2mm
outer tank: galvanized steel,-0.4
Pressurized Solar Water Heater
Work with high pressure. Therefore, the warm water comes out with pressure too. It uses the heat pipe to deliver heat energy, water is heated rapidly. Each tube can work alone, so it can work even if one tube is broken.
Key Specification:
1) inner tank: SUS 304-2B food grade stainless steel sheet, thickness:1.2mm
2) outer tank: galvanized steel, thickness:0.40mm
3) frame: galvanized sheet with electrostatic plastic coating, thickness: 1.5mm
4) vacuum tube: high boron silicon glass with aluminum/red copper/ stainless steel bloomed, ST=300;
5) insulation layer: Polyurethane, thickness: 55mm
REMARK:
Solar heat storage tank diameter(mm):365/480
Thickness, insulated(mm):55
Vent connection(inch):3/4
Electric heater connection(inch):1.25
Water connection(inch):3/4
Collector angle(degree):20/45
Test pressure(pa):0.9MPa
Operating fluid ppressure(pa):0.6MPa
Distance from tube to tube:80
