Class H Two Channels Power Amplifier CA20

FOB Price

USD $280 - $400 / Set

1 Set(Min.Order)

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Brand Name:

QSN

Model Number:

CA-20

Place of Origin:

Guangdong, China

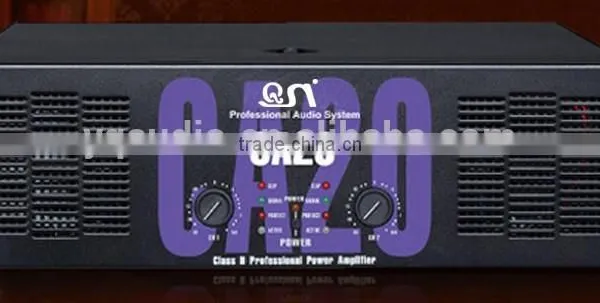

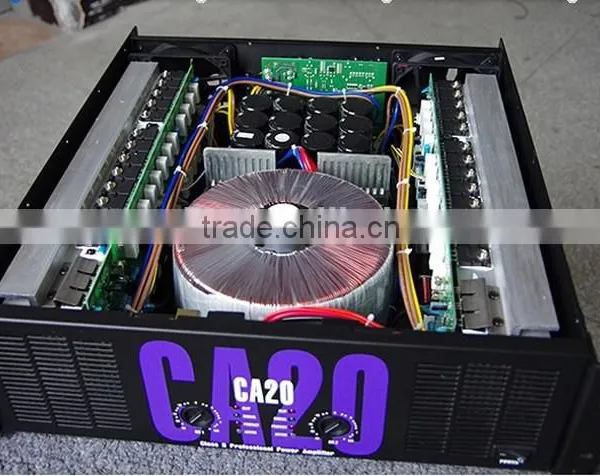

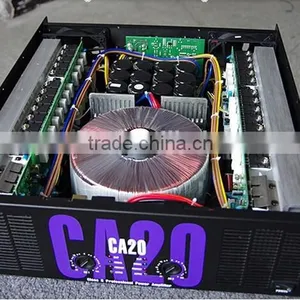

Class H Two Channels Power Amplifier CA20

We also can build the golden color panel CA20 for clients.

CA amplifier is a popular series amplifier.Our Transistors are ON Semiconductor

Parameters as follows:

Model	CA20
Stereo Power8Ω	1350W*2
Stereo Power4Ω	20255W*2
BTL8Ω	4050W
BTL4Ω	5400W
Frequency Response	20Hz-20KHz±0.3dB
THD+N	<0.03%@8Ω 1KHz
S/N Ratio	>93dB
Slew Ratio	44V/μS
Damping Factor	>300
Crosstalk	>70dB@8Ω1KHz
Input Impedance	20KΩ(Balance)/10KΩ(Unbalance)
Input Impedance	0.775V/1.0V/1.4V
Protect	Overheat short circuits,DC,limit,and-softstart,Output relay-Zero Current Switch,Intellctual Clip limiter
G Weight	38KG
Dimensions(WxhxD)mm	662×592×193(3U)

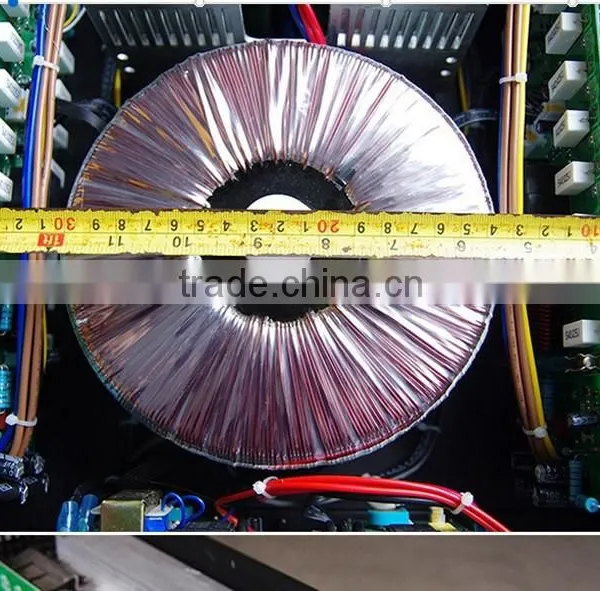

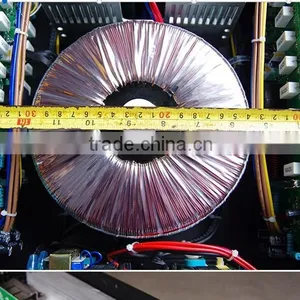

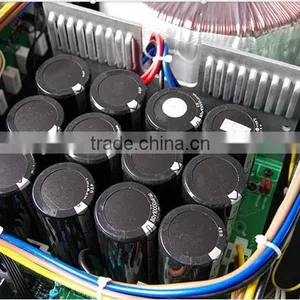

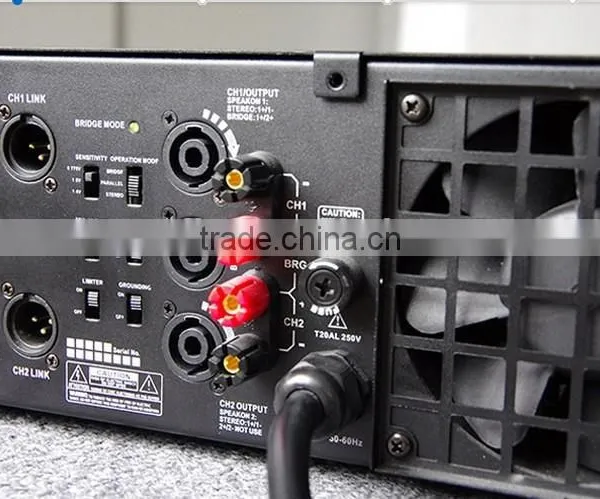

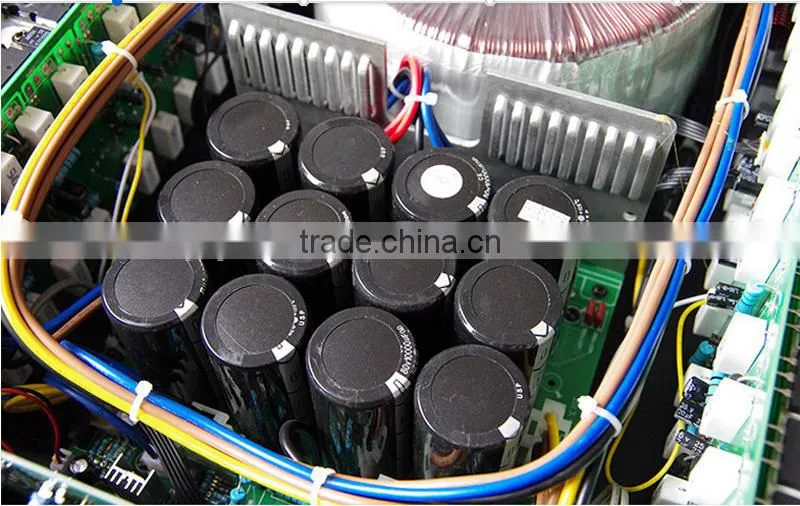

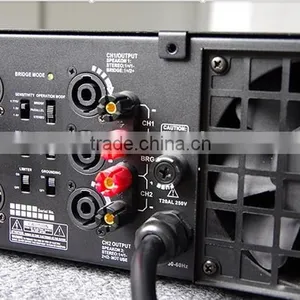

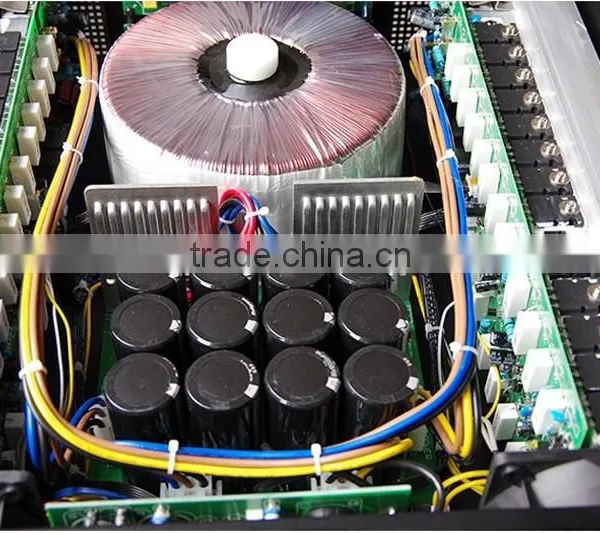

CA series picture as follows:

Model	CA2	CA4	CA6	CA9	CA12	CA18	CA20
(8Ω)Output Power	150W	250W	400W	520W	800W	1100W	1350W
(4Ω)Output Power	225W	375W	600W	780W	1200W	1650W	2025W
(8Ω)Bridge Mono Mode	450W	750W	1200W	1560W	2400W	3300W	4050W
(4Ω)Bridge Mono Mode	600W	1000W	1600W	2050W	3800W	4400W	5400W
THD+N(20Hz-20KHz)	<0.03%
Frequency Response	20Hz-20KHz,3dB@100KHz				20Hz-20KHz(+0/-0.5dB)
S/N Ratio	90dB	90dB	90dB	90dB	90dB	90dB	90dB
Cooling Mode	Intelligent Temperature Control Fan
Protection	DC safegured/overloading/startup boot/strap short test

Professional speaker and line array speaker,subwoofer speaker package details:

Mini Line array ATA case/Flight case package:

Professional speaker and line array speaker,subwoofer flight case package details:

Power amplifier inside package details:

Power amplifier outlook package in store details:(a plastic bag encase the amplifier to waterproof)
