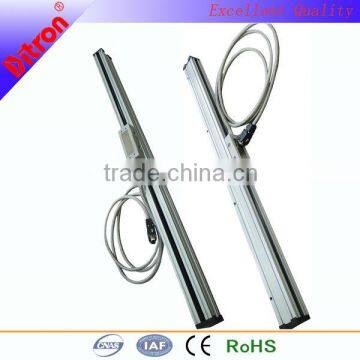

5v ttl or npn fully sealed digital magnetic rulers/ grating rulers

Specifications

1)Resolution:0.025mm,0.01mm,5um,1um
2)Output:line-driver(TTL);pudh-pull (NPN)
3)The grade of waterproof and seal:Ip67

DM-B fully sealed magnetic scale







Basic Specification

1) Resolution:0.025mm,0.01mm,5μm,1μm

2) Output:LINE-DRIVER(TTL);PUSH-PULL(NPN)

3) The length of signal line:3mete

4) The accuracy: ±10μm/m, ±15μm/m, ±30μm/m

5) The length of the magnetic steal: Ma*32M

6) The magnetic gap: 2+2mm,5+5mm

7) Working temperature: -10°c to +80°c

8) The grade of waterproof and seal:Ip67





Specification of DM series magnetic scale



1) Can't be polluted by the coolant water,coolant liquid or metal dust,so it has the strong capacity of anti-pollution.

2) As the metal shell,so it can't be damaged easily,.Even when doing the machine cleaning,the strong compressed air was sprayed on the magnetic cale,it also can't be damaged.

3) As the non-connecting of magnetic read head and magnetic steal,so the scale is sedom damaged by the friction,then the life of the product can be longer.

4) Simply designed structure,and easy for installation,It uses the high sealing design,and it has the 1.5mm self-adhesive magnetic steal,which the travel length can be 32M

5) The magnetic scale can output grid digital or analog signal,it can output a series of resolution with 1um,2um,5um,10um,20um and 50um,which can  be selected by customers.When the resolution is 1 um,the highest traveling speed can be 4m/s

6) The DM series magnetic scale can be uesd in a very harsh environment,such as:stone sutting or processing machinery;metal working machinesry;knitting machinery;packeging machinery;rubber machinery;automation machinery;plasma cutting machinery;laser cutting machinery;water jet cutting machinery;semiconductor production machinery,and more.
