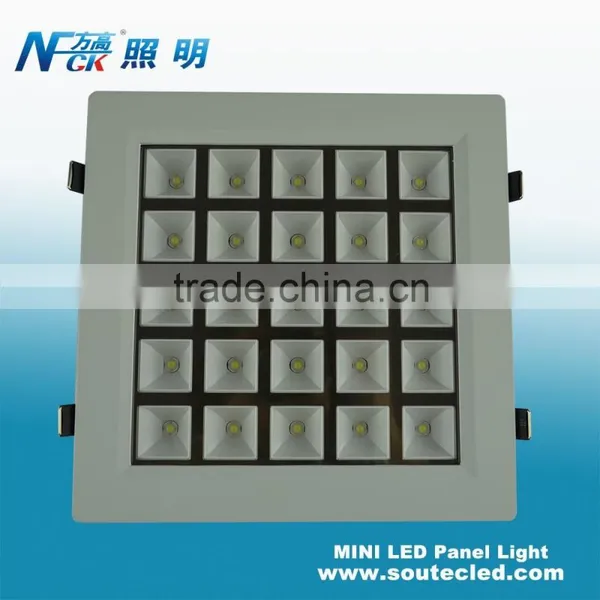

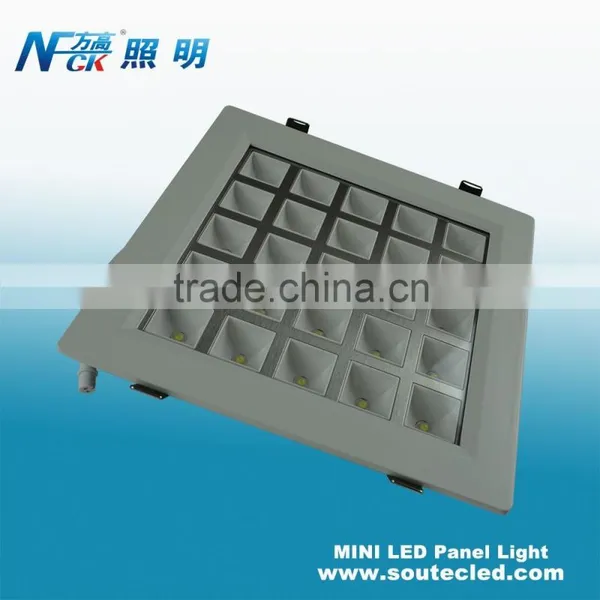

High power light wall panel led grille panel light 25 watts wall mounted led panel light

Name: High power light wall panel led grille panel light 25 watts wall mounted led panel light
Brand: SOUTEC LIGHTING
Availability: InStock

FOB Price

USD $12 - $15 / Piece

10 Pieces(Min.Order)

Supply Ability 2000 Piece / Pieces per Month
Port Shenzhen
Payment Terms:Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

LED Light Source:	High power led	Grid Shape:	Other, Square	Input Voltage(V):	AC85-265
Lamp Power(W):	25	Lamp Luminous Flux(lm):	2100-2250	Lamp Luminous Efficiency(lm/w):	90
Color Temperature(CCT):	Pure White	Working Temperature(℃):	-40, +55	Working Lifetime(Hour):	35000
Lamp Body Material:	Aluminum	Certification:	CCC, CE, EMC, FCC, LVD	Place of Origin:	Guangdong, China
Brand Name:	SOUTEC LIGHTING	Model Number:	FG-PNH1P25A-7

Product Description

High power light wall panel led grille panel light 25 watts wall mounted led panel light

Advantages:
1. Experienced technical staff
2. Advanced equipment
3. High quality
4. Experienced R&D department
5. OEM accepted
6. Strong production capability
7. Large scale production lines
8. Clients' special requirement accepted
9. Unique design
10. Good reputation

Product Description

LED panel Light is kind of lighting products embedded into the ceiling,LED panel Light belongs to the directional lighting,only its face direction can light,its light beam is focus,bright and dark areas is clear.

The feature of LED panel Light:It is perfectly embedded into the ceiling,do not influence the appearance of

ceiling.

***Energy saving: power consumption is 1/2 of CFL

***Environment friendly:No mercury etc metal material,no pollution to the environment

***Economic:Saving power and saving money

***Super long lifetime.

Model No	FG-PNH1P25A-7
Input voltage	85-265VAC/220VAC/110VAC 50hz/60hz AC12~24V DC12~24V
Power(watt)	25W
Product size(mm)	217*217MM
Color temperature	2800~3300K/4000~4500K /6000~6500K
LED Chip	Cree/Epistar/Samsung/San’an
Mount hole size	195*195MM
Housing Color	white
Luminous Flux (lm)	2100-2250Lm
CRI(Ra)	75
Lifespan	≥35000hrs(Energy star standard)
Beam Angle	160°
Material	Aluminum housing+PC Cover
Operating Temperature	-40℃ – +55°C
Dimmable	Optional
PF	>0.5
IP	IP40
Certificate	CE,RoHS
Package size	510250510 MM 20pcs/carton

Since 2012,more and more offices even if home fix with LED panel Light.The performance of led down light is accepted by the users gradually.Led Down Light owns some advantages that other led lights can not have.

1,LED panel Lights do not occupy the space

2,The base of LED panel lights are installed inside of the roofs,can have a comfortable feelings.

3,LED panel Lights are widely used in super markets,office,factory,hospital etc,install easily.

4,LED panel light not only have the advantages of traditional panel lights,but also with the features of lower heat,energy saving,super long lifetime,lower maintenance cost.Two years ago,because of the high cost of LED makes the cost of led down lights much higher,most of the clients can not accept,but now it goes down a lot,the cost is acceptable for the clients.Under the development of the LED Technology,the cost of led and all other components go down continually,all these make the base of large use for commercial lighting.

5,LED panel Light can beautify the house,and do not break the set of the led hang lamps;All the lights body sealed into the roof,and the surface of the down lights is flat with roof,the light is no dazzle,soft and even.

6,Economic,it can saves 1/2 power comparing with common CFL,it can save the cost of power consumption

7,LED panel light is not easy fragile, and environment and can be recycle,no mercury,and no pollution to the environment.Less energy consumption, reduce the carbons dioxide emissions.

8,Super long tife time,if one day use 6 hours,can use about 15 years,reduce the cost of lighting.

Cautions of using LED panel Light

1,Open the package,and check if the led panel light is broken or not.

2,Turn off the power supply before fix to prevent electricity shock,after the led down light is fixed well,turn on the light,but please do not touch the surface of the led down light.Please do not fix led down light to close to the heat goods,or heat air,or corrosive gas to prevent reduce the lifetime of the led down lights.

3,Before use,please confirm the quantity and the power supply.The led down light is used indoor only,if you use for outdoor,please make the waterproof equipment,and make sure that the installation site can take about 10 times weight of the products.

4,Products are 85~265VAC input,not suitable for frequent on/off,in addition,if you need DC12V,we also can make.

5,Fix on the place no shake,no fire,in addition,avoid to drop down,knock with strong goods.

6,If you use it for long time,please keep the environment for store cool,dry and clean,not allowed to store or use in the moist,high temperature or explosive environment.

Application:

Widely used in shopping mall, business center, restaurant, hotel, meeting room, schools, cafes, bar, warehouse lighting, supermarket, exhibition hall etc all energy-efficient places.

Packaging & Shipping

First packing with plastic bag, then put into inner box, after packing well with inner box, pack with outer carton box.

Upon customer's actual demands, sample can ship by express such as DHL,FEDEX,UPS, TNTor EMS etc, by air.

Quantity order products can ship by air, by ocean, by train etc.
