Exchangable cages expansion valve R410 for R22 R410A R134A R407A

Specifications

expansion valve R410
1.Interchangeable cage
2.MOP
3.for R22 R410A R134A R407A



Overview

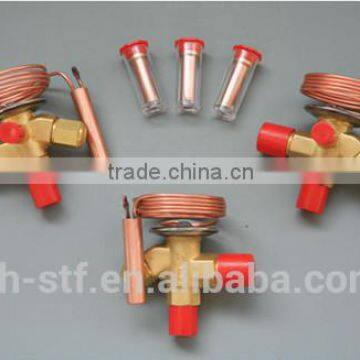

SMJ valve is a new generation thermal expansion valve,

it is especially suitable for a variety of small and medium

dry-type evaporators in liquid injection.



Characteristics

l  Interchangeable orifice assembly,easy-to- stock,easy capacity matching,better service.

l  The hybrid charge technology is applied to the contact bulb.

l  Can be equipped with the external or internal pressure equalization.

l  Superheat is adjustable,factory setting is 3°c.

l  Safe working pressure: 4.5 MPa.



Technical data



Interchangeable cages VS refrigerating capacity (Ton)

Code	R134a	R22	R404A	R407C
0	0.25	0.30	0.26	0.21
1	0.5	0.7	0.61	0.45
2	0.8	1.0	1.03	0.6
3	1.3	1.5	1.63	1.2
4	2.2	2.5	2.66	2.1
5	3.0	4.0	3.24	2.6
6	4.0	5.0	3.74	3.5



Note:Nominal capacity is based on evaporating temperature t_e=4.4°c, condensing temperature t_c=40°c,and refrigerant temperature ahead of valve t₁= 37.8°c.

R134a-ΔP=0.46MPa, R22-ΔP=0.69 MPa, R404A-ΔP=0.72MPa,R407C-ΔP=0.69MPa.



Reference for model selection

When selecting capability of the expansion valve, pressure differences between two ends of the valve and evaporating temperature should be considered, so as to make it to fit with the thermal load of the evaporator. We have any information which could be used as reference for model selection. Since it is difficult to calculate the actual pressure loss, we suggest that the selection of model and specification should be done based on test under the actual working condition.

There is relationship between pressure loss and cooling capacity. If ΔP exceeding the value as we mentioned, we suggest to apply the external equalizer valve, which is suitable for the occasions of great resistance to flowing refrigerating agent, low evaporating temperature and over numbers of liquid branches. Besides, we suggest to establish a over cooling temperature of 1 ~ 4ºC before the expansion valve.

We are pleased to provide the tables of Extended capacity (Tons) and  Fault frequently occurred and their solution when you want.
