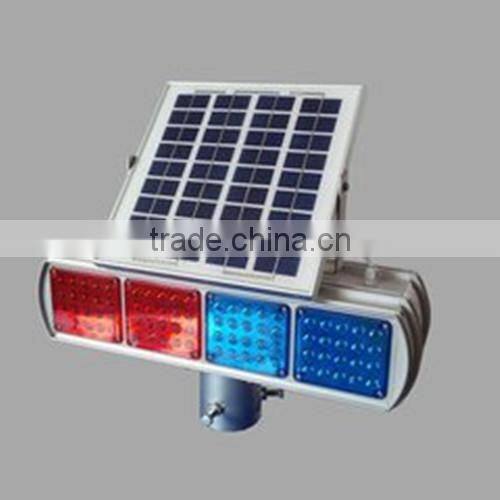

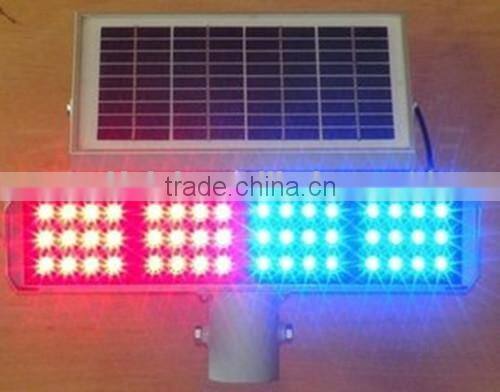

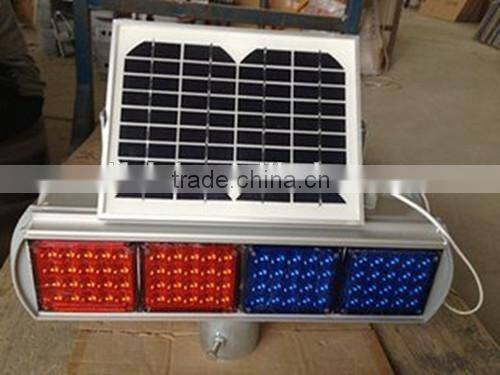

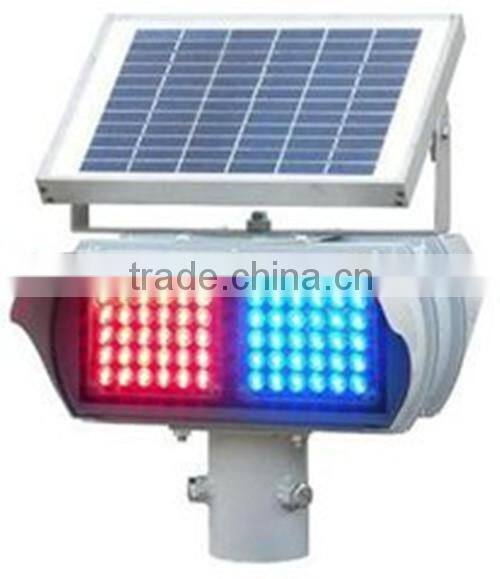

Construction Flashing Warning Traffic Light for Road Safety

1pair/box,12pairs/outer carton

Technique Datas of Construction Flashing Light:

Shell: 520*165*135mm

Solar panel: 290*230mm

Base: height 105mm  dia 70mm

Base install pipe: inner dia 60mm

Color: blue red yellow white(the color can be customized)

Working voltage:12V

Battery power: 14Ah

Solar panel: 6w

Warning distance: >2000m (at night)

Working time: 150 hours in rainy days.

The Details of Our Construction Flashing Light:

Characteristics of Our Construction Flashing Light:

1.(1)The shell of the construction flashing light is made of aluminum alloy, and the surface is plastic spray paint, beautiful and not easy to be corroded, and can be without rust after long time use.

(2)The elements of the construction flashing light adopt sealing treatment, high protectiveness.

(3)Waterproof, dustproof effectively

2. Every lamp panel is consist of 20 LEDs whose signal lamp brightness is greater than or equal to 8000mcd, with vacuum coating reflector, PC lamp shade with high transparency,high shock resistance,anti-aging, the viewing distance at night can be more than 2000 meters, therefore it can satisfy different road segments and time.

3. Solar monorcrystal panel adopt aluminum frame glass, good translucency, higher energy absorbing capacity. Besides, it can work continuously in rainy and sunny day.

Installation instruction of construction flashing light:

1.The light is equipped with footstock and baseboard, the drum on the switch side with 3 screws is baseboard, while the other side is footstock.

2.The footstock is used to fix solar panel. First of all, take down the screw cap, put the solar panel on the screw, then screw on the screw cap.

3.The baseboard is used to fix the lamp body, insert the support bar into the base, to tighten the screw.

4.Adjust the direction of the lamp body and solar panels,ensure that the solar panel can receive light as much as possible.
