PET blow moulding machine price

Specifications

Fast,safe and accurate cam-controlled blowing wheel for providing the best bottles

Specifications

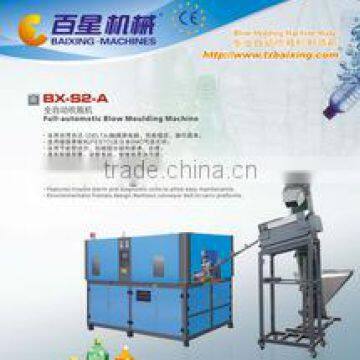

Automatic blow moulding machine
2 cavity
Output: 1600-2200pcs/hr
Bottle size: 0.1-2.0L

Features of 2 cavity full automatic PET bottle blow moulding machine:





1.Utilization of automatic central lubrication.
2.Compact space design for convenience of mold-conversion,repairing and maintenance.
3.Minimized transfer pitch for increasing heating efficiency and saving energy.
4.Swift exchange design for preform mandrels.
5.Optimized air flow in the oven for stable heating process.
6.Easy to adjust,exchange and access heating oven;Protection for preform thread against heating.
7.Intact rotating robot grip with linear guider for right access,rapid motion;reducing adjustment and maintenance time.
8.Electronic inspector for ejecting faulty preform and bottles.
9.Fast,safe and accurate cam-controlled blowing wheel for providing the best bottles.
10.Precise control of blowing technique to produce less-weighted bottle.
11.Smart design for quick conversion of blow mould.
12.Through finite element analysis to optimize modular design for reducing machine wearing and moving inertia.
13.Operating machine through touch panel;program protected by code lock.



Technical parameter:

ITEM		UNIT	BX-S2-A
CONTAINER	ntainer volume	L	2.0
	Max.neck outer diameter	mm	40
	ntainer diameter	mm	105
	ntainer height	mm	350
	Number of cavity	pcs	2
	Theoretical output	bph	1400-2000
ELECTRICAL	Max.heating power	kw	21
	Installed power	kw	22
COMPRESSED AIR	Operating pressure	Mpa	0.7-1.0
	Low pressure air consuming	L/min	1200-1600
	Blowing pressure	Mpa	≤3.5
	High pressure air consuming	L/min	1400-2000
WATER CHILLER	Pressure	Mpa	0.3-0.5
	Temperature	degree	10-12
	Flow rate	L/min	20-30
MACHINE DIMENSION	Size(L*W*H)	m	3.1×1.7×2.0
	Weight	kg	2300
