PET blow moulding machine semi autom

FOB Price

USD $5,000 - $7,000 / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Bottle
Plastic Processed	PET	Blow Moulding Type	Stretch Blow Moulding
Automatic	Yes	Place of Origin	Zhejiang, China
Brand Name	BAIXING, Baixing	Model Number	BX-B, BX-B
Voltage	380V	Certification	CE
Warranty	1 YEAR	After-sales Service Provided	Engineers available to service machinery overseas

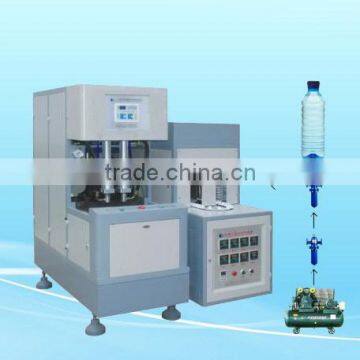

Semi-auto PET blow moulding machine
2 cavity
Bottle size: 0.1-2.0L
700-1200BPH

1. BX-B Semi-automatic PET bottle blowing machine is suitable to produce water and soft drink bottles from 100-1500ml.

2. It is also widely used to produce comestic,medical,pesticide bottles,etc.

3. Feeding system carries the preforms automatically.Infrared lamps adopted in the pre-heater to heat the PET preforms.

4. Semi-automatic process with low investment,high efficiency,quick and safe operation,easy trouble shooting,maintenance and other advantages.

Technical parameter:

ITEM	UNIT	BX-B
Cavity	pcs	2
duct capacity	L	0.05
duct capacity	L	2.0
Min.inner neck diameter	mm	15
Max.inner neck diameter	mm	38
duct diameter	mm	120
duct height	mm	320
Max.mould thickness	mm	110-230
Mould opening stroke(Adjustable)	mm	160
Theoretical output	bph	700-1200
Operating pressure	Mpa	0.8-1.0
Blowing pressure	Mpa	1-3
Max.heating power	kw	14
Machine weight	kg	650
Heater weight	kg	230
Machine dimension(LWH)	m	1.5×0.7×1.85
Heater dimension(LWH)	m	1.85×0.7×1.65
