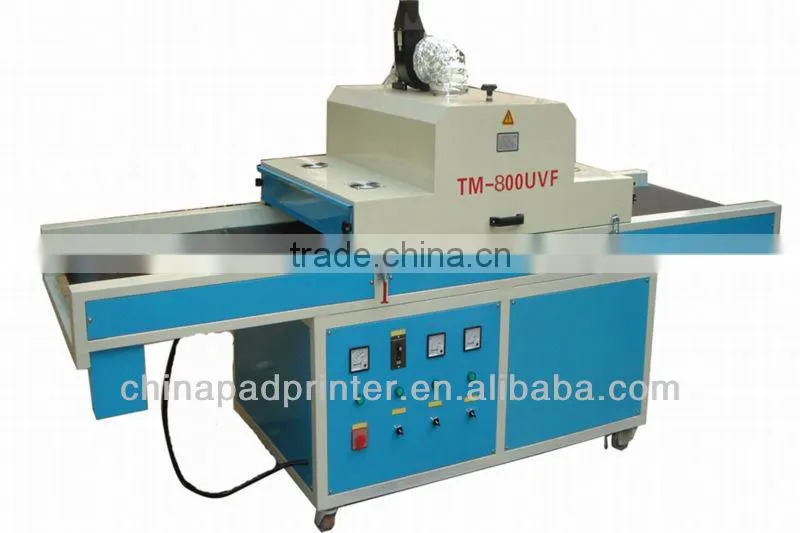

TM-800UVF Plane uv dryer for printing ink uv curing machine with belt uv dryer machine

Specifications

uv dryer machine
1.Driven by well-known motor
2.stepless speed adjustment
3.be fit to UV printing drying







TM-800UVF Plane uv dryer for printing ink

Our  last new UV curing machine TM-800UVF  be fit to UV drying   PVC  ,PAPER OFFEST UV coating ,UV polishing,UV glue,  soft PCB after  printing UV ink ,  plastic UV printing. electronic product UV spary,   packing products UV drying .Our UV LAMP  is high UV frequency.( 360-720NM).  It to fit amost UV INK ,UV glue. Our UV Lamp useful time can sure  1000-1200 hour. TM speed change.Belt runing  speed is 0-10M/min



1. Model  NO. TM-800UVF
2. UV Drying  products:800*100*3000mm
3. Conveyor belt size:L3000* W800MM
4. UV Lamp power:2PCS*5.6KW /380V
5. Total wattage:13KW
6. Wind fan wattage: 500W/380V
7. motor wattage:1000W/1P/380V
8. Conveyor speed:0~10m/min
9. peed change ways:Continue
10.UV Machine  Dimension: L*W*H3020*850*1450
11.weight:320kg





TM-800UVF Plane uv dryer for printing ink

Model number	TM-500UVF	TM-600UVF	TM-700UVF	TM-800UVF	TM-900UVF	TM-1200UVF
max product width	500mm	600mm	700mm	800mm	900mm	1200mm
max product length	2000mm	2000mm	2000mm	3000mm	3000mm	3000mm
UV Process shine area	500*2000mm	600*2000mm	700*2000mm	800*3000mm	900*3000mm	1200*3000mm
conveyer speed	0-10m/min	0-10m/min	0-10m/min	0-10m/min	0-10m/min	0-10m/min
UV Lamp power	3KW *2PCS/	3KW *2 PCS/	3KW *2 PCS/	5KW*2pcs	5.6KW*2PCS	5.6KW*2 PCS
UV Machine  Dimension	2020*550×*200mm	2020*650*1200mm	2020*750*1200mm	3020*850*1200mm	3020*950*1200mm	3020*1250*1200mm



Free Fitting :

TWO pcs UV lsmp(3KW)

Testing Please provide:
1. 380V power supply.
2. 5-7 bar compress air.





Price Terms --FOB or CFR
Payment Terms--- T/T or LC
Packing ----wooden crate
Lead Time ----7days after confirm Payment
SKU ----10 SETS
Standards Certificate ---CE
Cubic Meter---- 3.9
Gross Weight ---320KG
Main Parts--  2 PCS UV lamps 3KW per pcs
Application area--UV PRINTER ,UV GLUE, UV DRYING ,UV CURING



















all machine is packed in wood case





  In order to protect the rights and interests of each user, each printing machine has to undergo a rigorous inspection and testing in factory before sold out as to deliver the most comprehensive after-sales service. Our company's goal: First-class quality, first-class technology, provide customers with first-class products and services.
