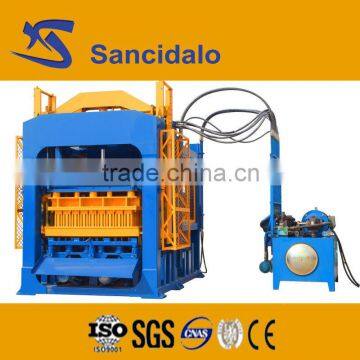

QT10-15 type high quality baking free brick machine

Specifications

1.Japanese PLC&Hydraulic system
2.advanced technology,reliable quality
3.can change

Equipment characteristics of high automatic block machine line QT10-15:

1> Designed and manufactured with Germany technology.

2> Multi-functional: it can make various bricks by different moulds

3>Equipped with Siemens motors and Mitsubish PLC

4>Rotating forced fast distributing method has ensured the full density of load bearing block, lightweight aggregate block, fly ash block and shortened the time of material distributing.
5>The application of imported PLC and color touch screen has realized the automation of high automatic block machine line QT10-15, saved operation time interval and improved productivity.
6>The body is made of thick super-strong steel with special welding technology, very strong, vibration resistant, and with strong exciting force.
7>The control system adopts automatic control method, so the operation is simple and easy to understand.

How does it work?

Screw Conveyer (Optional fitment):  loading bins of the instrument for transporting Fly Ash from the silos(optional fitting) or cement hopper (optional fitting) to the Batching Plant.





Batching Plant: It consists of three loading bins and one weighing bin. It also contains blet conveyers to convey materials from loading bins to weighing bin. Batching and weighing is done by PLC control. We can load three different types of material into the loading bin.



Conveyer Belt:  When the Batching plant’s weighing bin trips according to the PLC control, the material comes to this conveyer belt. Then conveyer belt carried materials to the Mixture Machine.



Concrete Mixture Machine: All the ingredients are mixed in this mixture machine. Mixing time and speed is controlled by PLC. The inbuilt water pump adds water to the mixer automatically, as per requirement.



Block mold machine: This is key of the production line. It can press the mixed material. So it can make various hollow block, solid brick, paver brick and kerbstone.



Stacker: Stacker is used to lay the block automatically, which is high-efficient and labor saving.



What’ the main Parameters?

Dimension of host machine	3500x2300x2930mm	Control style	PLC
Forming style	Hydraulic	Vibration force	100KN
Vibrator style	Table and mould together	Raw material feeding style	360 degree revolve
Forming height	40-250mm	Moulding period	15-20S
Moulding area	1025x810mm	Size of pallet	1300x900x30mm
Weight of host machine	14T	Mixer	JS750
General water consumption	12T/day	Voltage	220/240/380/440v
Simple block production line area needs
Workshop	200M2	Office	100M2
Total area	2000M2
Labors arrangement
Operate	1	Material loader	1
Drive forklift	1	Feeding pallets	1
Maintain	1	Total	5
Production capacity
Item	Size(LxWxH)	Pcs/Mould	Pcs/hour
Hollow block	390x190x190mm	10	1800-2400
Porous block	240x115x90mm	28	5040-6720
Solid block	240x115x53	54	9720-12960



What advantages do we have?

1> Fully automatic and hydraulic block making machine. Our products can produce all kinds of bricks by changing moulds, such as the solid bricks, hollow blocks, paver blocks and so on.

2>German Siemens motors, Japan Mitsubishi PLC system, Omron travel

are adopted.

3>We adopt the heat-treatment and carburization technique to increase the lifespan of the moulds.

4> Certificates: SGS/CE/ISO9001.

5> Strong Steel Structure made of Q235B.

6> There are three same size oil cylinders, which work at the same time to insure the same density and high quality of the blocks.

7> 360° revolving method  ensures the material to be more uniform.

8>Cooling pump is installed to cool the oil so as to insure work of the hydraulic system.

9>waste recycling tank is used to reduce the waste of materials.

 What guaranty can we supply?

-FOR PRODUCT

Company guaranty is 12monthes.

-FOR BUSINESS

Based on more than 7 years exporting experience, Sancidalo is always fast & effectively. We help our customers on matters other than orders

Clearing Customs, CO/CCPIT to save taxes, shipping arrangement and some other unpredictable knotty problems.

7.Why Choose us?

 Factory with many years experience

Reliability:

 We are reputable and large manufacturers of brick machine with numerous certifications guarantee the quality of our machine. No smuggled goods.

Competitive price:

 We always produce good quality products with competitive price.

 Perfect after service:

Up to now,we already have office in India, Vietnam,Indonesia.If any problem can not be solved,we will fly to your place for help.
