25KV Electrified Railway Composite Insulator

Specifications

Electrified Railway Composite Insulator
1.Railway contcat system
2.High cantilever load
3.The Best service

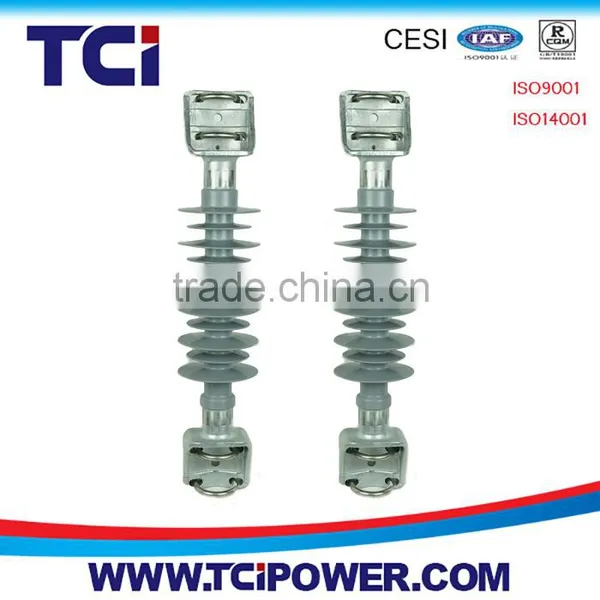

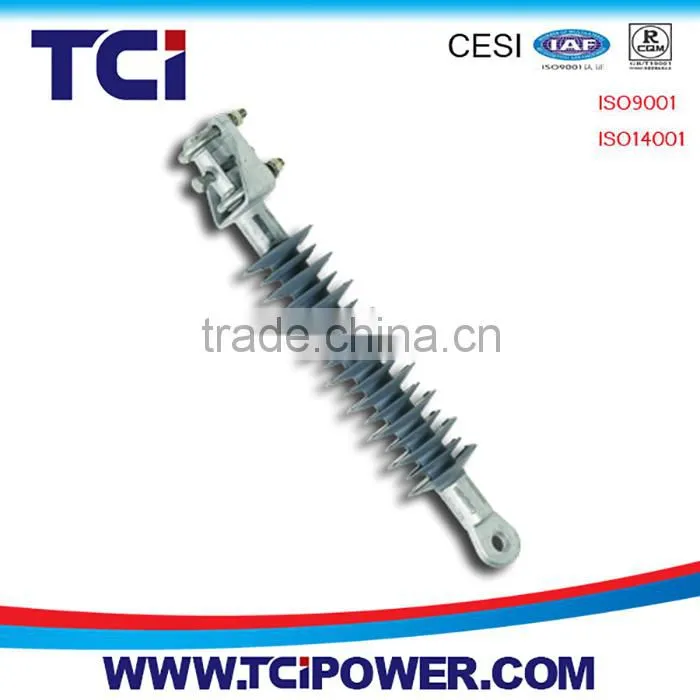

25KV Electrified Railway Composite Insulator



Specifications

1.certificated by IEC ANSI GB ISO9001
2.We can design and produce according to the drawings.

3.we supply insulators with reliable quality reasonable price and good service.

4.We attend 2007 Hannover exhibition, India electricity 2008 exhibition,

   2008 Hannover exhibition,2009 and 2010 Dubai Middle East electricity  exhibition



Material:

1. silicon rubber, composite polymer

2. glass-fiber reinforced epoxy resin rod

3. hot-dip galvanized steel

Technical Specifications



Railway composite inulator

Rated voltage KV	Specified mechanical bending load KN	Section height H,mm	Min shed diameter h,mm	Large shed diameter D,mm	Small shed diameter d,mm	Shed spacing B,mm	Min nominal creepage distance L,mm	Lighting impulse withstad voltage >	Stem power frequency voltage ≥	Wet power frequency voltage ≥	Weight kg
25	8	648±5	440±50	161	116	50	1600	300	180	150	9.3



25kv Railway composite insulator

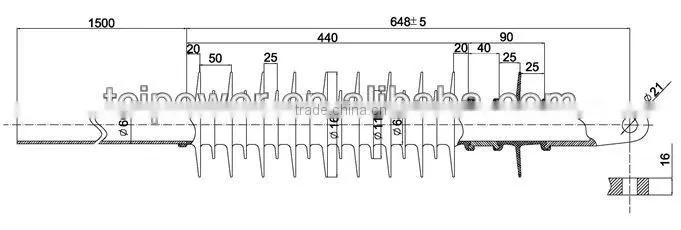

Technical drawings



To see more parameters? Please Click Here~



Advantages of composite insulator



1: Composite insulator has high strength, light weight. Can relieve stress, reduce the installation

   and maintenance of towerof strength, save costs. Because the rod core with tensile strength is

   high so the composite insulator can be very handy.

2: It aging resistance, good. Composite insulator has good corrosion resistance,

   aging resistance, at 70 degrees Celsius is elastic, can be long - term work 20 degrees celsius.

3:It has the advantages of small volume, light weight. Because the composite insulator

   has the advantages of small volume, light weight, and the umbrella disk is flexible, not easy to damage,

   so it brings great convenience to the transportation, installation, maintenance



Please click here to see more railway insulator~

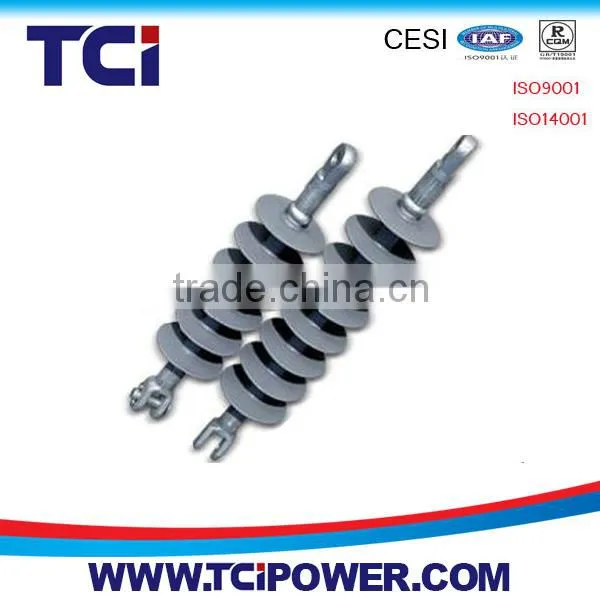

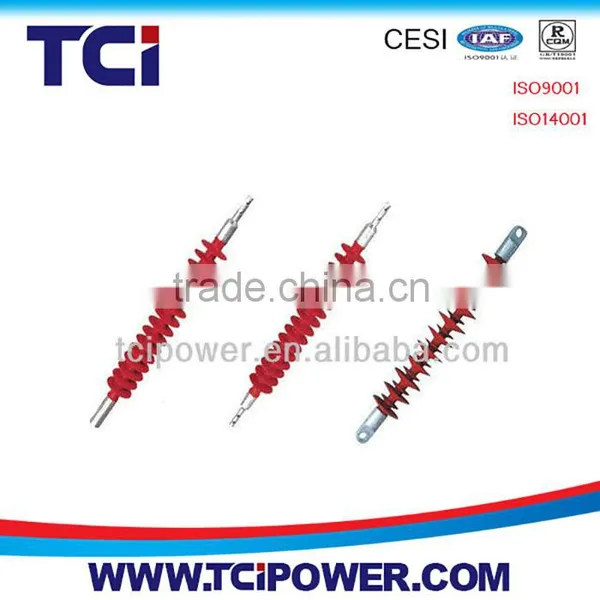

 Product pictures
