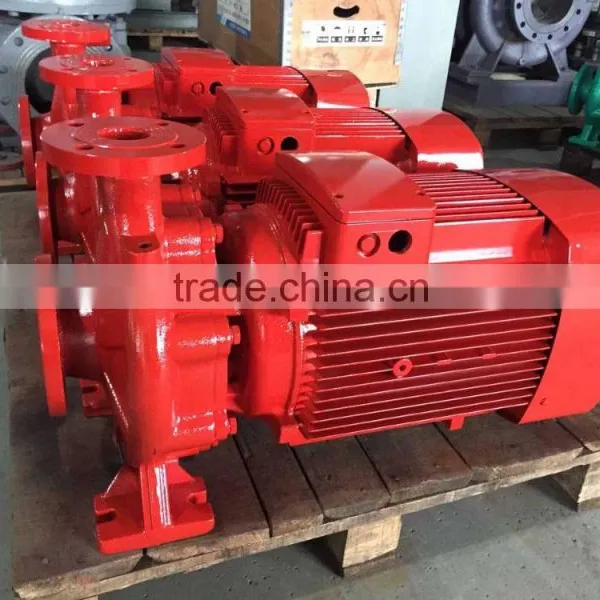

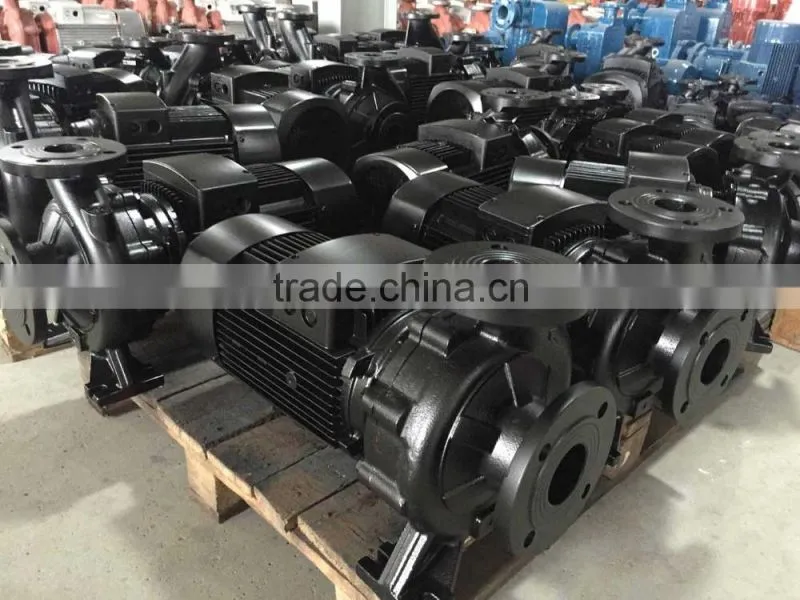

Agricultural & Fire Fighting high pressure water pump industrial pump
- 5000 Piece / Pieces per Month
- Ningbo or Shanghai
- T/T Credit Card
You May Like
-
ST Series Big flow Agricultural standard monoblock industrial water pump
-
Big flow standard monoblock centrifugal pump industrial water pump
-
AUDP505A automatic electric water pump with pressure tank
-
jet 100 water water jet pump price
-
JDP505A china manufacturer self priming jet pump
-
JDP505A self- priming jet pump china water pump price
Product Details
| Place of Origin | Zhejiang, China | Brand Name | UNIPOMPE | |
| Model Number | ST-2 | Theory | Centrifugal Pump | |
| Structure | Single-stage Pump | Usage | Water | |
| Power | Electric | Standard or Nonstandard | Standard | |
| Fuel | Other | Pressure | Low Pressure | |
| Application | Other, Agricultural irrigation |
Product Description

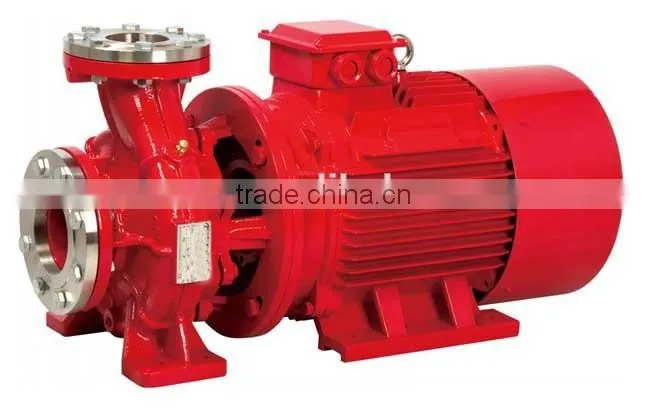

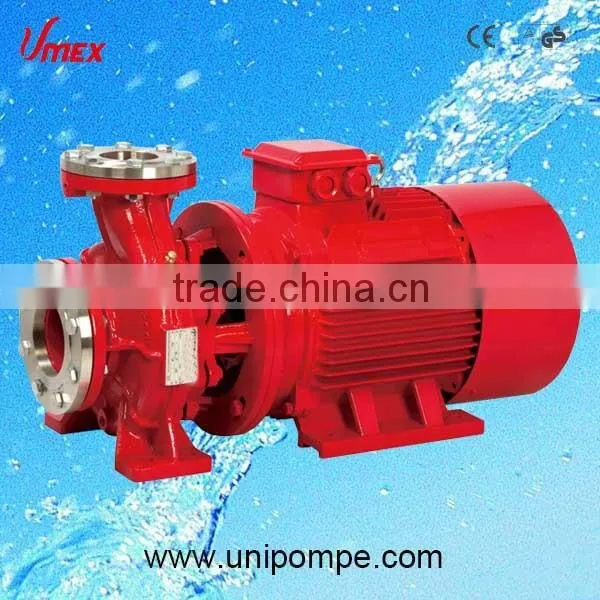

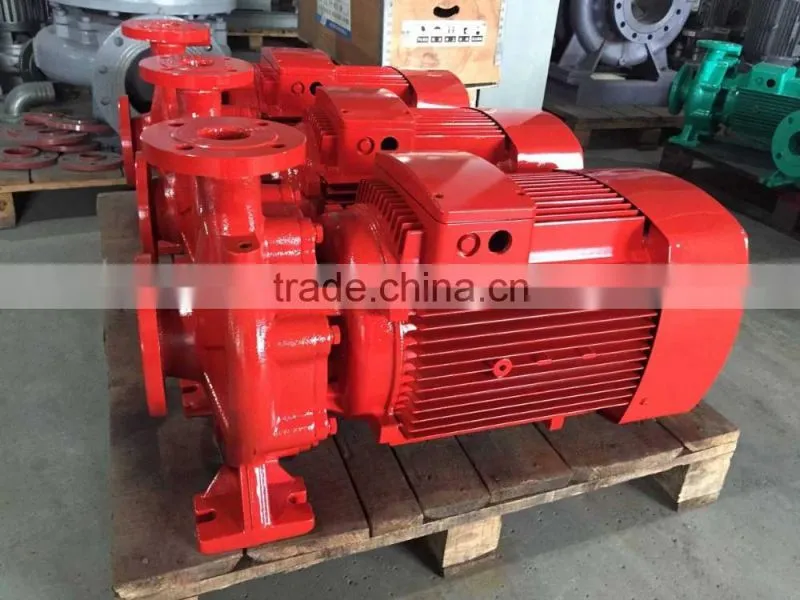

Agricultural & Fire Fighting high pressure water pump industrial pump
RANGE OF PERFORMANCE
8Flow rate up to 6000 l/min (360 m3/h)
8Head up to 99.5m
8Power up to 55KW
8Diameter up to 100mm
LIMITS OF USE
8Manometric suction lift up to 8m
8Liquid temperature between -10 °C and +120°C
8Environment temperature between -10 °C and +40°C
Application
1. For clean non-aggressive liquids without brasives
2. Water supply 3. Cleaning sets 4. Pressure boosting 5. Firefighting sets
6. Irrigation 7. Industrial applications 8. Water circulation in climatisation sets
9. Agricultural applications
MOTOR
8Two –pole induction motor (n=2850rpm)
8Insulation Class B /F
8Protection grade IP44 /54
MATERIALS
8Pump body: Cast iron, with threaded opening ISO 228/1.
8Motor support: Cast iron
8Motor housing: Aluminum

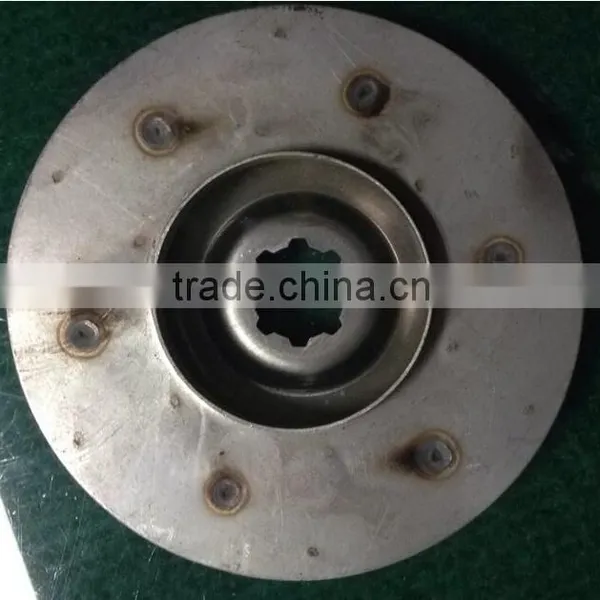

8Impeller: Brass
8Shaft with rotor: Carbon steel or stainless steel
8Mechanical seal: Ceramic/ Graphite
8Bearing: NSK, C&U, or local quality.
WARRANTY: 1 YEAR (according to our general sales conditions)

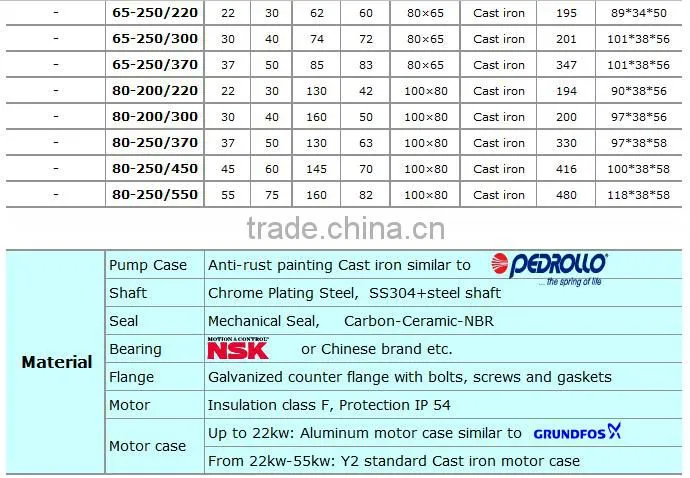

Technical Paremeters
Performance Chart
65-250 series
80-200 Series
80-250 Series
