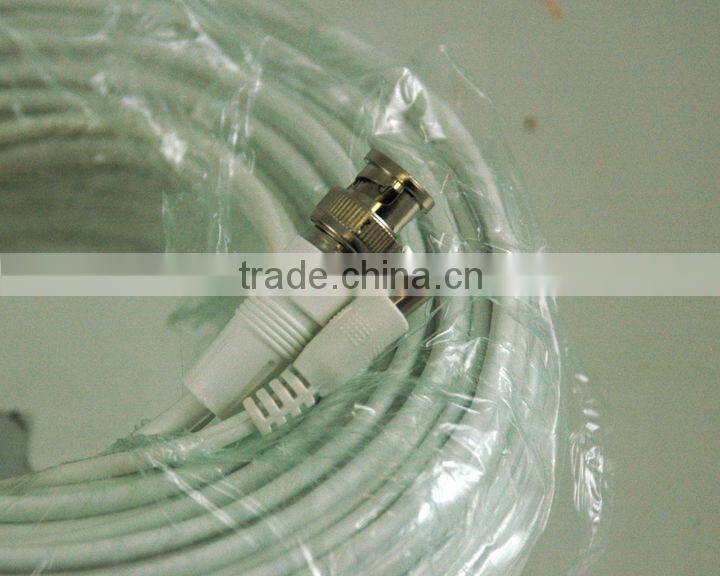

RG7 OFC CCTV coaxial cable with terminal CE, RoHS Made in China
- 1000000 Meter / Meters per Month
- Ningbo/Shanghai
- T/T L/C D/P D/A Credit Card PayPal
- 2015 hot sale RG59 OFC coaxial cable
- RG6 OFC coaxial cable+power cable with CE, RoHS Made in China
- RG59 CU CCTV coaxial cable with CE, RoHS Made in China
- FrankEver Coaxial Cable RG7 CU Coaxial Cable
- Frankever high performance RG6 CU coaxial cable
- FrankEver RG59 CU/CCA coaxial cable china manufacturer
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | frankever | Model Number: | FK-2014 |
Type: | Coaxial | Number of Conductors: | 1 |
Product Description
Specifications
RG7 OFC CCTV coaxial cable with terminal CE, RoHS Made in ChinaFactory Competitive price with good quality
OEM are welcome
Product:
RG7 OFC CCTV coaxial cable with terminal CE, RoHS Made in China
1.Specification:
Physical Dimension | Standard Shield | Tri-Shield | Super-Shield | |||
Component | Inches | mm | Inches | mm | Inches | mm |
Nominal Center Conductor Diameter | 0.051 | 1.30 | 0.051 | 1.30 | 0.051 | 1.30 |
Nominal Diameter Over Dielectric | 0.225 | 5.72 | 0.225 | 5.72 | 0.225 | 5.72 |
Nominal Diameter Over First Shield(Tape) | 0.232 | 5.89 | 0.232 | 5.89 | 0.232 | 5.89 |
Nominal Diameter Over Jacket | 0.319 | 8.08 | 0.323 | 8.20 | 0.338 | 8.59 |
Nominal Jacket Wall Thickness | 0.030 | 0.76 | 0.032 | 0.81 | 0.034 | 0.86 |
Nominal Diameter of Steel Messenger | 0.072 (Single) | 1.83 | 0.072 (Single) | 1.83 | 0.072 (Single) | 1.83 |
0.109 (dual) | 2.72 | 0.109 (dual) | 2.72 | 0.109 (dual) | 2.77 |
2.Attenuation
Attenuation | [@68°F.(20°C.)] | |
Frequency(Mhz) | Maximum(dB/100ft.) | Maximum(dB/100m) |
5 | 0.47 | 1.54 |
55/Channel2 | 1.25 | 4.10 |
83/Channel6 | 1.50 | 4.92 |
187/Channel9 | 2.22 | 7.28 |
211/Channel13 | 2.36 | 7.74 |
250 | 2.56 | 8.40 |
300 | 2.82 | 9.25 |
350 | 3.05 | 10.01 |
400 | 3.27 | 10.73 |
450 | 3.46 | 11.35 |
500 | 3.67 | 12.04 |
550 | 3.85 | 12.63 |
600 | 4.05 | 13.28 |
750 | 4.57 | 14.99 |
865 | 4.93 | 16.17 |
1000 | 5.32 | 17.45 |
3.Mechanical Characteristics:
1) Minimum Breaking 0.0072 365lbs. 166Kgf
2) Strength of Messenger 0.109 1800lbs. 818Kgf
4.Electrical Characteristics:
1) Nominal Impedance 75±3 Ohms
2) Nominal Velocity of Propagation 85%
Application :
1. Coaxial cable for CATV,CCTV systems
2. For satellite systems
3. For security systems
Incore Terms:
USD $1-$5000: EXW
USD $5001-$10000: FCA
Above USD $10000: FOB
Packing details:
1. Packing Lengths: 100m/roll, 200m/roll, 300m/roll, 500m/roll.
2. Inner packing: Wooden reel, plastic reel, and paper reel.
3. Outer packing: Carton box, pull out box, pallet available.
4. Other packing available according to client's request.
Factory Introduction:
Our factory, HAIYAN HUXI WIRE&CABLE CO.,LTD ,was found in 1995,we specialize in designing and manufacturing cable products for 18 years with good quality and pretty competitive price,Especially the CAR WIRING KITS,SPEAKER CABLE,RCA CABLE,HDMI CABLE etc.And we do OEM for customers with reliable quality.
Question & Answer
1. What is your MOQ?
Generally,we make mass production based on MOQ 500pcs, single blister packing, since our sub-supplier ask
for 500pcs MOQ for blister. So if bulk package is ok for you, we can accpet lower order quantity.
2. How about your delivery date?
Normally our delivery date is about 25-30days after payment received.
3. Can you supply sample for custome
We can supply sample for customer's quality checking before placing new order to us, the delivery
cost will be charged on customer's account.
4. How about your price?
We will do our best to offer a good price for our customers, usually our price is worked out according
to the current exchange rate, probable order quantity, most important is your sincerity on cooperation!
