Factory directly selling hot TMT bar rolling mill

Technical project brief introduction

-- Production line with annual capacity: According to your demand,100,000.00MT at least, automatic continuous rolling mill applied.

-- Billet size: 150*150*12000mm

-- Product specifications: Ø8-Ø32mm, 12000mm length rebar

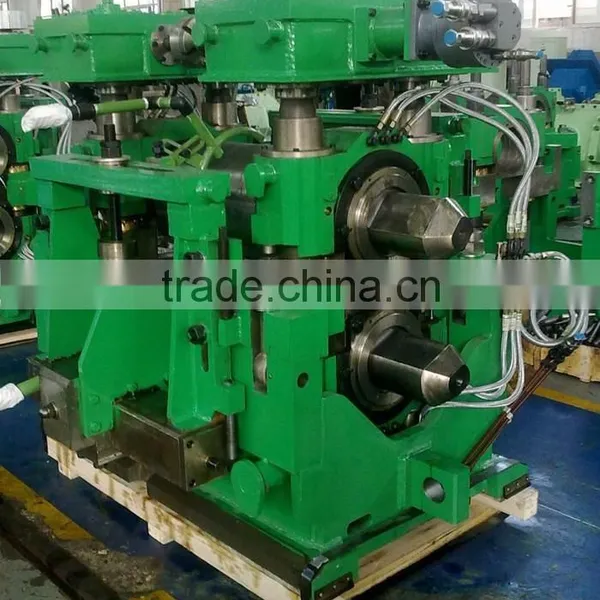

-- Roughing rolling mill stands: Ø550 x6 short stressed rolling mill in Horizontal/vertical arrangement. 6 stands.

-- Intermediate rolling mill stands: Ø420 x6 short stressed rolling mill in Horizontal/vertical arrangement. 6 stands.

-- Finishing rolling mill stands: Ø320 x6 short stressed rolling mill in Horizontal/vertical arrangement. 6 stands. 3 of the rolling mill stands are horizontal/vertical interchangeable rolling mill stands.

-- Rolling speed: 12-18meters/second

1. Product

Material: carbon steel, structure steel, low alloy steel

Product specification: bar/rebar/wire rod Ø 6 to Ø 32 mm

2. Raw material

The production line is supposed to use continuous casting billet with size of 150*150*12000mm The allowable tolerance for section dimension of billet should be in accordance with the regulation of YB-2011-83.

3. Process layout

Roughing mill stands Ø550 X 6 (H/V) No.1 to No.6 mill stands -- Intermediate mill stands Ø420 X 6 (H/V) No.7 to No. 12 mill stands -- Finishing mill stands Ø320 X 6 (H/V) No.13 to No.18 mill stands, all mill stands driven by DC motor and continuous rolling method applied. Rolling mill No.14, 16 and 18 are Ø320 H/V interchangeable rolling mill stands

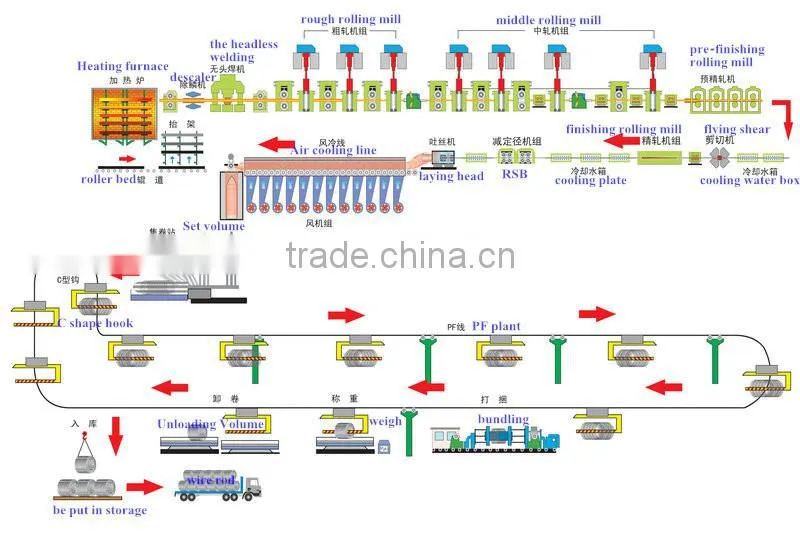

4. Process flow

Company brief introduction

Our services for you :

ü  We customize the products according to customers’ requirements.

ü  If you are not sure about the exact product you want,

we can give you some advices, according to your factory’s area, annual capacity, raw material, your finished products.

ü  We provide the methods of the maintenance of products.

ü  Engineers are available to service machinery overseas.

By work together, we can add value to your business and help to give you the advantage in your market.

Please contact us freely, if here anything we can do for you.

Looking forward to hearing from you.
