Communication Radio Repeater 900mhz mobile gsm signal booster Wirelesee Coverage Solution

Name: Communication Radio Repeater 900mhz mobile gsm signal booster Wirelesee Coverage Solution
Brand: Kingtone
Availability: InStock

FOB Price

USD $1 - $999 / Set

1 Set(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Port Xiamen Port
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:

Fujian, China

Brand Name:

Kingtone

Model Number:

KT-gsm repeater

Product Description

Packaging & Delivery

Communication Radio Repeater 900mhz mobile gsm signal booster Wirelesee Coverage Solution

Delivery Details:1-4 weeks

Product Description

Communication Radio Repeater 900mhz mobile gsm signal booster Wirelesee Coverage Solution

gsm repeater Main Features

1. High linearity PA; High system gain;

2. Intelligent ALC technology;

3.Full duplex and high isolation from uplink to downlink;

4. Automatic Operation convenient operation;

5. Integrated technique with reliable performance;

6. Bandwidth can be configured from 0.2-25MHz in work band.

7.Local and remote monitoring (optional) with automatic fault alarm &remote control;

8. Weatherproof design for all weather installation;

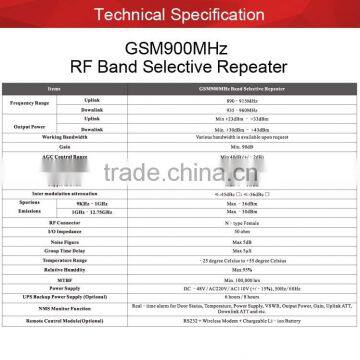

Professional Testing

Communication Radio Repeater 900mhz mobile gsm signal booster Wirelesee Coverage Solution

Items		Testing Condition	Specification
			Uplink	Downlink
Working Frequency(MHz)		Nominal Frequency	890-915MHz	935-960MHz
Frequency Range(MHz)		Nominal Frequency	1.5G or 1.8G
Gain(dB)		Nominal Output Power-5dB	50±3(Station Couple)
			>80(Air Receive)
Output Power (dBm)		GSM modulating signal	0(Station Couple)	37
			33(Air Receive)	37
ALC (dBm)		Input Signal add 20dB	Po≤±1
Noise Figure (dB)		Working in-band(Max. Gain)	≤5
Ripple in-band (dB)		Nominal Output Power -5dB	≤3
Frequency Tolerance (ppm)		Nominal Output Power	≤0.05
Time Delay (us)		Working in-band	≤5
Peak Phase Error(°)		Working in-band	≤20
RMS Phase Error (°)		Working in-band	≤5
Gain Adjustment Step (dB)		Nominal Output Power -5dB	1dB
Gain Adjustment Range(dB)		Nominal Output Power -5dB	≥30
Gain Adjustable Linear(dB)	10dB	Nominal Output Power -5dB	±1.0
	20dB	Nominal Output Power -5dB	±1.0
	30dB	Nominal Output Power -5dB	±1.5
Inter-modulation Attenuation (dBc)		Working in-band	≤-45
Spurious Emission(dBm)	9kHz-1GHz	BW:30KHz	≤-36	≤-36
	1GHz-12.75GHz	BW:30KHz	≤-30	≤-30
VSWR		BS/MS Port	1.5
I/O Port		N-Female
Impedance		50ohm
Operating Temperature		-25°C ~+55°C
Relative Humidity		Max. 95%
MTBF		Min. 100000 hours
Power Supply		DC-48V/AC220V(50Hz)/AC110V(60Hz)( ±15%)
Remote Monitoring Function		Real-time alarm for Door Status, Temperature, Power Supply, VSWR, Output Power
Remote Control Module		RS232 or RJ45 + Wireless Modem + Chargeable Li-ion Battery

Repeater testing:

Communication Radio Repeater 900mhz mobile gsm signal booster Wirelesee Coverage Solution

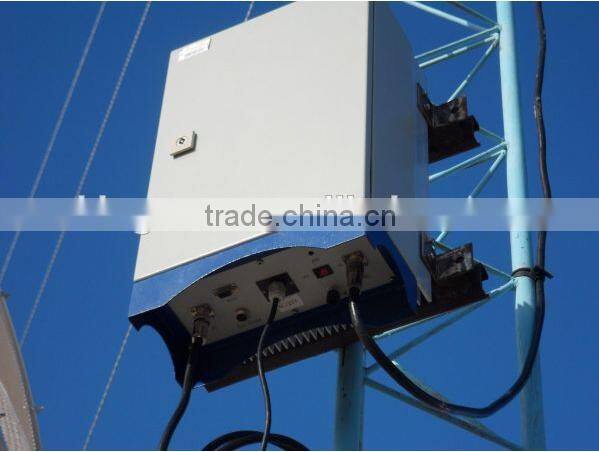

Application Scenario

Communication Radio Repeater 900mhz mobile gsm signal booster Wirelesee Coverage Solution

rf booster,2w/5w/10w/20w repeater,890-915MHz 935-960MHz gsm repeater

rf booster,2w/5w/10w/20w repeater,890-915MHz 935-960MHz gsm repeater is designed to solve problems of weak mobile signal, which is much cheaper than adding a new Base Station (BTS). Main operation of RF Repeaters system is to receive low power signal from BTS via radio frequency transmission and then transmit the amplified signal to the areas where network coverage is inadequate. And the mobile signal is also amplified and transmitted to the BTS via the opposite direction.

Applications

rf booster,2w/5w/10w/20w repeater,890-915MHz 935-960MHz gsm repeater

To expand signal coverage of fill signal blind area where signal is weak or unavailable.

Outdoor: Airports, Tourism Regions, Golf Courses, Tunnels, Factories, Mining Districts, Villages etc.

Indoor: Hotels, Exhibition Centers, Basements, Shopping Malls, Offices, Packing Lots, hospital etc.

It is mainly applicable to such case:

The repeater can find an installation place which can receive pure BTS signal at strong enough level as the Rx Level in repeater site should be more than -70dBm;

And can meet the requirement of antenna isolation to avoid self-oscillation.

Company Information

Kingtone

Kingtone was established in 2006, located in Microwave Communication Base of the National Torch Plan in Quanzhou, China. It is a leading manufactory specializing in wireless network communication equipment and dedicated to R&D,manufacture,salses and services of microwave mixture IC, microwave function components, softwares of radio stations, communication monitoring and internetwork products.

Kingtone pays special attention to R&D, innovation, quality system and brand building. We have achieved seven software copyright certificates registered by the State Copyright Bureau and passed the ISO9001:2008 quality management system. Four Bands have been registered by the State Trademark Bureau and we have been recognized as "innovative and high technology enterprises " by Fujian Science and Technology Department in 2010. Our products are widely used in mobile communication, radio and television, public security, fire control, railways, electric power, mining and other fields; the main products are GSM repeater, CDMA repeater, CDMA450 repeater, IDEN repeater, TETRA repeater ,DCS repeater, PCS repeater, PHS repeater, TD-SCDMA repeater, WCDMA repeater, FDD-LTE repeater,TDD-LTE repeater,WiMAX repeater, MMDS repeater,MUDS repeater, digital TV repeater, cluster 450 M,350 M.and other standards’ repeaters simulation, digital mobile communication repeaters and its functional components.

Kingtone insists on the spirit of “people-oriented, technology first, unity and strive, innovation and dedication” and the quality concept of “golden quality win the world” to continuously provide superior quality products and services to our customers.

We are sincerely willing to cooperate with you. let’s win the future together!

Since 2006,Kingtone has been developing and manufacturing Repeaters including CDMA,GSM,DCS,PCS,UMTS(W-CDMA).Tetra,IDEN,Wimax and LTE ec.Moreover,Kingtone repeater have different types included Band-selective,Channel-selective,Frequency-shifting,Fiber-optical,Trunk-amplifier single and multiple bands for different mobile operators.As well as the repeater,the passive circuits such as Splitters,Couplers,POI,Connectors,Antennas are in operation.

Certifications

At present,Kingtone exhibited the highest quality products and enterprise's comprehensive strength,and Kingtone continues to strengthen technological innovation on repeater products and will launch the new products on the market soon.With your supports and new requirements which can make us improve our service,innovative our technology and consummate the products.

FAQ

rf booster,2w/5w/10w/20w repeater,890-915MHz 935-960MHz gsm repeater

A.Professional Solutions

Q1. I live in a rural area. Rather than having a second phone line for work, I'd like to use my cell phone, but it only works outside.

A. Signals in many rural areas are marginal and cannot penetrate the walls of your home. Kingtone repeater can be easily deployed to provide coverage throughout your house. In a home, the donor unit is generally deployed outside – for example, under the eaves. Because it is more sensitive than your phone and is mounted higher up, it can usually detect signals that your phone can't. The coverage range of 15,000 to 50,000 square feet (2,000 to 4,600 square metres) is adequate for most homes.

Q2. When I'm at the cottage, I'd like to stay in touch, but if I publish my cottage number, everyone will call. I'd like to just use my cell phone. Can you help?

A.Signals in many cottage areas are marginal and cannot penetrate the walls of your cottage. Kingtone repeater can be easily deployed to provide coverage throughout your cottage. In a cottage, the donor unit is generally deployed outside – for example, under the eaves or on a utility pole. Because it is more sensitive than your phone and is mounted higher up, it can usually detect signals that your phone can't. The coverage range of 15,000 to 50,000 square feet (2,000 to 4,600 square metres) is adequate for most cottages.

You get the privacy of your cottage and the convenience of your cell phone. Just remember to turn it off sometimes!

Q3. I'm a production manager in a factory, and no cell phones work inside. I spend most of my time in a couple of spots. Can you help?

A. Factories and warehouses with lots of metal construction often have poor signals. While these buildings may be large, the employees are generally located in only a few areas.

Kingtone repeater can be easily deployed to provide coverage in those spots. The donor unit is deployed on the roof and connected to a coverage unit inside. The coverage range of up to 100,000 square feet is adequate for most trouble spots. Multiple units can be easily deployed to cover office areas and other working locations.

Q4. No cell phones work in the parking garage. While many employees carry cell phones for safety, the phones aren't useful in any of the high-risk areas.

Kingtone repeater an provide coverage in parking garages above and below ground. That's useful for emergencies, and it removes the irritation of calls being dropped when you park your car.

The donor unit is placed where it can detect a signal (this might be outside or in a stairwell). It is connected to the coverage unit, which is placed in the centre of the garage up to 245 feet (75 metres) away.

Q5. I work in an office building with no outside access. The windows don't open, and I can't get to the roof. How can I install?

A. Kingtone repeater can be deployed completely within your office. It is the only in-building in-building solution.

The donor unit needs to be placed somewhere where it can detect a signal (this might be beside a window or the outside wall). The coverage unit is then placed roughly in the centre of the problem area. Ideally, the two units are separated as much as possible.

For esthetic purposes, the entire system can be placed above the ceiling tiles.

B. why choose Kingtone?

Our Advantage

1. Kingtone have passed the certification to the ISO9001 international quality system.

2. We are a factory specializing in mobile signal repeater for more than 10 years, There are many skilled workers and professional experienced techonologists in our factory.If you have any question pls don't hesitate to contact us! After you cooperate with us,you will believe we are more professional than other suppliers.

3. Products's capacity about 1500pcs per month.Our products with high quality and dicect price.

4.We have win high reputation based on best quality products

5.OEM & ODM are welcome!

C. Can we have our logo or company name to be printed on your products or the package?

Sure,your logo can be putted on our products by sticker and if you want your logo and company name to be printed on the cartons for the products,you can send us the artwork by email.

D. Can I visit your factory?

Welcome to visit our factory. We are manufacturer in Quanzhou,Fujian province ,China.You can take flight to Jinjiang Airport.Then,we will pick you up.

Product range:GSM/CDMA/DCS/WCDMA/TETRA/LTE Wireless Full Band Repeater,Fiber Optic Repeater,Frequency Shifting Repeater,Digital/Analog Repeater,Trunk Amplifier etc

Support System	Frequency Range	Output Power
GSM900MHZ	890-915MHz/935-960MHz	2W/5W/10W/20W/30W/40W/50W/60W
DCS1800MHz	1710-1785MHz/1805-1880MHz	2W/5W/10W/20W/30W/40W/50W/60W
PCS1900MHz	1895-1910MHz/1975-1990MHz	2W/5W/10W/20W/30W/40W/50W/60W
GSM850MHz	824-849MHz/869-894MHz	2W/5W/10W/20W/30W/40W/50W/60W
CDMA450MHz	450-457.5MHz/460-467.5MHz	2W/5W/10W/20W/30W/40W/50W/60W
CDMA800MHz	824-849MHz/869-894MHz	2W/5W/10W/20W/30W/40W/50W/60W
CDMA1900MHz	1880-1890MHz/1960-1970MHz	2W/5W/10W/20W/30W/40W/50W/60W
UMTS850MHz	824-849MHz/869-894MHz	2W/5W/10W/20W/30W/40W/50W/60W
UMTS2100MHz	1920-1980MHz/2110-2170MHz	2W/5W/10W/20W/30W/40W/50W/60W
GSM900/1800MHZ	890-915MHz/935-960MHz 1710-1785MHz/1805-1880MHz	2W/5W/10W/20W/
GSM850/1900MHZ	824-849MHz/869-894MHz 1880-1890MHz/1960-1970MHz	2W/5W/10W/20W
GSM900/UMTS2100	890-915MHz/935-960MHz 1920-1980MHz/2110-2170MHz	2W/5W/10W/20W/

Our present manufacturing service:

1. Single-band repeaters of LTE/GSM/CDMA/PCS/DCS/WCDMA

2. Dual-band repeater of GSM/DCS; GSM/WCDMA; CDMA/PCS;

3. Tri-band repeater of GSM/DCS/WCDMA

4.Trunk Amplifier

5. All kind of Antenna/Splitter/Connector/Cable

Keyworks: rf booster,2w/5w/10w/20w repeater,890-915MHz 935-960MHz gsm repeater
