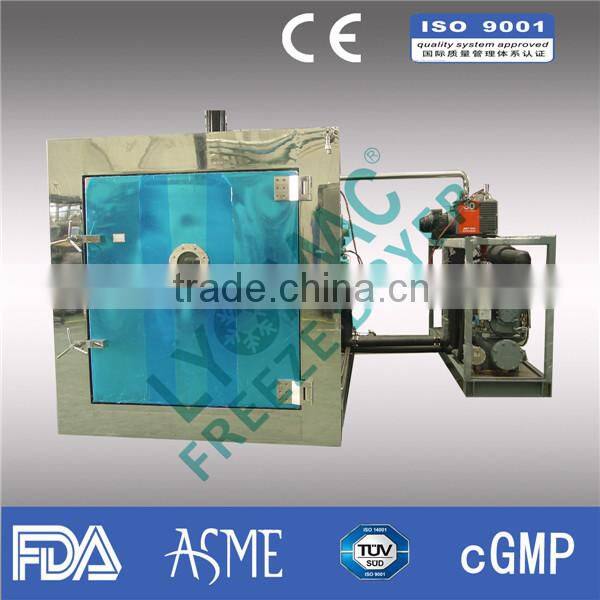

Mainly applied for pharmaceutical industries blood , bacterin ,antibiotics, raw material production. ,The Ice capacity from 500KG to 1000KG. The machine has compact design to reduce the occupation of plant area.
Machine compliance with GMP, all the system has modular design, thus more easily maintenance and operation, and its best choice for mass scale production capacity..
Compact design, Reliability running under high performance, vacuum or air filled stoppering, Eutectic device detector are available. Control system designed with multi-recipe, user can choose different recipe for different process. Pizza door is available with constant loading height. The control system can automatically validate the machine performance before each production cycle, thus the safety for each production cycle can be ensured.
Reciprocating compressor/screw compressor
Rotary vane/oil free vacuum pump
Eutectic point detector.
Organic solvent collector.
Inter-shelf distance adjust mechanism
Vacuum or air filled stoppering(with pressure adjustable)
Auto moisture judgment on control system
CIP/SIP
Chamber isolation valve with mushroom/butterfly type.
Constant height loading.
Pizza door mechanism.
Chamber door with auto/manual lock.
Chamber vacuum adjust function.
Qualification document: IQ,OQ,DQ.
Type | LM-25.0 | LM-30.0 | LM-40.0 | LM-50.0 |
Shelf area (m2) | 24.75 | 30.00 | 42.00 | 49.50 |
Shelf size (L*W*T)(mm) | 1500*1500 | 2000*1500 | 2000*1500 | 2200*1500 |
Useable Shelf No. | 11 | 10 | 14 | 15 |
Vial loading quantity Φ16 Φ22 | 100000 50000 | 120000 60000 | 175000 85000 | 200000 100000 |
Inter. Shelf distance(mm) * | 100 | 100 | 90 | 90 |
Ice capacity (KG) | 500 | 600 | 800 | 1000 |
Shelf ultimate cooling temperature(°C) * | -55 | -55 | -55 | -55 |
Condenser ultimate cooling temperature(°C)* | -75 | -75 | -75 | -75 |
Ultimate vacuum(Pa) | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 |
Installation dimension(L*W*H)(mm) | 6000*1750*3800 | 6800*2000*3800 | 6800*2000*4200 | 7500*2000*4200 |
Weight(Kg) | 10000 | 12500 | 15000 | 17500 |
Power(KW) | 135 | 147 | 175 | 180 |
