AAA Grade taper tool pipe threading machine lathe ck160

FOB Price

USD $13,500 - $14,000 / Unit

1 Unit(Min.Order)

Supply Ability 80 Unit / Units per Month
Port Qingdao/Shanghai/ningbo/guangzhou
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Horizontal
CNC or Not	CNC	Automatic Grade	Automatic
Max. Swing Diameter	610MM	Place of Origin	Shandong, China
Brand Name	YZ CNC	Model Number	CK160 CNC pipe thread lathe
Voltage	380V 220v 415v	Power(W)	11KW
Dimension(LWH)	2650mm1450mm1700mm	Weight	2600kgs-3800kgs
Certification	CE ISO	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

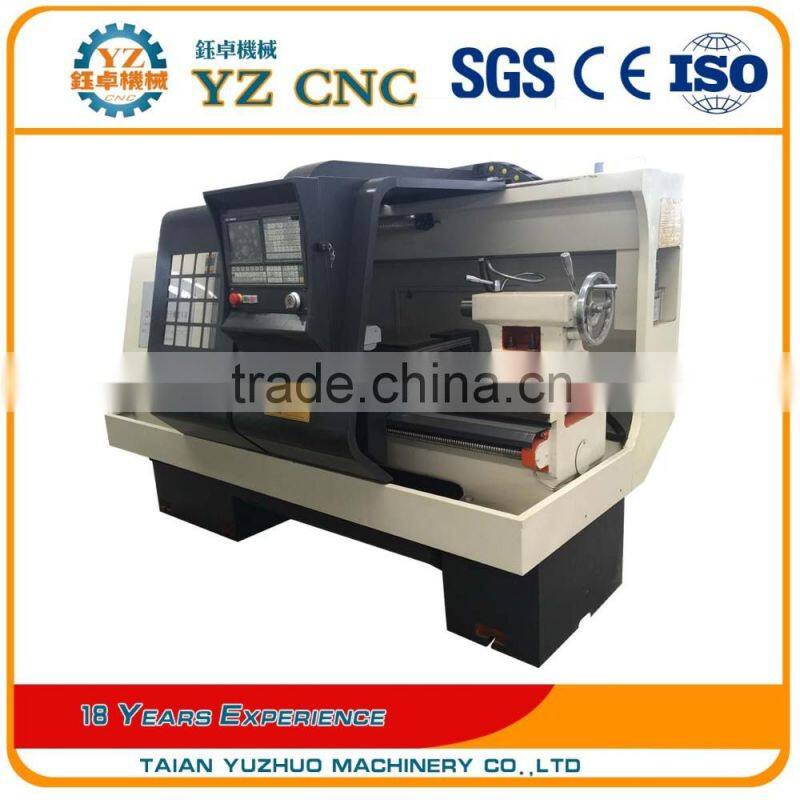

AAA Grade taper tool pipe threading machine lathe ck160

Item	Unit	CK160
Max. swing diameter on the bed	mm	Φ625
Max.turning length	mm	1000,1500
Bed rail width	mm	500
Maximum distance across the dual chuck	mm	1275
The main drive in the form		Servo stepless change speed
Range of spindle speed	r/min	20-1000
Max.outside diameter of pipe	mm	φ155
Spindle bore	mm	φ160
Main motor power	kw	7.5
X/Z Servo motor torque	N.m	4/6
X/Z quick travel	mm/min	4000/4000
Chuck form		Three-Jaw chuck
Chuck diameter	mm	φ400
Positioning accuracy	mm	0.032
Repeatability positioning accuracy	mm	0.011
Turret form		Four-station ,Vertical
Tool section size	mm	25×25
Tailstock quill diameter	mm	Φ75
Tailstock quill stroke	mm	150
Tailstock sleeve taper		MT5
Machine weight	Kg	3200
Outline size (L × W× H)	mm	2650×1550×1700
CNC system		standard:GSK980 optional:FANUC SIEMENS

1-CNC system: Siemens, Fanuc,KND

2-Hydraulic chuck

3- pneumatic chuck

4-Horizontal six-station turret and eight-station turret

1-System:GSK928TD-L,servo motor and drive

2-3-jaw chuck,

3-Four station electric tool post.

4-Manual tailstock

5-Cooling system;

6-Lighten system;

7-Automatic lubrication system;

Aftersales services:

Warranty is one year, we would offer the parts(quality problem) free of charge during this period,freight collet.

Note :

GSK ,Servo driven, motor and transformer, Warranty is 3 years
