ISO AMTS Auto Charpy impact testing machine 300J/500J with low temperature groove

 Charpy impact testing machine

Function and characteristics

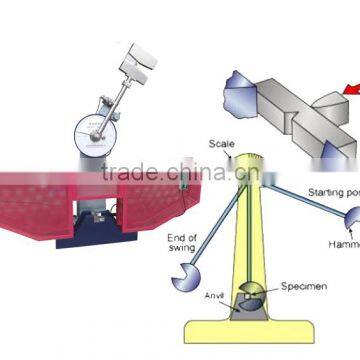

The machine is mainly used for the determination of metallic materials to resist the impact performance under dynamic load in order to determine the material properties under dynamic load.
The machine is semi-automatic testing machine, easy operation, high efficiency, raise pendulum, impact, put down the pendulum are the electrical control, and can use the residual thrust energy of the sample automatically raised the pendulum make the next test Preparation, especially for laboratory of do continuous impact test and metallurgy, machinery manufacturing and other industries of do a lot impact testing. JB-300B-type impact test machine meet the national standard GB/T3808-2002 "test of pendulum type impact testing machines", according to national standard GB/T229-2007 "metal Charpy notched impact test method” to do impact test of metallic materials.

Standards:

ASTM  E23, ASTM D3420  ISO148-2006 and GB/T3038-2002, GB/229-2007.

Main Specifications:
1, the impact energy: 150J, 300J
2, pendulum angle: 150 °
3, the pendulum shaft center to the impact point distance: 800mm
4, the impact speed: 5.4m / s
5, the specimen bearing span: 40mm
6, jaw fillet: R1-1.5mm
7, the impact of the blade fillet: R2-2.5mm
8, the impact of knife thickness: 16mm
9, angle accuracy: ± 0.1 °
11, sample size: 10 × 10 × 55mm
12, Dimensions: 1500 mm×850 mm×1340 mm
13, the test machine weight: 450Kg
14, Power: AC Three-phase 380V ± 10% 50HZ 5A
15, environmental conditions: No corrosive media environment, no vibration, no strong electromagnetic fields.

Standard Accessories

1 Main unit----------1 set

2 Pendulum

4 Span specimen plate (L = 40mm)----1 pc
5 Specimen centering plate (L = 40mm)(U, V)----1 pc
6 Stripping attachment----1 pc
7 Internal hexagonal wrench (S=30mm)---1 pc
9 Anchor bolts (M16x300mm)---4 pcs

10 Impact testing security guards----1 pc

11 PC software & PC& Printer
