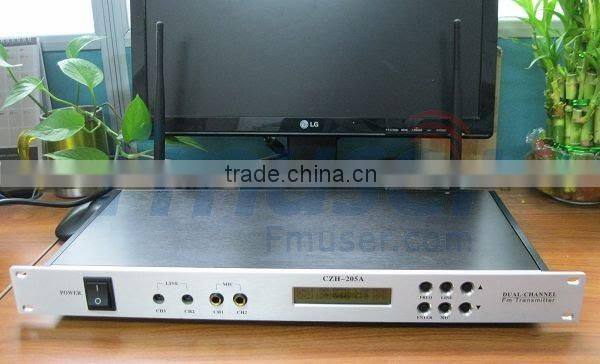

Dual Channel 0.5w 1U Fmuser CZH-205A FM transmitter

Description:

-------------------------------------------------------------------------------------------------------------

Fmuser FM transmitter is a professional grade low power FM transmitter operating in the commercial FM band (76 - 108MHz).
It is intended for indoor (churches, theaters, cinemas, auditoriums, conference halls , Hostels, Commercial Plaza ,Shopping Center,Government Building, Sports Center, Fitness Center,Conference) or outdoor (business parkings, tourist attractions, talking signs, Rural radio, Outdoor Advertising ,Outdoor Activities ,Orienteering) short range broadcasting in a variety of applications:  hearing assistance, translation, information, sound re-enforcement.
Its outstanding RF and audio performances, ruggedness, reliability and versatility make FMuser FM transmitter stand out from conventional hearing assistance systems.

Features

-------------------------------------------------------------------------------------------------------------

• AC input:110V~220V

• Channel:Dual Channel

• Frequency:76~108MHz

• Modulation:WFM

• Frequency Step:0.1MHz

• Frequency stabilization method: PLL

• deviation:±75KHz

• RF Output:0.5 W

• Output Impedance:50Ω

• Harmonic radiation:-60db

• Frequency Response:50~15000Hz

• Distortion:0.2%

• Pre-emphasis delay:50us

• Stereo Separation:40db

• Input level:-15dbV

• Input impedance:50KΩ

• SNR:65db

• Match the microphone:ECM mic

   •Size:480*200*44mm

• Color:silver

• Weight:3.5kg

Technical Specifications

-------------------------------------------------------------------------------------------------------------

• input voltage:AC110/220V

• operating current:500mA

• Frequency:76~108MHz

• Modulation:WFM

• Frequency Step:0.1MHz

• Frequency stabilization method:PLL

• deviation:±75 KHz

• RF Output:0.5W

• Output Impedance:50 Ω

• Harmonic radiation:-60db

• Frequency Response:50~15000Hz

• Distortion:0.2%

• Pre-emphasis delay:50us

• Stereo Separation:40db

• Input level:-15dbV

• Input impedance:50KΩ

• SNR:65db

• Size:480*200*44mm

• Color:Silver

• Weight:3.5kg

• Working temperature:0~45 °C

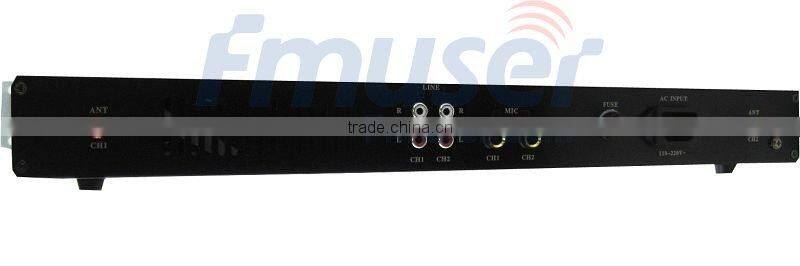

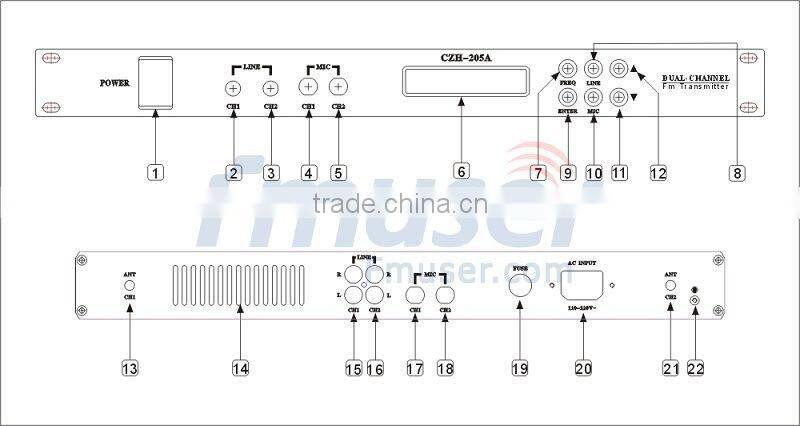

Front and Back panel

-------------------------------------------------------------------------------------------------------------

1. AC POWER SWITCH: turns the FM Transmitter ON or OFF

2. CH1 AUDIO INPUT: connect your audio source here (Input level:-15dbv ; Connector:3.5mm)

3. CH2 AUDIO INPUT: connect your audio source here (Input level:-15dbv ; Connector:3.5mm)

4. CH1 MIC INPUT: connect your Electret condenser microphone here (Connector:3.5mm)

5. CH2 MIC INPUT: connect your Electret condenser microphone here (Connector:3.5mm)

6. Control DISPLAY: Displays the programmed transmitting statu

7. Frequency Key: Into the manu to change frequency CH1 or CH2 (76.0 – 108.0 MHz)

8. Line key: Into the manu to change line in CH1 or CH2

9. Enter key: Confirm the enter frequency or line or mic

10.Mic key:Into the manu to change line in CH1 or CH2

11.Up key: Change the frequency Up or line/mic volume up

12.Down key: Change the frequency Down or line/mic volume down

13.CH1 TRANSMITTING ANTENNA:Connect the antenna (50Ω SMA female)

14.CPU FAN

15.CH1 AUDIO INPUT: connect your audio source here (Input level:-15dbv ; Connector:RCA)

16.CH2 AUDIO INPUT: connect your audio source here (Input level:-15dbv ; Connector:RCA)

17.CH1 MIC INPUT: connect your Electret condenser microphone here (Connector:3.5mm)

18.CH2 MIC INPUT: connect your Electret condenser microphone here (Connector:3.5mm)

19.FUSE: Fuse protect the transmitter

20.AC Power input: AC 110-220V

21.CH2 TRANSMITTING ANTENNA: Connect the antenna (50Ω SMA female)

22.Ground
