Price Universal Testing Machine

FOB Price

USD $8,000 - $15,000 / Unit

1 Unit(Min.Order)

Supply Ability 400 Unit / Units per Month
Port Qingdao
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	TENSON
Model Number	WAW-600	Power	Hydraulic
Usage	Universal Testing Machine

Product Description

Specifications

1. Model: WAW-600
2. Load capacity: 600kN, 60Ton
3. Tensile, compression, bending, shearing
4. ISO7500-1, ASTM E4

Price Unievrsal Testing Machine

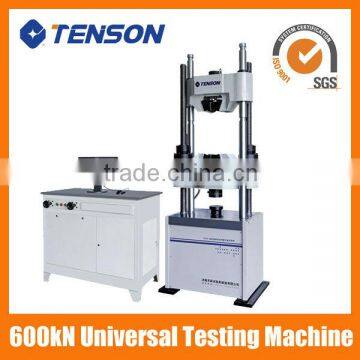

Hydraulic Servo Universal Testing Machine 600kN, 60Ton

1. Introduction

This WAW Series Computerized Electro-hydraulic Servo UTM is fully computer controlled; the testing dates and testing curves can be displayed by computer and printed by printer.

It is widely used for tensile, compression, bending and shearing test for metal materials and also used for compression and bending test of non-metal materials, like cement and concrete materials. With special accessory, it can also be used for mechanical property test of fastener, steel wire rope and components .The machine is calibrated according to ISO 75001 and ASTM E4. It can do many different kinds of test according to different standards, ISO6892, ISO7438, ASTM A370, ASTM E8 and BS EN standards.

2. Main technical parameters

Parameter Model	WAW-300	WAW-600	WAW-1000	WAW-2000B
Max. testing force	300kN	600kN	1000kN	2000kN
Accuracy	±1% (±0.5%, optional)
Round specimen diameter range	φ10-φ32mm	φ13-φ40mm	φ13-φ60mm	Φ20-φ70mm
Flat specimen thickness range	0-15mm	0-30mm	0-40mm	10-70mm
Flat specimen width range	70mm	80mm	120mm	120mm
Tensile space	750mm	800mm	650mm	900mm
Compression space	650mm	700mm	600mm	860mm
Upper and lower compress plates size	φ130mm	φ180mm	210×210mm	φ240mm
Distance of bending by pass roll	30-580mm	30-580mm	30-800mm	30-580mm
Max. piston stroke	250mm	250mm	250mm	250mm
Power supply	380/220V±10%, 50/60Hz, three phase
Work environment	10-40°C, Relative humidity≤80%
Dimension of host machine	905×580×2260mm	905×580×2325mm	1070×850×2530mm	1500×910×3380mm
Dimension of control cabinet	600×600×1165mm
Weight	2720kg	3000kg	4100kg	9000kg
