04FSN 50mw fm Broadcasting Transmitter

Specifications

Applications

-------------------------------------------------------------------------------------------------------------

50mw Fmuser CZH-05B FM broadcast radio transmitter Silver

Description:

-------------------------------------------------------------------------------------------------------------

Fmuser FM transmitter is a professional grade low power FM transmitter operating in the commercial FM band (76 - 108MHz).
It is intended for indoor (churches, theaters, cinemas, auditoriums, conference halls , Hostels, Commercial Plaza ,Shopping Center,Government Building, Sports Center, Fitness Center,Conference) or outdoor (business parkings, tourist attractions, talking signs, Rural radio, Outdoor Advertising ,Outdoor Activities ,Orienteering) short range broadcasting in a variety of applications:  hearing assistance, translation, information, sound re-enforcement.
Its outstanding RF and audio performances, ruggedness, reliability and versatility make FMuser FM transmitter stand out from conventional hearing assistance systems.

Features

-------------------------------------------------------------------------------------------------------------

• User programmable frequency

• Easily choose your frequency LCD and buttons,No manual tuning required

• Japan Phase Lock Loop (PLL) Technology

• Works with standard FM receivers

• Coverage of 700 feet or more with portable FM receiver, 2500 feet or more with car radio

• Hi-Fi Steroe audio quality

• Adjustable input level with over modulation indicator

• Stereo 1/4-F audio input connector

• Choice of GP antenna or telescopic antenna

• FCC part 15 and Industry Canada Bets-1, RSS-210 and RSS-123 approved

• Temperature protect

• Standing Wave Protect

•5 years warranty

Technical Specifications

-------------------------------------------------------------------------------------------------------------

• DC input:2.1mm

• input voltage:DC12V

• operating current:150mA

• Frequency:76~108MHz

• Modulation:WFM

• Frequency Step:0.1MHz

• Frequency stabilization method:PLL

• deviation:±75KHz

• RF Output:0.05W

• Output Impedance:50Ω

• Harmonic radiation:-60db

• Frequency Response:50~15000Hz

• Distortion:0.2%

• Pre-emphasis delay:50us

• Stereo Separation:40db

• Input level:-15dbV

• Input impedance:50KΩ

• SNR:65db

• Match the microphone:ECM mic

• Size:113*88*38mm

• Color:Silver

• Weight:0.27kg

• Working temperature:0~55

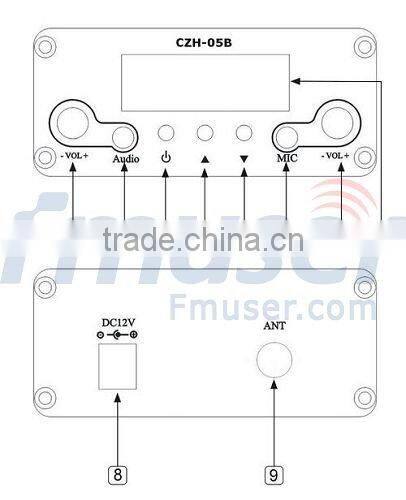

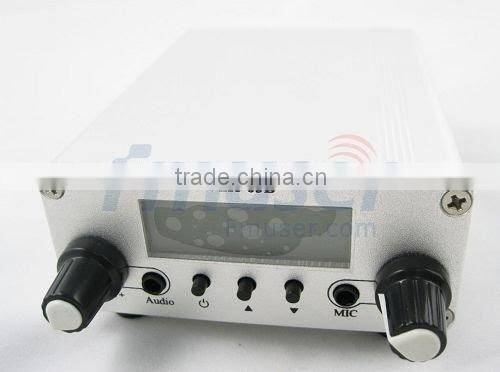

Front and Back panel description

-------------------------------------------------------------------------------------------------------------

1. AUDIO INPUT LEVEL: controls the audio input level (Tunner)

2. AUDIO INPUT: connect your audio source here (Input level:-15dbv ; Connector:3.5mm)

3. DC POWER SWITCH: turns the transmitter ON or OFF

4. FREQUENCY UP: transmitting frequency UP

5. FREQUENCY DOWN: transmitting frequency DOWN

6. MIC INPUT: connect your Electret condenser microphone here (Connector:3.5mm)

7. MIC INPUT LEVEL: controls the MIC input level (Tunner)

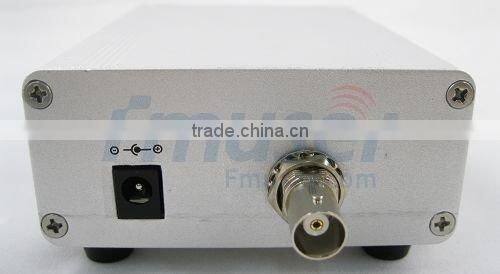

8. DC INPUT: Connect the DC adaptor (supplied) here (12V 1A,Core 2.1mm)

9. TRANSMITTING Connector:Connect the GP antenna OR telescopic antenna (50Ω BNC)

10. FREQUENCY DISPLAY: Displays the programmed transmitting frequency (76.0 – 108.0 MHz)

About Us

-------------------------------------------------------------------------------------------------------------

FMUSER is a high tech cooperation dedicated in providing solution project designing, technology exploring, manufacturing and marketing of fm transmitters. FMUSER has been in cooperation with plenty of countries overseas manufacturing fm transmitters as per customers’ needs, the business map reached to countries and regions like United States, United Kingdom, Japan and lots of countries from European and Southeast Asia. FMUSER is currently one of the biggest manufacturer of fm transmitters in china.

CINEMAS are the clients who use this fm transmitter

Cineplex-Odeon uses Fmuser transmitters to broadcast the sound content of a movie inside a theatre. The audio output from the projector sound processor is linked to the Fmuser transmitter and movie spectators are encouraged to bring their own FM walkman for private listening during the movie projection. Not being bothered by next seat noisy neighbours, the spectator will experience a tremendous sonic enhancement, being able to hear all the small details that are impossible to distinguish from the house speakers. The full stereo spectrum is always perfect no matter where the spectator is located inside the theatre. Hearing impaired people will also benefit from such a concept. Multi lingual applications are also possible due to the new DTS technology.

Products list

Permit licenses

-------------------------------------------------------------------------------------------------------------

In Canada:There is a permit or license required on your particular application using transmitters, so please contact your nearest office Industry Canada to obtain related information.

In the U.S.A: There is a permit or license required on your particular application using transmitters, so please contact your nearest FCC office to obtain related information.

Update Date:2011-05-14 09:29:34
