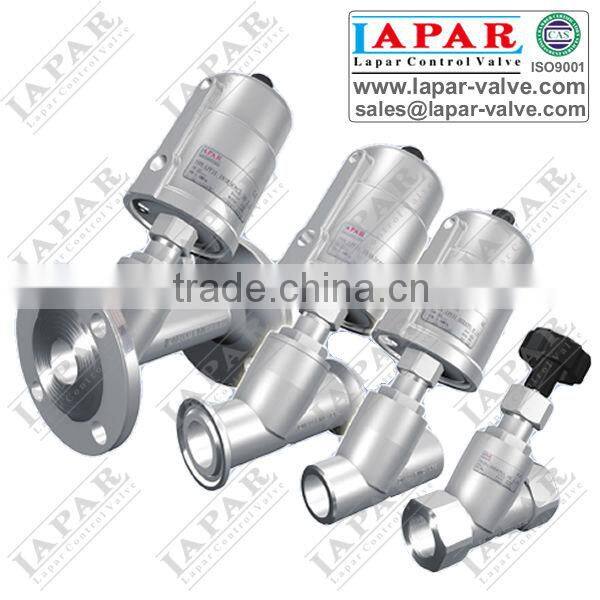

LPF11 Pneumatic Angle Seat Valve

Name: LPF11 Pneumatic Angle Seat Valve
Brand: Lapar Valve
SKU: 114160041
Availability: InStock

Shanghai Lapar Control Valve Co., Ltd.

US$ 10 - 1,000 MOQ: 1 Set

Key Specifications

Standard or Nonstandard:

Standard

Structure:

Angle

Pressure:

Medium Pressure

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Standard or Nonstandard Standard

Structure Angle

Pressure Medium Pressure

Power Pneumatic

Material Stainless Steel

Temperature of Media High Temperature

Media Other, Gas or Water or Oil

Port Size DN10-DN80

Place of Origin Shanghai, China

Model Number LPF11 series

Brand Name Lapar Valve

Specifications

Pneumatic angle seat valve
1. Long life, high sensitivity
2. Can rotate 360 degrees
3. Good flow characteristics

Pneumatic angle seat valve

1. Applicable to Any inert gases, corrosive fluids, gases

2. Long life, high sensitivity

3. Can rotate 360 degrees

4. Good flow characteristics

LPF11 Pneumatic angle seat valve - Lapar Valve

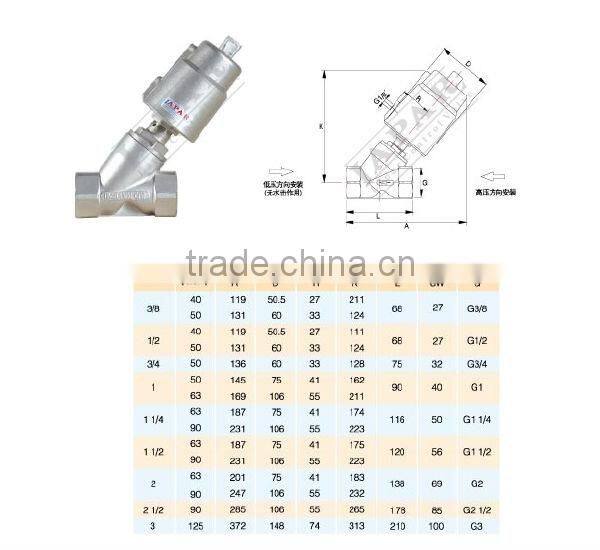

Parameter

Actuator	Pneumatic (5~7Bar), Handwheel(option)
DN	10~80mm
Pressure	1.6Mpa
Temperature	PTFE: -29~178°C
Contact	Wafer, Thread, Welding, Clamp
Material of body	316, 304, 316L
Material of Spool	316, 304, 316L
Material of Sealing	PTFE
Medium	Any inert gas, Corrosive fluid (water, Oil etc) and all Gas
Option	Limited Switch, Locator, Solenoid Valve, Pressure-relief Valve
