Good insulation Silicone fiberglass sleeve
- 3000000 Meter / Meters per Month
- QINGDAO
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | Strong | |
| Model Number | fiberglass electric cable sleeve | Type | Other, Insulation Sleeving, Silicone coated | |
| Material | Fiberglass | Application | High Temperature | |
| Rated Voltage | 1.5kv,2.5kv,4kv,7kv,10kv | Tensile Strength | 18N/cm |
Product Description

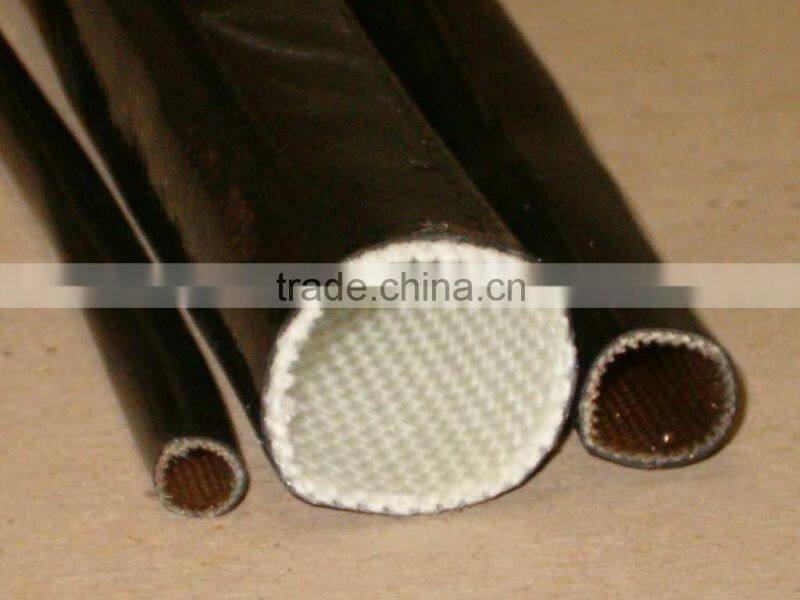

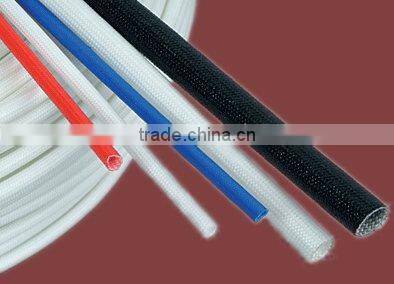

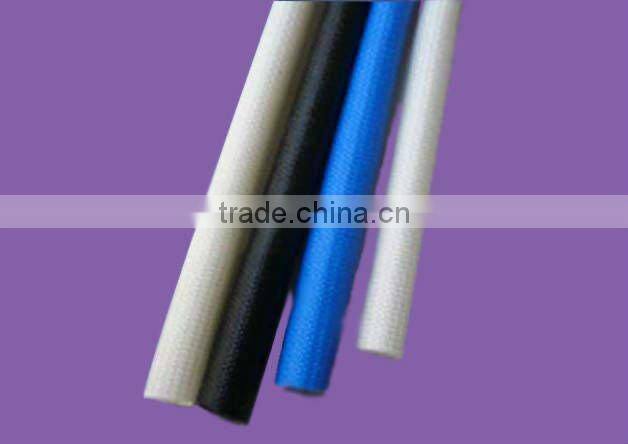

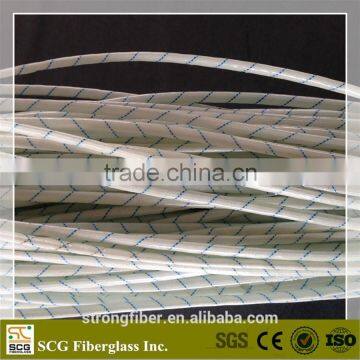

Good insulation Silicone fiberglass sleeve
We could supply Silicone fiberglass sleeving/ Polyurethane fiberglass sleeving/ Acrylic fiberglass sleeving and Heat treat fiberglass sleeving.
| Specification | ||||
| Inside diameter(mm) | Tolerance(mm) | Wall Thickness(mm) | ||
| DAF-1 | DAF-2 | DAF-3 | ||
| 0.5-2.5 | +0.3 -0.0 | 0.40±0.12 | 0.41±0.12 | 0.43±0.12 |
| 3.0-4.5 | 0.46±0.13 | 0.408±0.13 | 0.51±0.13 | |
| 5.0-8.0 | 0.50±0.15 | 0.52±0.15 | 0.55±0.15 | |
| 9.0-12 | 0.60±0.18 | 0.62±0.18 | 0.66±0.18 | |
| 14.0-16.0 | 0.62±0.18 | 0.65±0.18 | 0.80±0.18 | |
Sililcone fiberglass sleeving
We could provide you DSG with different voltages: DSG-1(1.5KV), DSG-2(2.5KV),DSG-3(4KV),DSG-4(7KV),DSG-5(10KV)
Thermal Class:H
Color: we could provide you the color as your requirements.
Application: Silicone fiberglass sleeving is widely used in wiring insulation and mechnical protection for electric motors, transformers and electrical instruments.
Polyurethane fiberglass sleeving
DPG is fiberglass braided sleeving coated with polyurethane resin and cured by high temperature.
Good features: good mechanical resistance, fair softness and elasticity, soldering heat resistance, watertight, good dielectric strength.
Standard Voltage: DPG-2(2.5kv), DPG-3(4KV)
Thermal Class: F
Applications: It's widely used in wiring insulation and mechanical protection for class F electric motors, transformers, appliances, generators,wireless sets and other electrical instruments.
Color: Nature color is amber. Other available color according to customers' request.
Acrylic fiberglass sleeve is fiberglass braided sleeve coated eith acrylic resin and cureed with high temperature. It has good mechanical property, water resistence and dielectric strenghth.
PVC fiberglass sleeving is fiberglass sleeving coated with PVC resin, with very good flexibility and dielectric features, it is widely used as insulating and protection material for motor and electric appliance.

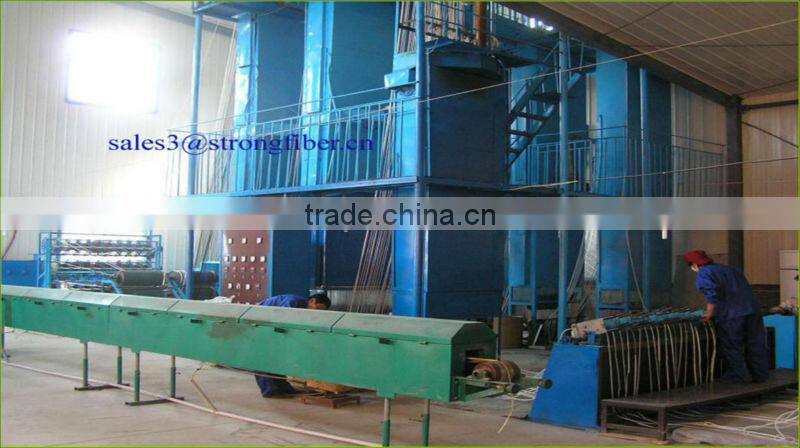

Qingdao Strong Imp&Exp Corp is located in Shandong province of China, It belongs to Strong Fiber Composite Group, which is one of the leading manufacturers and exporters of fiberglass products with five factories domestic.
We had built a bonded warehouse in Qingdao Free Trade Zone in order to provide the clients goods more fast and convenient. This advantage provides the company with vast opportunities for fast development.
We have been in the line of producing and exporting fiberglass products for about ten years, and has a full product line of fiberglass from producing thread twisting to weaving various products. Now Qingdao Strong Imp&Exp Corp could produce various kinds of fiberglass products more than 50000 tons per year. The products are sold to over 30 provinces in China and exported to nearly 30 countries and regions including North America, Middle East, Europe, Southeast Asia and others.
1. I need special type, can you produce for me?
Yes, we have a complete production set and about 15 years old exprience, we can produce by your's requirement.
2. what certificates you have?
We have ISO, CE, DNV quality assurance, you can skim our website:
3. How long your delivery time?
It depends on quantity, usually within 2--4 weeks after we get the advance.
4. You are manufactures?
Yes, we have factory, welcome you visit our factory!
