G5 ZrO2 ceramic bearing balls for bearing

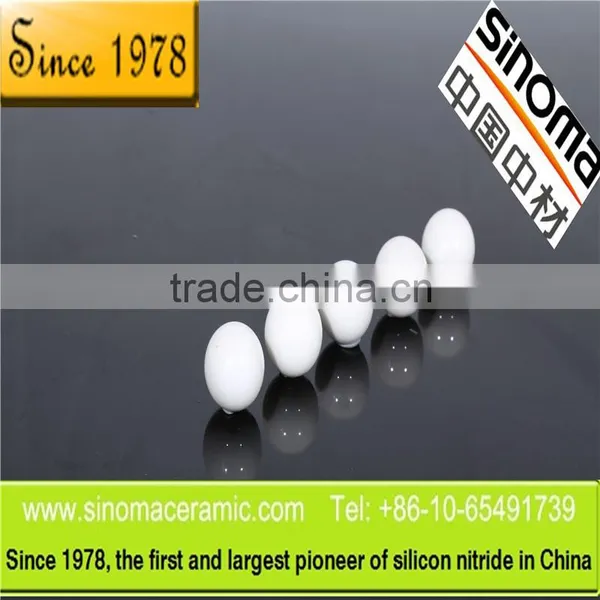

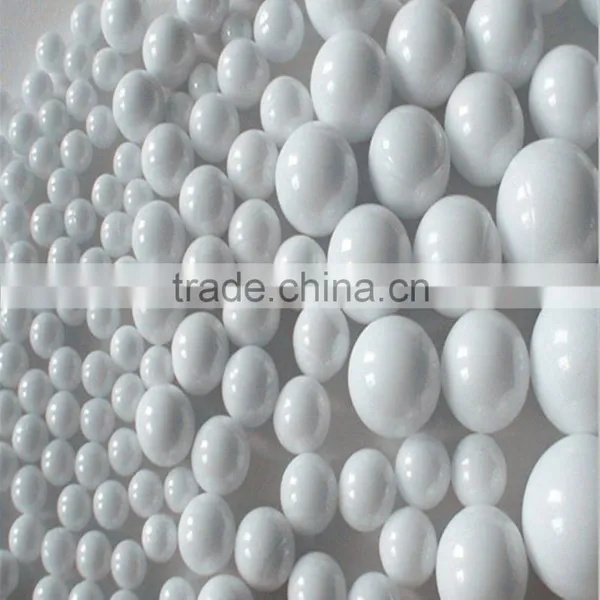

1.Pictures of G5 ZrO2 Ceramic Balls for Bearing

2.Descriptions of  G5 ZrO2 Ceramic Balls for Bearing

Advantage:

1.Excellent  and stable quality.

2.Plenty of stocks.

Material: Zirconia ceramic

Size Range: 1mm~150mm

Grade: G5~G40

Characteristics of Zirconia Ceramic Balls:

1. Corrosion resistance, which can also be used in acid and alkali situation.

2. High temperature resistance, which remain the same strength and hardness when the temperature nearly comes to 550℃.

3. Nonmagnetic, electrical insulation, which can be used in magnetic field.

4. ZrO2ceramic balls have low density of 6.05 g/cm3,it is approximately 20% lighter than steel ball, which decrease the centrifugal force on the deep groove, in order to reduce the wear and tear.

5. Excellent resistance to oxidation and metal erosion,ZrO2 ceramic balls also can be used without lubricate environment.

6. Low frication coefficient and high surface finish.

Due to the features of high fracture toughness, high bending strength, high wear resistance, excellent heat insulating property and proper thermal expansion coefficient that closes to steel's, Zirconia ceramic balls are widely employed in ceramic bearing fields. Furthermore, the cost is much lower than silicon nitride ceramic.

Zirconia Material Properties

Performance Comparison of Structural Ceramics and Ordinary Steel

 Grade of zirconia ceramic balls

3.Application of  G5 ZrO2 Ceramic Balls for Bearing

 Application fields: High precise ceramic bearings, high temperature bearings, vacuum bearings, nonmagnetic bearings, chemical pump, high temperature pump, ceramic valve ball, measure ball,etc.

4.Production line of  G5 ZrO2 Ceramic Balls for Bearing


5.Packing of   G5 ZrO2 Ceramic Balls for Bearing

6.Fair

We have been to a lot fairs and the lastest fair is 2015 HANNOVER MESSE Gemany.

7.Information of company

Founded in 1963, Beijing Sinoma Synthetic Crystals Co, LTD.Is a hi-tech state enterprise, belongs to the China National Materials Group Co., Ltd. An excellent technical team headed by the state-level experts has built up,which provides a reliable guarantee for the continuous and rapid technological development.

Advanced ceramic Division (technical center of precision ceramic bearing) is mainly engaged in researching,manufacturing and developing advanced ceramic materials such as Si3N4, ZrO2, Al2O3 and so on.

Main Products:

1). Si3N4 and ZrO2 ceramic balls and rollers.

2). Si3N4 ceramic bearing rings.

3). The whole series full ceramic bearings, hybrid bearings, sliding bearings and shaft sleeves made by Si3N4 and ZrO2 materials.

4). Industrial wear parts made by Si3N4 and ZrO2 materials. According to customer’s application condition and drawings, varios precise and irregular ceramic parts can be designed and fabricated
