High E.A Arch Dock Rubber Fender

Nanjing Deers International Trade Co., Ltd.
High E.A Arch Dock Rubber Fender thumbnail-1
High E.A Arch Dock Rubber Fender photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Deers
Model Number:
V / Arch
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Any Port of China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name Deers
Model Number V / Arch

Specifications

1. High energy absorption and low reaction force
2. High stress concentration
3. Easy replacement firm for installation

V Type Rubber Fender

Super Arch A rubber fender(SA-A)





Features:



1. High energy absorption and low reaction force

2. High stress concentration

3. Easy replacement firm for installation

4. Easy to install and change

5. Tough and reliable design

6. Wide ranges of sizes and energy capacities

7. Bolted-on UHMW PE reduce the friction factor and shear force

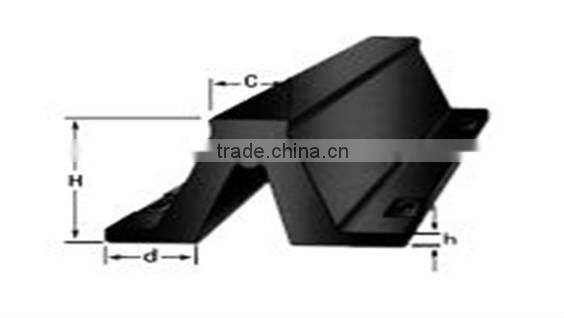

Specifications:





 High E.A Arch Dock Rubber Fender





Model

B(mm)

b(mm)

c(mm)

d(mm)

H (mm)

h (mm)

S(mm)

SA-A200H

400

320

145

128

200

30

260

SA-A250H

500

410

175

160

250

33

300

SA-A300H

600

490

225

196

300

33

300

SA-A400H

800

670

300

260

400

40

360

SA-A500H

1000

840

375

325

500

45

420

SA-A600H

1200

1010

450

390

600

54

480

SA-A800H

1600

1340

600

520

800

72

640

SA-A1000H

2000

1680

750

650

1000

90

640



Length 1000

1000L

Model

L1a(mm)

L2a(mm)

L3a(mm)

Weight(kg)

SA-A200H-1000L

1100

860

120

62

SA-A250H-1000L

1125

865

130

85

SA-A300H-1000L

1150

870

140

120

SA-A400H-1000L

1200

900

150

208

SA-A500H-1000L

1250

930

160

325

SA-A600H-1000L

1300

960

170

480

SA-A800H-1000L

1400

1040

180

875

SA-A1000H-1000L

1500

1100

200

1395



Length 1500

1500L

Model

L1b(mm)

L2b(mm)

L3b(mm)

Weight(kg)

SA-A200H-1500L

1600

680

120

91

SA-A250H-1500L

1625

685

132.5

130

SA-A300H-1500L

1650

685

140

175

SA-A400H-1500L

1700

700

150

300

SA-A500H-1500L

1750

715

160

460

SA-A600H-1500L

1800

730

170

680

SA-A800H-1500L

1900

770

180

1220

SA-A1000H-1500L

2000

800

200

1920



Length 2000

2000L

Model

L1c(mm)

L2c(mm)

L3c(mm)

Weight(kg)

SA-A200H-2000L

2100

620

120

122

SA-A250H-2000L

2125

620

132.5

170

SA-A300H-2000L

2150

625

137.5

230

SA-A400H-2000L

2200

635

147.5

390

SA-A500H-2000L

2250

645

157.5

605

SA-A600H-2000L

2300

655

167.5

880

SA-A800H-2000L

2400

680

180

1570

SA-A1000H-2000L

2500

700

200

2450



Length 2500

2500L

Model

L1d(mm)

L2d(mm)

L3d(mm)

Weight(kg)

SA-A200H-2500L

2600

785

122.5

151

SA-A250H-2500L

2625

790

127.5

225

SA-A300H-2500L

2650

790

140

315

SA-A400H-2500L

2700

800

150

535

SA-A500H-2500L

2750

840

160

810

SA-A600H-2500L

2800

820

170

1113

SA-A800H-2500L

2900

845

182.5

2045

SA-A1000H-2500L

3000

865

202.5

3200



Length 3000

3000L

Model

L1e(mm)

L2e(mm)

L3e(mm)

Weight(kg)

SA-A200H-3000H

3100

715

120

180

SA-A250H-3000H

3125

715

132.5

270

SA-A300H-3000H

3150

715

140

375

SA-A400H-3000H

3200

725

150

638

SA-A500H-3000H

3250

730

160

963

SA-A600H-3000H

3300

740

170

1380

SA-A800H-3000H

3400

760

180

2420

SA-A1000H-3000H

3500

775

200

4610



Length 3500

3500L

Model

L1d(mm)

L2d(mm)

L3d(mm)

Weight(kg)

SA-A200H-3500L

3600

672

120

210

SA-A250H-3500L

3625

673

130

310

SA-A300H-3500L

3650

674

140

435

SA-A400H-3500L

3700

680

150

740

SA-A500H-3500L

3750

686

160

1150

SA-A600H-3500L

3800

692

170

1595

SA-A800H-3500L

3900

708

180

4600

SA-A1000H-3500L

4000

720

200

6400







Our advantages:

Completely specifications and high level service timely for you.

Larger production capability and shorter lead time for you.

Equal quality as Trelleborg and lower price for you.

And OEM is also permitted for you.





Feel free to call ‘ 86 025 84507790 ’, our professional solution for you to solve any technical problems.

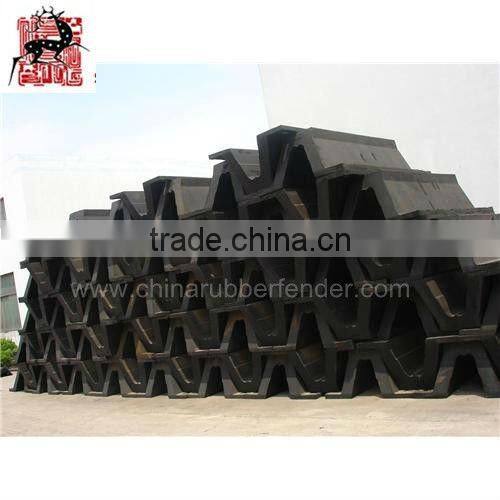

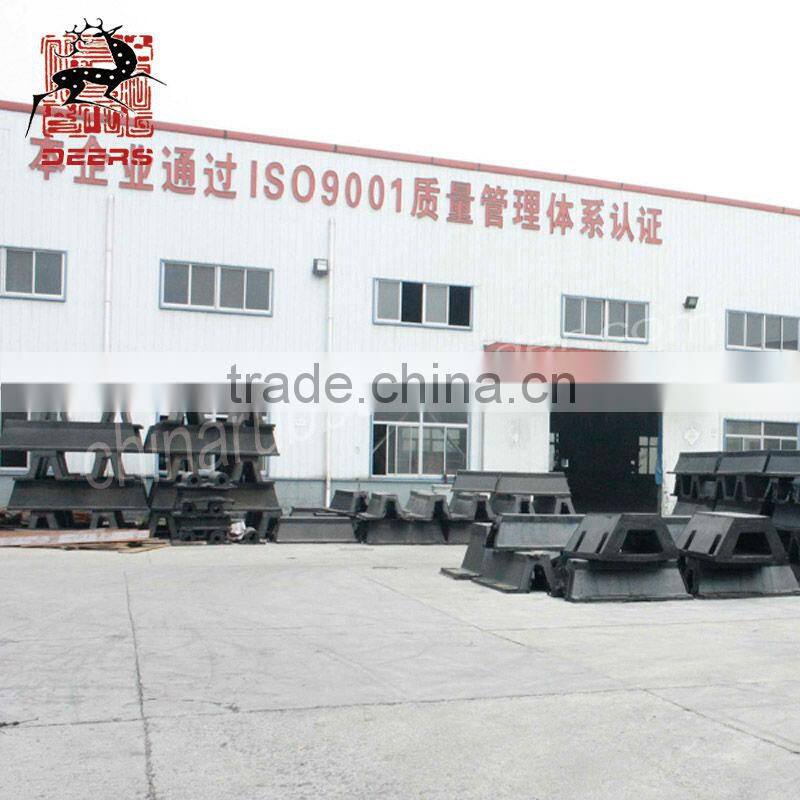

 Images:







High E.A Arch Dock Rubber Fender





High E.A Arch Dock Rubber Fender









High E.A Arch Dock Rubber Fender
