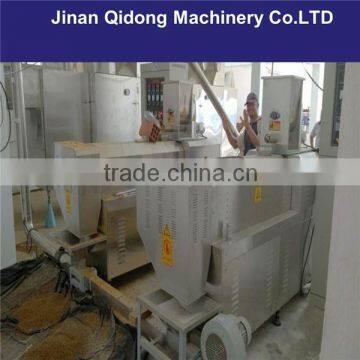

Hot sale dog food machine made in China

 Fish feed& dog food extruder machine

The extrusion machinery is composed of the feed system, pre-conditioner, extrusion system, power system, rotary cutter and the control system.

Technical parameters:

Detail:

A.    Pre-conditioner: The stainless steel three axle differential pre-conditioner performs the mixing and precooking processes. The amount of water and cooling temperature can be freely adjusted to increase the production capacity by 10-15%.

B.     Extrusion System: The inner sleeve, screws and screw inserts in the extrusion system use wear resistant alloy steel for effective abrasion reduction and to extend service life. With a combination of different processes, the screw is designed with a modular structure.

C.     Power System: The gearbox uses forced lubrication. It is equipped with an oil cooling system and axle temperature monitoring device in order to extend the lifespan of the bearings, gears and other transmission parts.

D.    Rotary Cutter: The X type four point positioning device is outfitted with a cantilever track which removes the need for a halt during production and allows the clearance between the cutter and mold to be directly adjusted.

E.    Control System: The main motor, peeling motor, and feeding motor all use frequency control.

Video:

Twin screw extruder: /v_show/id_XNTU0ODAyODY4.html

Dog food macking machine: /v_show/id_XNjI5MjUwMzQ0.html

Fish feed prcessing line: /v_show/id_XNjI1NzM3NTky.html

Feature:

1.Turnkey project

2.Basic dog/fish food formular supported

3.Automatic proportion and drying system

4.Puffed extrusion dog food machine

5. Steam heating method with pre-conditional system

6. Various shape and taste of pet food

7. Professional pet dog/cat ,fish food processing line design for clients

Samples of dry dog food :

Packing: Simple packing stretch film (Based on the customers' need adopt the wooden case or wooden pellets, etc.)

Transportation: According to the contract, our company could in charge for the shipment or you prepaid. We will choose the most timely and safe way transportation.

Pre-sale services:

1> Provide the free consultation of the equipment

2> Provide the standard device and the flow chart

3> According to the clients’ special requirement, offering the reasonable plan and free design helping

     to select the equipment.

4> Welcome to visit our factory or the domestic clients’ factory.

Services during the sales:

1> Help client design the factory and offering professional advice, free engineering drawing for the

     factory layout.

2> Inspect the machine before leaving the factory.

3> Oversea install and debug the equipment.

4> Train the first-line operator.

5> Provide the basic formula

After sale services:

1> 24 hours online service

2> Engineers available to service machinery overseas

3> Provide technical exchanging

 Jinan Qidong Machinery Co., Ltd. was established in 2003, has been committed to the twin-screw

feed extruder machinery research, development, design and manufacturing. Chief Engineer and Senior Engineer of China's first generation of twin-screw extrusion mechanical engineer by training. Has a mature design and manufacturing skills.

Our company's specialty products include pet (dog, cat) food processing equipment, floating and sinking aquatic feed processing equipment (for the production of a variety of fish feed, like tilapia, trout, catfish, ornamental fish, etc.). Over the years established many overseas factories. Welcome customers to visit our factory in China with the customer's plant.

Turnkey Project:

1>1-1.5 T/H Pet food processing line

2>4-5T/H Pet food processing line

Please kindly confirm the following information before we offer you the detailed information and quotation of fish feed extruder machine in time:

1. What kind of feed do you want to produce? Do you have production formula? If have,

would you mind to tell us the main ingredients in the formula? The percentage of each part?

2. The capacity you required?

3. Do you have the working plant? The construction and the area?

4. Do you need the whole processing line or just stand-alone device? Are you the new comer

in this field or have the experience for using the extruder?

5. Do you have any requirement for the automatic proportion system and manual system?

6. Do you have a boiler in your site?
