Suitable for Ration Packing Scale Optional Application Modes: Single-hopper-weighing Mode [Single-scale Mode] Double-hopper-weighing Mode [Double-scale Mode] and Bag-weighing Mode with Auto Bag-releasing or Manual Bag-releasing

 EMC design with high anti-jamming capability suitable for industrial environment

14-bit red LED digit display screen for English character and digit display

² Menu&Shortcut mode operation with key tone

² 24-bit High-precision and high-speed Σ-A/D conversion module with 1000000 internal code used and max sampling frequency 800Hz

² Special filtering algorithm for ensuring the weighing stability and accuracy when there is strong vibration on the load receptor and the rapid response capability when the weight signal changes

² Max Connection Quantity: 4 Loadcells (350Ω)

² Data Calibration and Load Calibration available

² Auto-locking Key-locking Key-unlocking Digital Setting&Calibration and I/O Testing functions available

² 6 Normally open switch inputs [DI] and 8 normally open transistor switch outputs [DO]

² Optional ‘Fast/Medium/Slow Feeding’ DOs for feeding control

² 1 Optional and definable analog signal AO[4~20mA] for weight signal output or ‘Fast/Medium /Slow Feeding’ control

² Optional ‘Fall Value Auto Correction’ function

² Optional ‘Auto Pause while Deviation Alarming’ function

² Optional ‘Target Batch & Target Totalized Weight Control’ function [With Target Batch Finished or Target Totalized Weight Finished the packing process will stop automatically]

² Optional RS232 or RS485 communication ports for linking to IPC/PLC and remote display terminal

² With the multitasking mode the weighing&control process will not be interrupted by parameter setting and the other operations

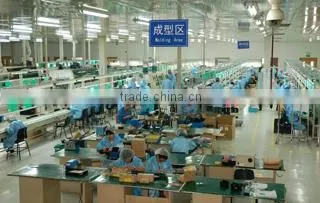

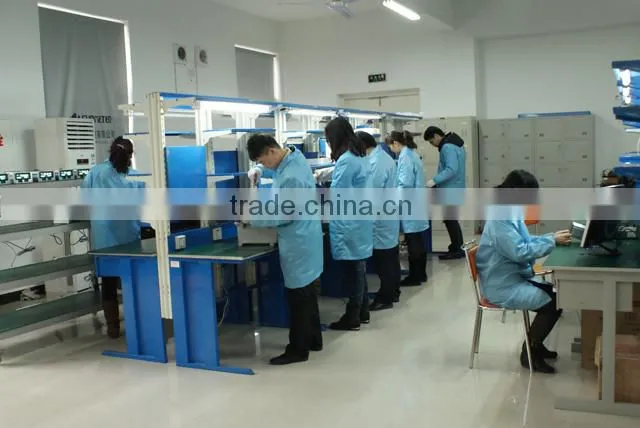

OUR WORKSHOP &ASSEMBLY LINE
